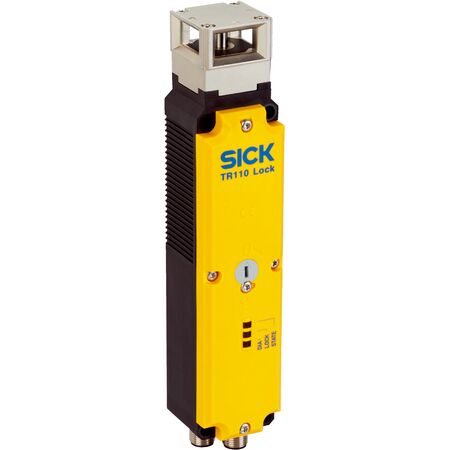

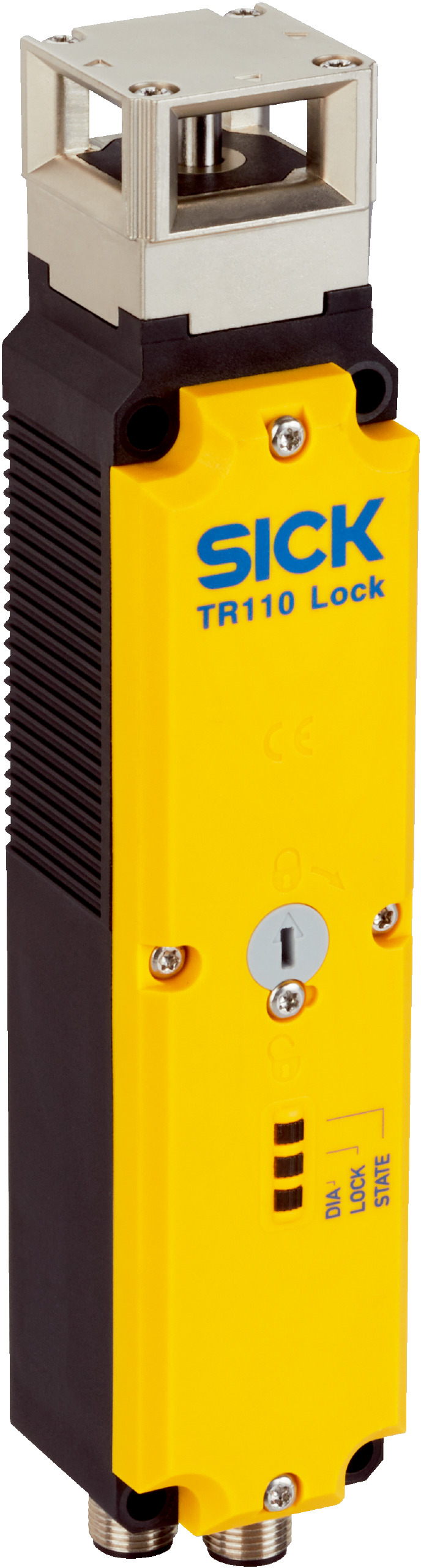

RFID Safety Lock TR110-SLUCAB0 | Power to Lock | High Locking Force 3900N | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SLUCAB0 is designed for industrial safety interlocking, featuring a power to lock principle and high locking forces up to 3,900 N. With SIL 3 safety integrity and IP67/IP69K ratings, it’s perfect for automation systems and harsh environments, ensuring reliable performance and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Locking force with straight actuator: 3,900 N (EN ISO 14119)
- Locking force with angled actuator: 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Connection type: Plug connector, M12, 8-pin and 5-pin
- Coupling nut material: Brass
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage Ui: 50 V
- Rated impulse withstand voltage Uimp: 500 V
- Supply voltage sensor and magnet: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption sensor: 40 mA
- Power consumption magnet: 400 mA (6 W)
- Type of output: Self-monitoring semiconductor outputs (OSSDs)
- Response time: ≤ 260 ms
- Release time: 150 ms
- Switch-on time: 5 s
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP67 and IP69K
- Ambient operating temperature: –20 °C to +50 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 40mm x 120mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to lock locking principle
- High locking forces: up to 3,900 N with straight actuator
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) for safety
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicator
- High mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity level
- Environments needing robust locking force and safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient electronics
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SLUCAB0 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications requiring high locking force and safety integrity.
