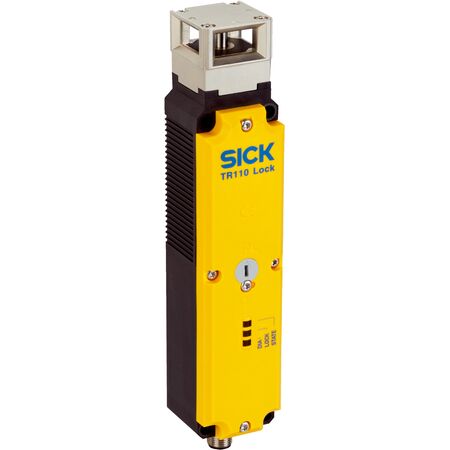

RFID Safety Lock TR110-SLUFL00 | Power to Lock | SIL 3 Compliance | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SLUFL00 is designed for industrial safety interlocking, featuring a power to lock mechanism and high locking forces up to 3,900 N. With SIL 3 safety integrity and IP67/IP69K ratings, it ensures reliable operation in harsh environments, making it ideal for access control in hazardous areas and automation systems requiring high safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Locking force with straight actuator: 3,900 N (EN ISO 14119)
- Locking force with angled actuator: 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.1 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Brass
- Display elements: LEDs with diagnostics indicator and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage: 50 V
- Rated impulse withstand voltage: 500 V
- Supply voltage sensor: 24 V DC (20.4 V DC ... 27.6 V DC)
- Supply voltage magnet: 24 V DC (20.4 V DC ... 26.4 V DC)
- Power consumption sensor: 40 mA
- Power consumption magnet: 400 mA (6 W)
- Type of output: Self-monitoring semiconductor outputs (OSSDs), p-switching, short-circuit protected
- Response time: ≤ 260 ms
- Release time: 400 ms
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67, IP69K
- Ambient operating temperature: –20 °C to +55 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle for secure identification
- Power to lock locking principle
- Uniquely coded actuator for high security
- High locking forces up to 3,900 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with diagnostics
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicator
- Robust mechanical design with zinc diecast switch head and glass-fiber reinforced thermoplastic housing
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and compliant with relevant safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption electronics enhance energy efficiency
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SLUFL00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
