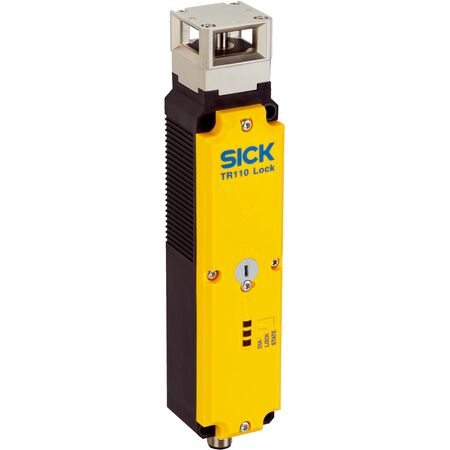

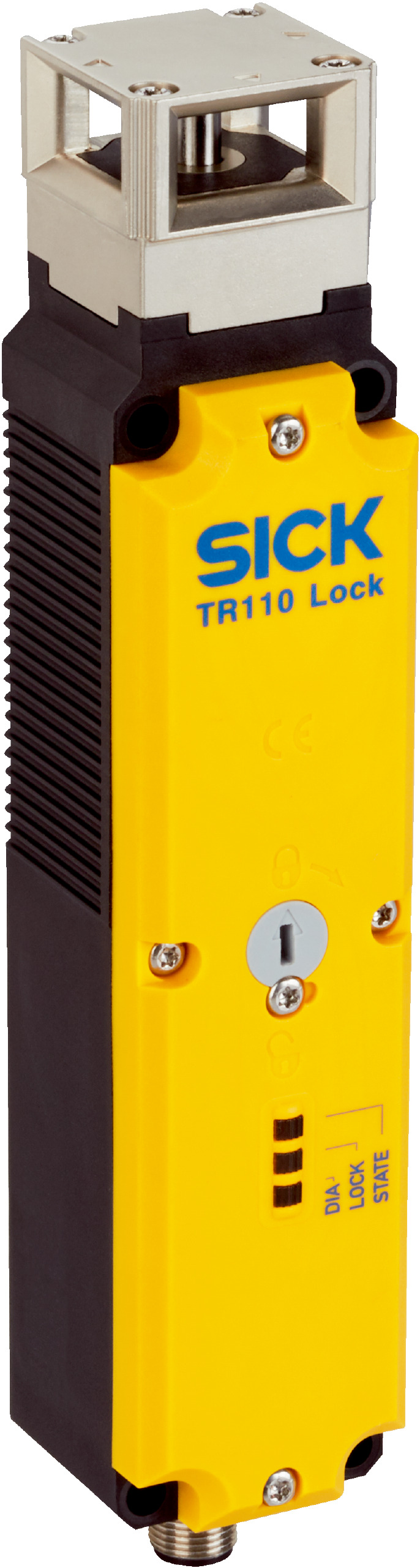

RFID Safety Lock TR110-SLUFLB0 | Power to Lock | SIL 3 Safety Rating | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SLUFLB0 is designed for industrial safety interlocking, featuring a power to lock mechanism and high locking forces up to 3,900 N. With a SIL 3 safety integrity level and IP67/IP69K enclosure ratings, it ensures reliable performance in harsh environments. Ideal for access control in hazardous areas and safety monitoring in automated production lines, this lock is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Locking force with straight actuator: 3,000 N (EN ISO 14119)
- Locking force with angled actuator: 1,100 N (EN ISO 14119)
- Locking force with hinged actuator: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Brass
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage Ui: 50 V
- Rated impulse withstand voltage Uimp: 500 V
- Supply voltage: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption sensor: 40 mA
- Power consumption magnet: 400 mA, 6 W
- Type of output: Self-monitoring semiconductor outputs (OSSDs)
- Response time: ≤ 260 ms
- Release time: 150 ms
- Switch-on time: 5 s
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP67, IP69K
- Operating temperature: –20 °C to +50 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 30mm x 100mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to lock locking principle
- High locking forces up to 3,900 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 safety rating
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- IP67 and IP69K rated enclosure for harsh environments
- LED status display with diagnostics indicator
- High mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and compliant with relevant safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety monitoring in automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TR110-SLUFLB0 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
