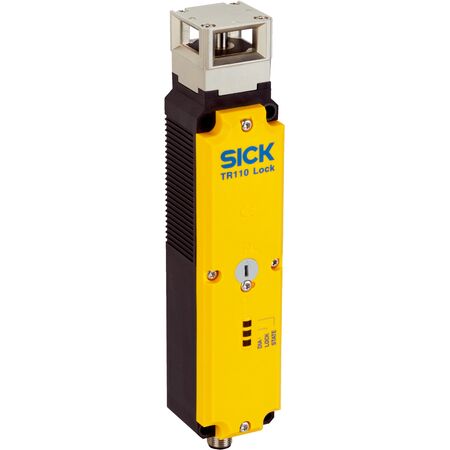

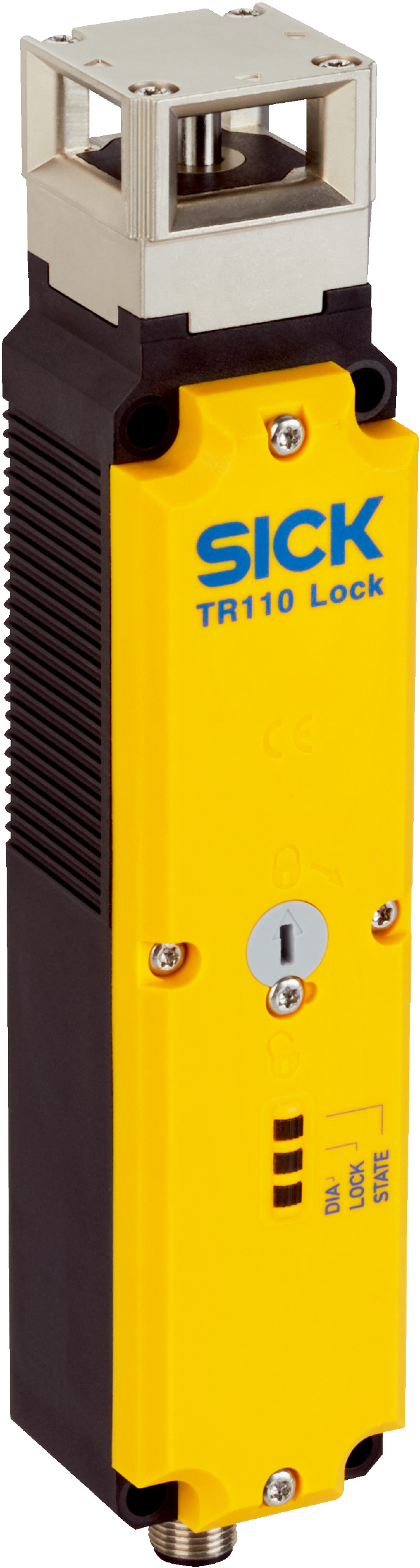

RFID Safety Lock TR110-SLUSAB0 | Power to Lock Mechanism | High Locking Force up to 3900 N | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SLUSAB0 is designed for industrial safety interlocking, featuring a power to lock mechanism and high locking forces of up to 3,900 N. With SIL 3 safety integrity and IP67/IP69K ratings, it’s perfect for automation systems and access control in hazardous areas. Built for durability and efficiency, this lock ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Locking force with straight actuator: 3,900 N (EN ISO 14119)
- Locking force with angled actuator: 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Actuation frequency: ≤ 0.5 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Connection type: Plug connector, M12, 8-pin
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage Ui: 50 V
- Rated impulse withstand voltage Uimp: 500 V
- Supply voltage sensor: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption magnet: 6 W
- Response time: ≤ 260 ms
- Release time: 150 ms
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67, IP69K
- Operating temperature: –20 °C to +50 °C
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to lock mechanism
- High locking forces: up to 3,900 N with straight actuator
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicator
- Robust mechanical design with zinc diecast switch head and glass-fiber reinforced thermoplastic housing
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and compliant with relevant safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient electronics
- Complies with RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TR110-SLUSAB0 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
