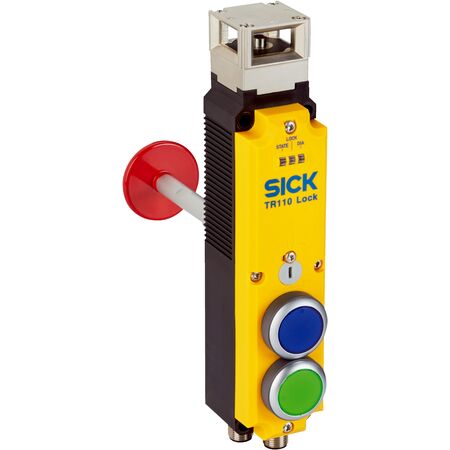

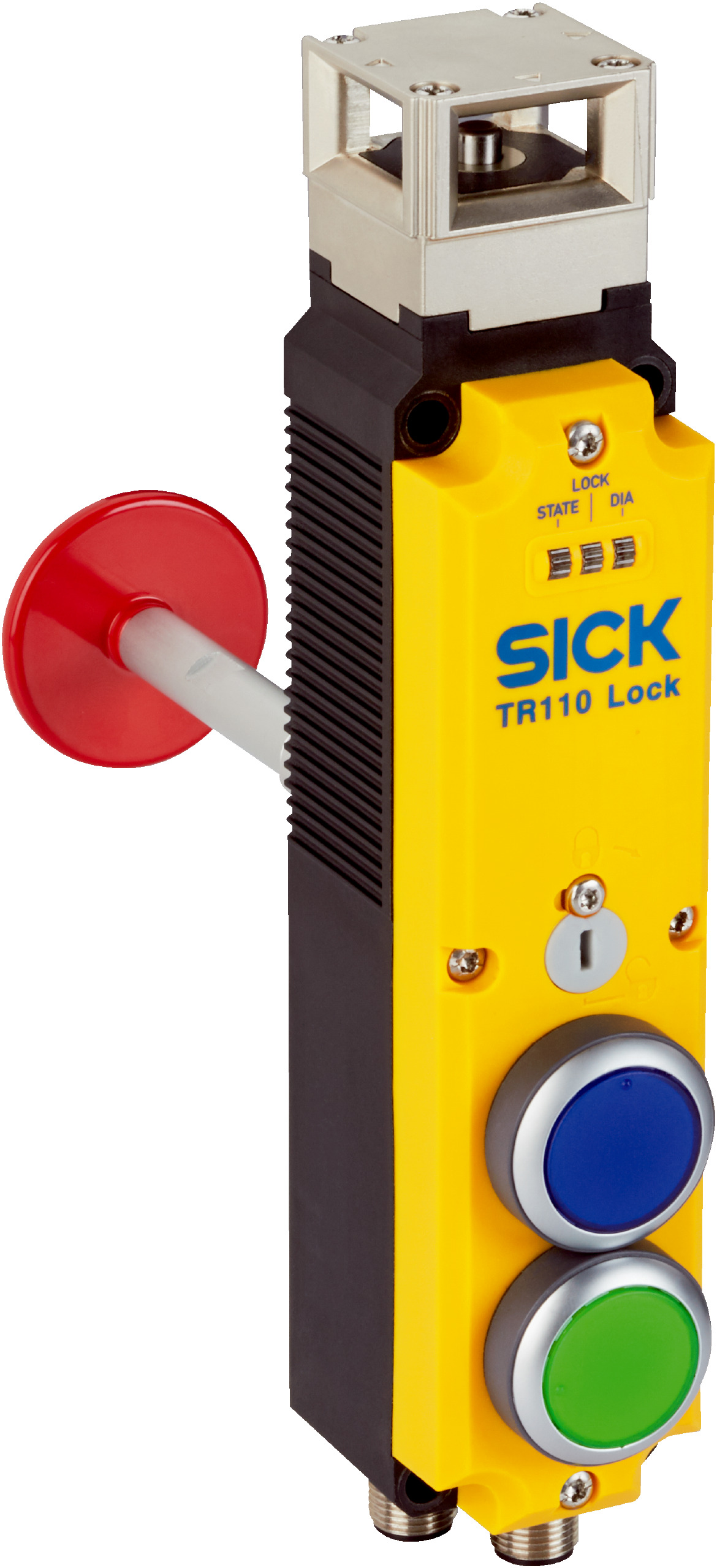

RFID Safety Lock TR110-SRU2BB1 | Power to Release Mechanism | High Locking Force up to 3900 N | IP65 Rated Enclosure | by SICK
The RFID Safety Lock TR110-SRU2BB1 is designed for industrial safety interlocking, featuring a power to release locking mechanism and high locking forces up to 3,900 N. Ideal for access control in hazardous areas, this lock ensures safety with its SIL 3 integrity level and robust IP65 rated enclosure, making it perfect for automated production lines and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force with straight actuator: 3,900 N (EN ISO 14119)
- Locking force with angled actuator: 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Force against which unlocking is possible: ≤ 20 N
- Actuation frequency: ≤ 0.5 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Connection type: Plug connector, M12, 8-pin and 5-pin
- Coupling nut material: Brass
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage: 50 V
- Rated impulse withstand voltage: 500 V
- Supply voltage sensor and magnet: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption sensor: 40 mA
- Power consumption magnet: 400 mA
- Pushbutton (LED) current: 10 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Response time: ≤ 260 ms
- Release time: 150 ms
- Switch-on time: 5 s
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- EMC: EN IEC 60947-5-3
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle for secure identification
- Power to release locking mechanism
- Uniquely coded for high security
- High locking forces up to 3,900 N depending on actuator type
- Illuminable pushbuttons for easy operation
- Escape release function included
- Self-monitoring semiconductor outputs (OSSDs) for safety
- High safety integrity level SIL 3 and Category 4 compliance
- Robust IP65 rated enclosure for harsh environments
- LED diagnostics and status display
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety interlock systems and electrical safety standards to ensure compliance and proper operation.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety monitoring in automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption electronics
- Complies with RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TR110-SRU2BB1 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
