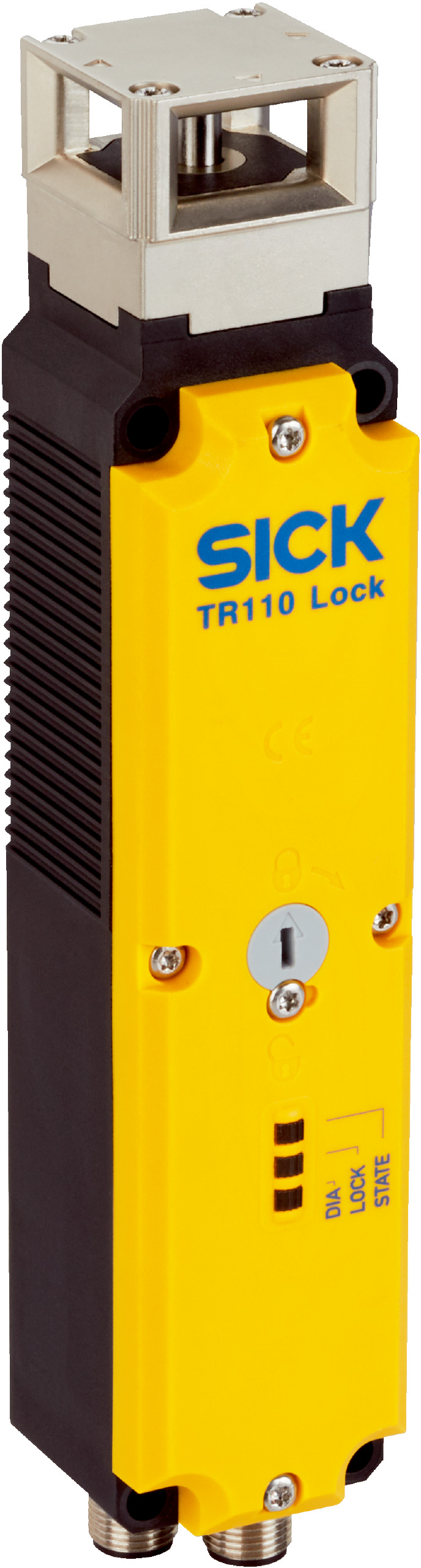

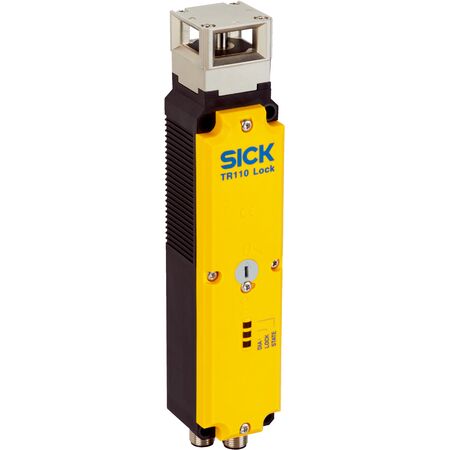

RFID Safety Lock TR110-SRUCAB0 | Power to Release | High Locking Force up to 3900 N | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SRUCAB0 is designed for industrial safety interlocking, featuring a power to release locking principle and high locking forces up to 3,900 N. With SIL 3 safety integrity and IP67/IP69K ratings, it's perfect for automation systems and access control in hazardous areas, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force with straight actuator: 3,900 N (EN ISO 14119)
- Locking force with angled actuator: 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Actuation frequency: ≤ 0.5 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Connection type: Plug connector, M12, 8-pin and 5-pin
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Supply voltage: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption magnet: 6 W
- Response time: ≤ 260 ms
- Release time: 150 ms
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Dimensions (H x L x W): 30mm x 100mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking principle
- High locking forces: up to 3,900 N with straight actuator
- Safety integrity level SIL 3 and Category 4 safety rating
- Self-monitoring semiconductor outputs (OSSDs) for safety
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicator
- Robust mechanical design with zinc diecast switch head and glass-fiber reinforced thermoplastic housing
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety interlock systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption enhances energy efficiency
- Compliant with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TR110-SRUCAB0 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
