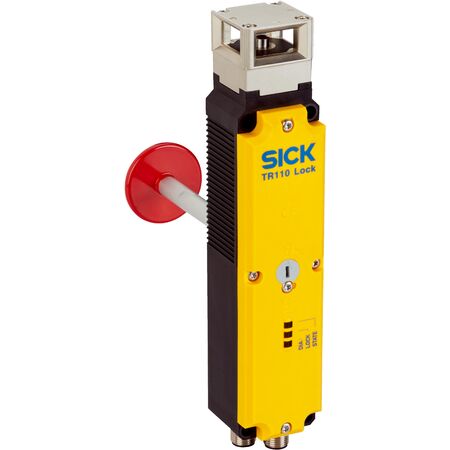

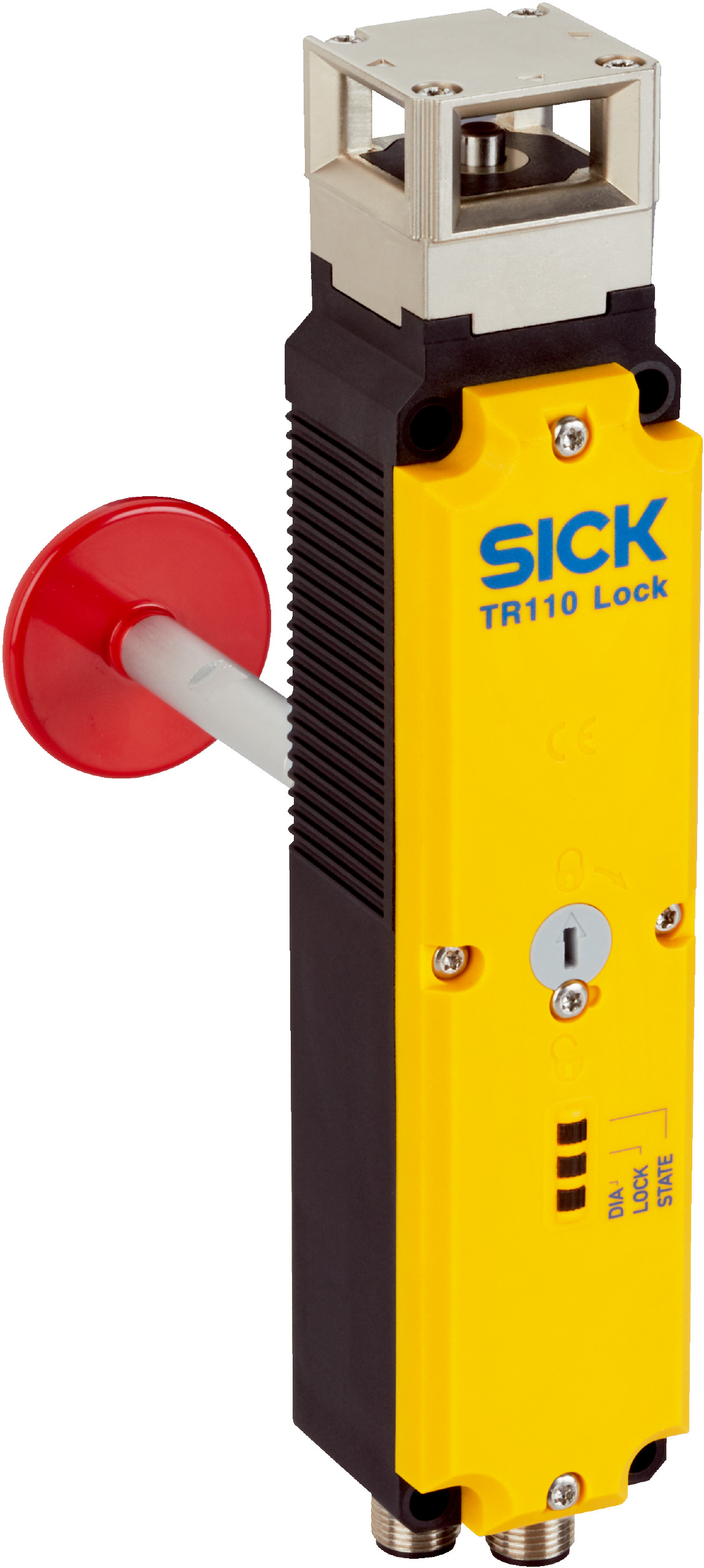

RFID Safety Lock TR110-SRUCAB1 | Up to 3,900 N Locking Force | SIL 3 Safety Rating | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SRUCAB1 is designed for industrial safety interlocking, featuring a powerful locking force of up to 3,900 N and a SIL 3 safety integrity level. Ideal for access control in hazardous areas and safety monitoring in automated production lines, this robust lock ensures reliable operation with its IP67 and IP69K rated enclosure, making it perfect for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force with straight actuator: up to 3,900 N (EN ISO 14119)
- Locking force with angled actuator: up to 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: up to 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Actuation frequency: ≤ 0.5 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: 4 (EN ISO 14119)
- Connection type: Plug connector, M12, 8-pin and 5-pin
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage: 50 V
- Rated impulse withstand voltage: 500 V
- Supply voltage sensor and magnet: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption magnet: 6 W
- Response time: ≤ 260 ms
- Release time: 150 ms
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 40mm x 120mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking principle
- High locking forces up to 3,900 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 safety rating
- Escape release function included
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicator
- Robust mechanical design with zinc diecast switch head and glass-fiber reinforced thermoplastic housing
- Rated for 1 million switching cycles
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety monitoring in automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Complies with RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SRUCAB1 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
