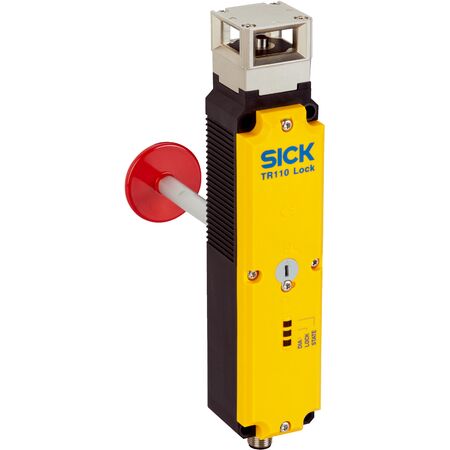

RFID Safety Lock TR110-SRUFL01 | Power to Release Mechanism | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SRUFL01 features a power to release locking mechanism and high locking forces up to 3,900 N, making it ideal for industrial safety interlocking and access control. With SIL 3 safety integrity and IP67/IP69K ratings, this lock is built for harsh environments, ensuring reliable performance in automated production lines and hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force with straight actuator: 3,000 N (EN ISO 14119)
- Locking force with angled actuator: 1,100 N (EN ISO 14119)
- Locking force with hinged actuator: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.1 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Safe state on fault: At least one OSSD off
- Connection type: Plug connector, M12, 8-pin
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage: 50 V
- Rated impulse withstand voltage: 500 V
- Supply voltage sensor: 24 V DC (20.4 V DC ... 27.6 V DC)
- Supply voltage magnet: 24 V DC (20.4 V DC ... 26.4 V DC)
- Power consumption sensor: 40 mA
- Power consumption magnet: 400 mA / 6 W
- Response time: ≤ 260 ms
- Release time: 400 ms
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking mechanism
- High locking forces up to 3,900 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- Escape release function included
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicators
- Robust mechanical design with zinc diecast switch head and glass-fiber reinforced thermoplastic housing
- M12, 8-pin plug connector with brass coupling nut
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety interlocking for machinery and access control
- Safety monitoring in automated production lines
- Use in hazardous areas requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Compliant with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SRUFL01 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
