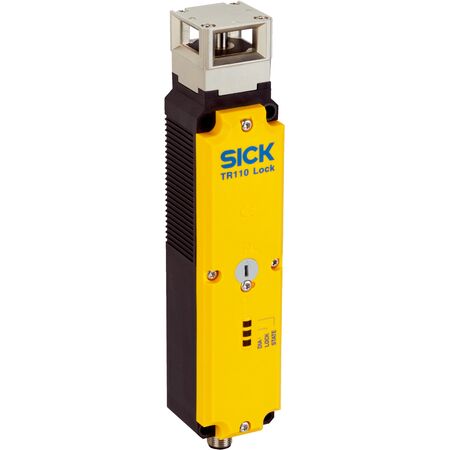

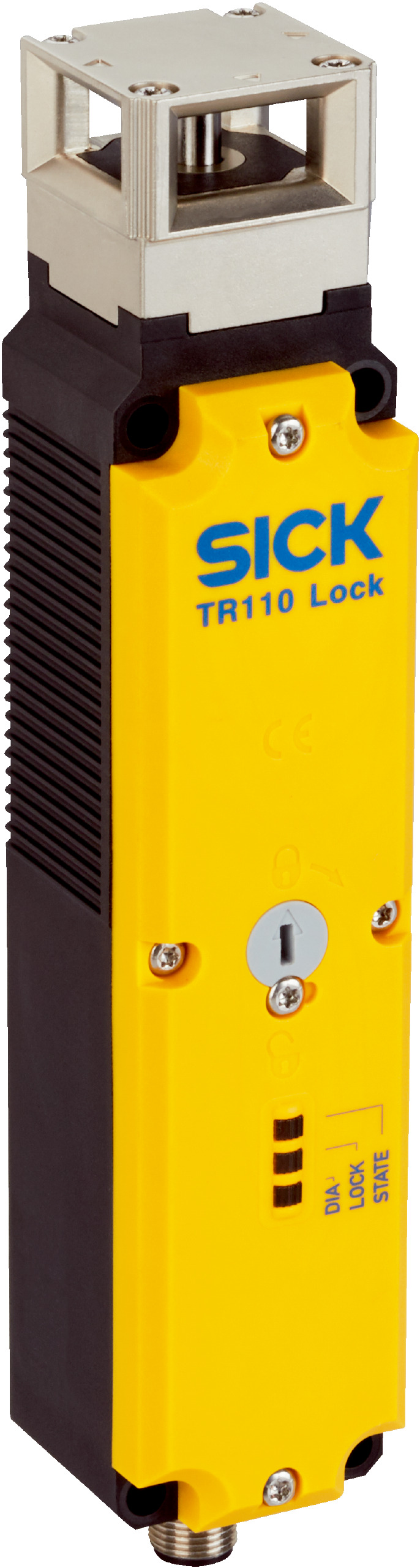

RFID Safety Lock TR110-SRUFLB0 | High Locking Force up to 3900 N | SIL 3 Compliance | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SRUFLB0 is designed for industrial safety interlocking, featuring a high locking force of up to 3900 N and SIL 3 compliance for enhanced safety. Ideal for access control in hazardous areas, this robust lock ensures reliable operation in harsh environments with its IP67 and IP69K rated enclosure, making it perfect for automation systems requiring high safety integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force with straight actuator: 3,900 N (EN ISO 14119)
- Locking force with angled actuator: 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Connection type: Plug connector, M12, 8-pin
- Protection class: III (IEC 61140)
- Enclosure rating: IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Mechanical life: 1 million switching cycles
- Power consumption magnet: 6 W
- Response time: ≤ 260 ms
- Release time: 150 ms
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking principle
- High locking forces up to 3,900 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with diagnostics
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicator
- Robust zinc diecast switch head and glass-fiber reinforced thermoplastic housing
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and compliant with relevant safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption electronics enhance energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SRUFLB0 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
