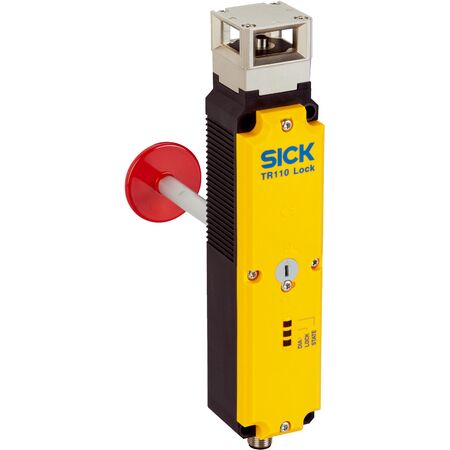

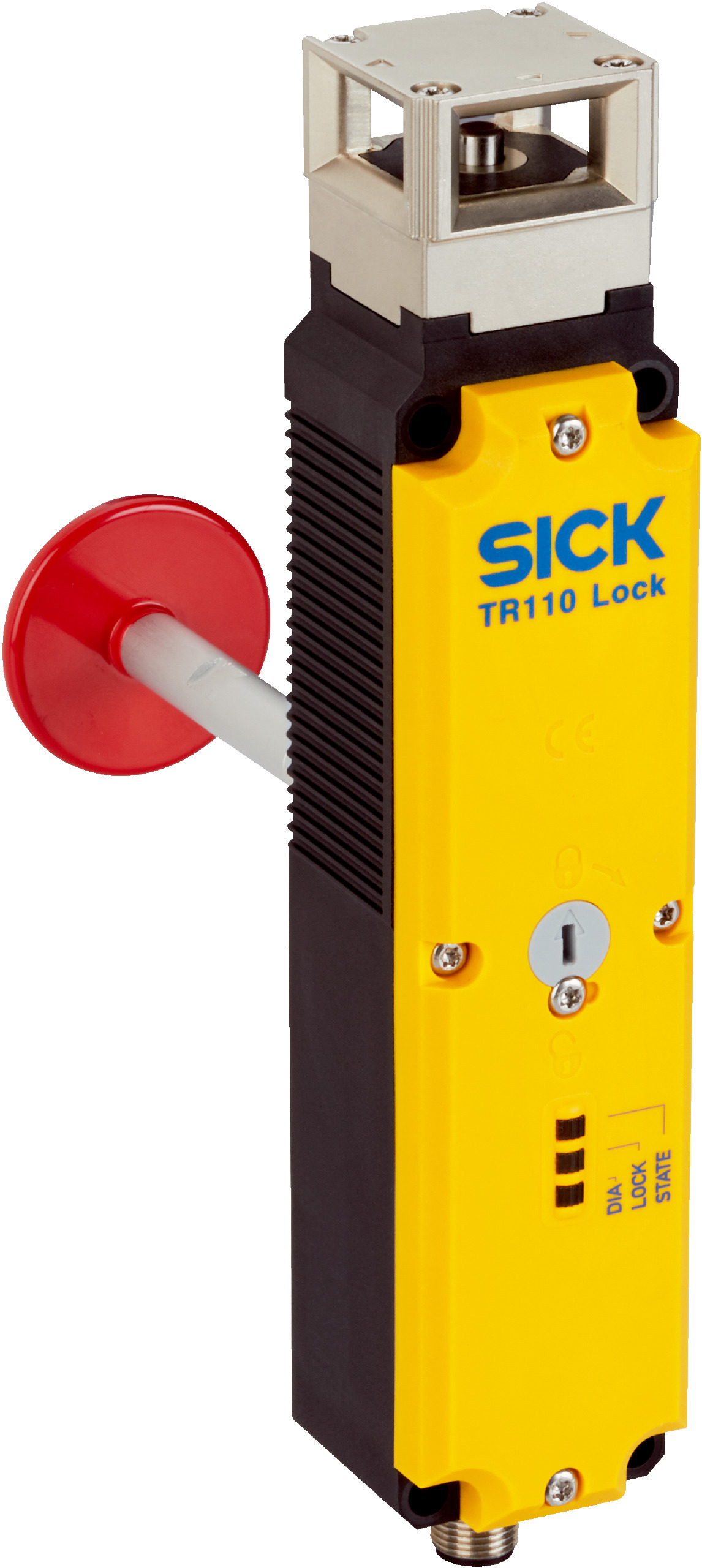

RFID Safety Lock TR110-SRUFLB1 | Power to Release Mechanism | High Locking Force up to 3,900 N | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SRUFLB1 is designed for industrial safety interlocking, featuring a power to release locking mechanism and high locking forces up to 3,900 N. With a SIL 3 safety integrity level and IP67/IP69K rated enclosure, it ensures reliable performance in harsh environments. Ideal for automated production lines and hazardous areas, this lock provides self-monitoring outputs and an escape release function for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force with straight actuator: 3,000 N (EN ISO 14119)
- Locking force with angled actuator: 1,100 N (EN ISO 14119)
- Locking force with hinged actuator: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Force against which unlocking is possible: ≤ 20 N
- Actuation frequency: ≤ 0.5 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Safe state in fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Brass
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage Ui: 50 V
- Rated impulse withstand voltage Uimp: 500 V
- Supply voltage: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption magnet: 6 W
- Response time: ≤ 260 ms
- Release time: 150 ms
- Switch-on time: 5 s
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67, IP69K
- Operating temperature: –20 °C to +55 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking mechanism
- High locking forces up to 3,900 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 safety rating
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- Escape release function included
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicators
- Plug connector M12, 8-pin with brass coupling nut
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety interlocking for machinery and access control
- Safety monitoring in automated production lines
- Use in hazardous areas requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long mechanical life reduce waste and replacement frequency
- Low power consumption enhances energy efficiency in safety systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SRUFLB1 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
