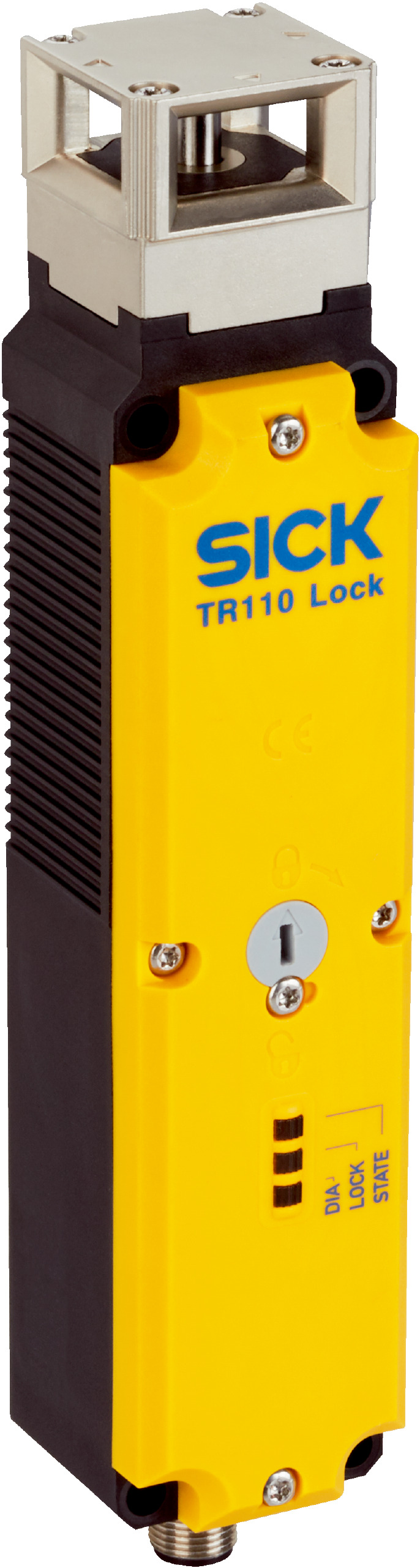

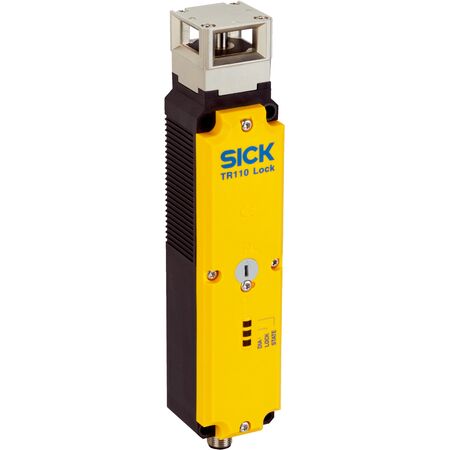

RFID Safety Lock TR110-SRUSA00 | Power to Release | High Locking Force up to 3900 N | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SRUSA00 is designed for industrial safety interlocking, featuring a power to release locking principle and high locking forces up to 3,900 N. With SIL 3 safety integrity and IP67/IP69K ratings, it’s perfect for access control in hazardous areas and automation systems requiring high safety standards. Built for durability and efficiency, this lock ensures reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force with straight actuator: 3,900 N (EN ISO 14119)
- Locking force with angled actuator: 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Force against which unlocking is possible: ≤ 20 N
- Actuation frequency: ≤ 0.5 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.1 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Brass
- Display elements: LEDs with diagnostics indicator and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage Ui: 50 V
- Rated impulse withstand voltage Uimp: 500 V
- Supply voltage sensor: 24 V DC (20.4 V DC ... 27.6 V DC)
- Supply voltage magnet: 24 V DC (20.4 V DC ... 26.4 V DC)
- Power consumption sensor: 40 mA
- Power consumption magnet: 400 mA (6 W)
- Type of output: Self-monitoring semiconductor outputs (OSSDs)
- Safety outputs: 1 mA ... 150 mA
- Application diagnostic outputs: 1 mA ... 50 mA
- Response time: ≤ 260 ms
- Release time: 400 ms
- Switch-on time: 1 s
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 and IP69K
- Ambient operating temperature: –20 °C ... +55 °C
- Vibration resistance: 10 Hz ... 55 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 30mm x 100mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking principle
- High locking forces up to 3,900 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicator
- Robust mechanical design with zinc diecast switch head and glass-fiber reinforced thermoplastic housing
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption electronics enhance energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SRUSA00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
