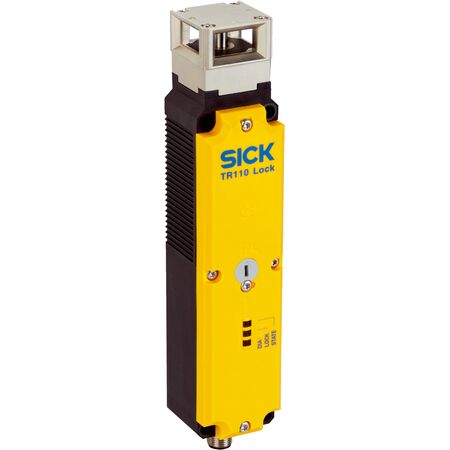

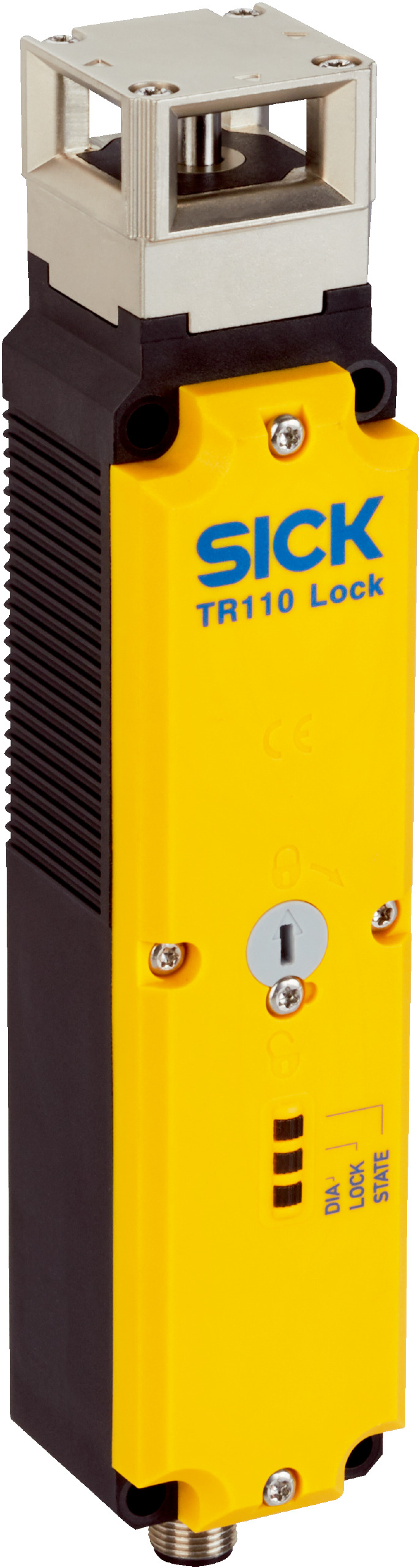

RFID Safety Lock TR110-SRUSAB0 | Up to 3,900 N Locking Force | SIL 3 Safety Level | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SRUSAB0 is designed for industrial safety interlocking, featuring a powerful locking force of up to 3,900 N and a SIL 3 safety integrity level. Ideal for automation systems and machinery access control, this lock ensures robust safety monitoring with its IP67 and IP69K rated enclosure, making it perfect for harsh environments. With a mechanical life of 1 million switching cycles, it’s built for durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force with straight actuator: up to 3,900 N (EN ISO 14119)
- Locking force with angled actuator: up to 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: up to 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Connection type: Plug connector, M12, 8-pin
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Supply voltage: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption magnet: 6 W
- Response time: ≤ 260 ms
- Release time: 150 ms
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking principle
- High locking forces: up to 3,900 N with straight actuator
- Safety integrity level SIL 3 and Category 4 (EN ISO 13849)
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- IP67 and IP69K rated enclosure for harsh environments
- LED status display and diagnostics indicator
- Mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety interlock systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity level
- Environments needing robust locking force and safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient electronics
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SRUSAB0 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
