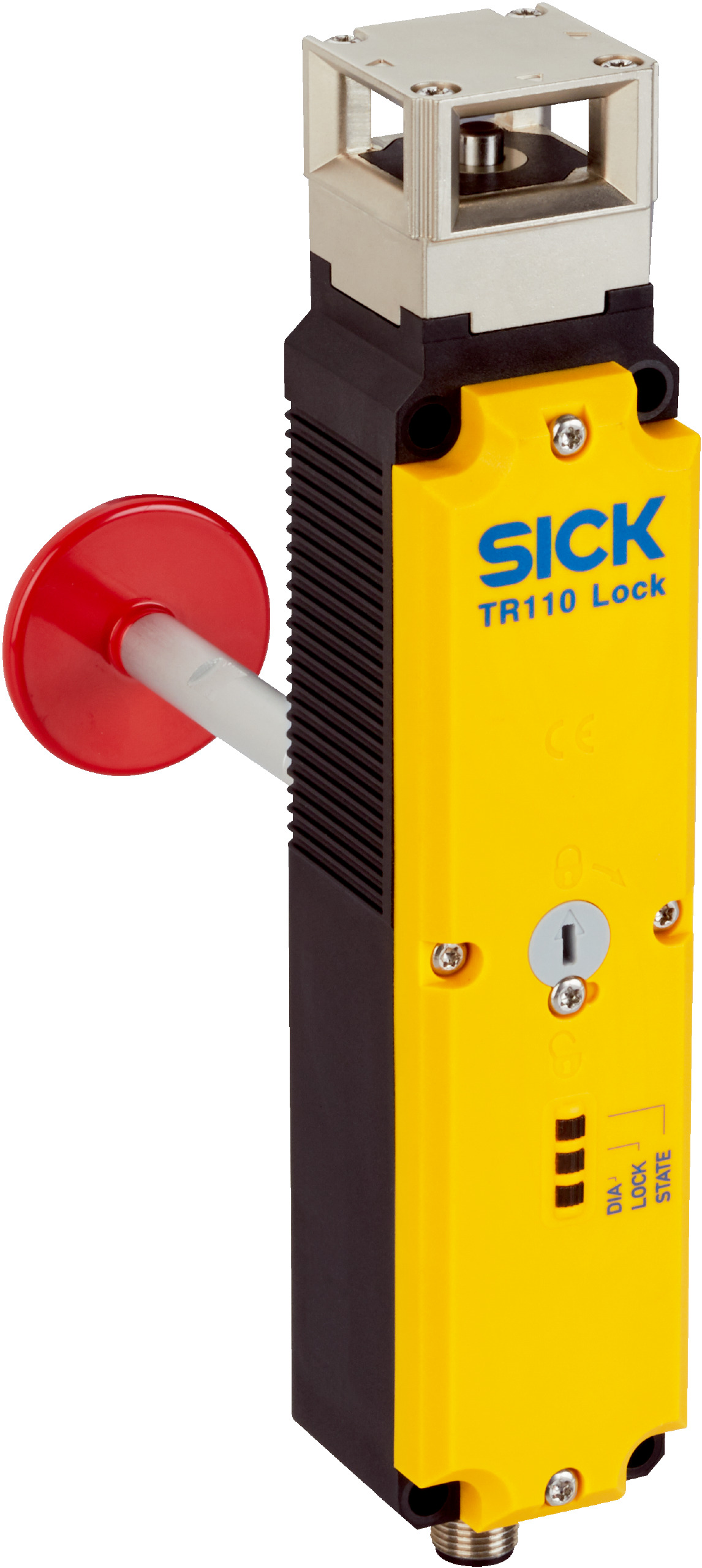

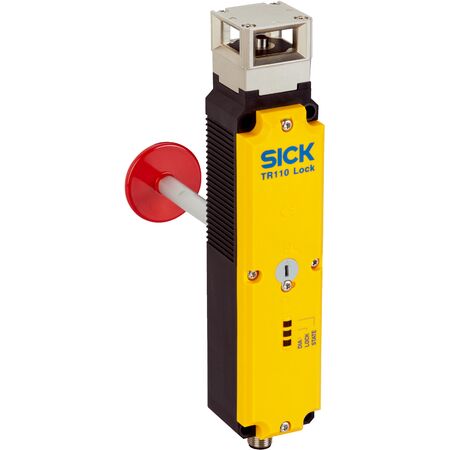

RFID Safety Lock TR110-SRUSAB1 | Power to Release | SIL 3 Compliance | IP67 & IP69K Rated | by SICK
The RFID Safety Lock TR110-SRUSAB1 is designed for industrial safety interlocking, featuring a power to release locking principle and high locking forces up to 3,900 N. With SIL 3 safety integrity level and IP67/IP69K rated enclosure, it’s perfect for access control in hazardous areas and automated production lines, ensuring maximum safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force with straight actuator: up to 3,900 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Actuation frequency: ≤ 0.5 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Connection type: Plug connector, M12, 8-pin
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Supply voltage: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption magnet: 6 W
- Response time: ≤ 260 ms
- Release time: 150 ms
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Dimensions (H x L x W): 40mm x 120mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking principle
- High locking forces: up to 3,900 N with straight actuator
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- Escape release function included
- LED status display and diagnostics indicator
- IP67 and IP69K rated enclosure for harsh environments
- Robust mechanical design with zinc diecast switch head and glass-fiber reinforced thermoplastic housing
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and compliant with relevant safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas requiring high safety standards
- Use in automated production lines and safety gate monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient electronics
- Complies with RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SRUSAB1 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
