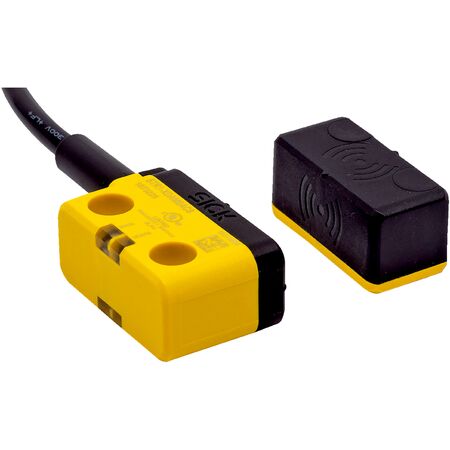

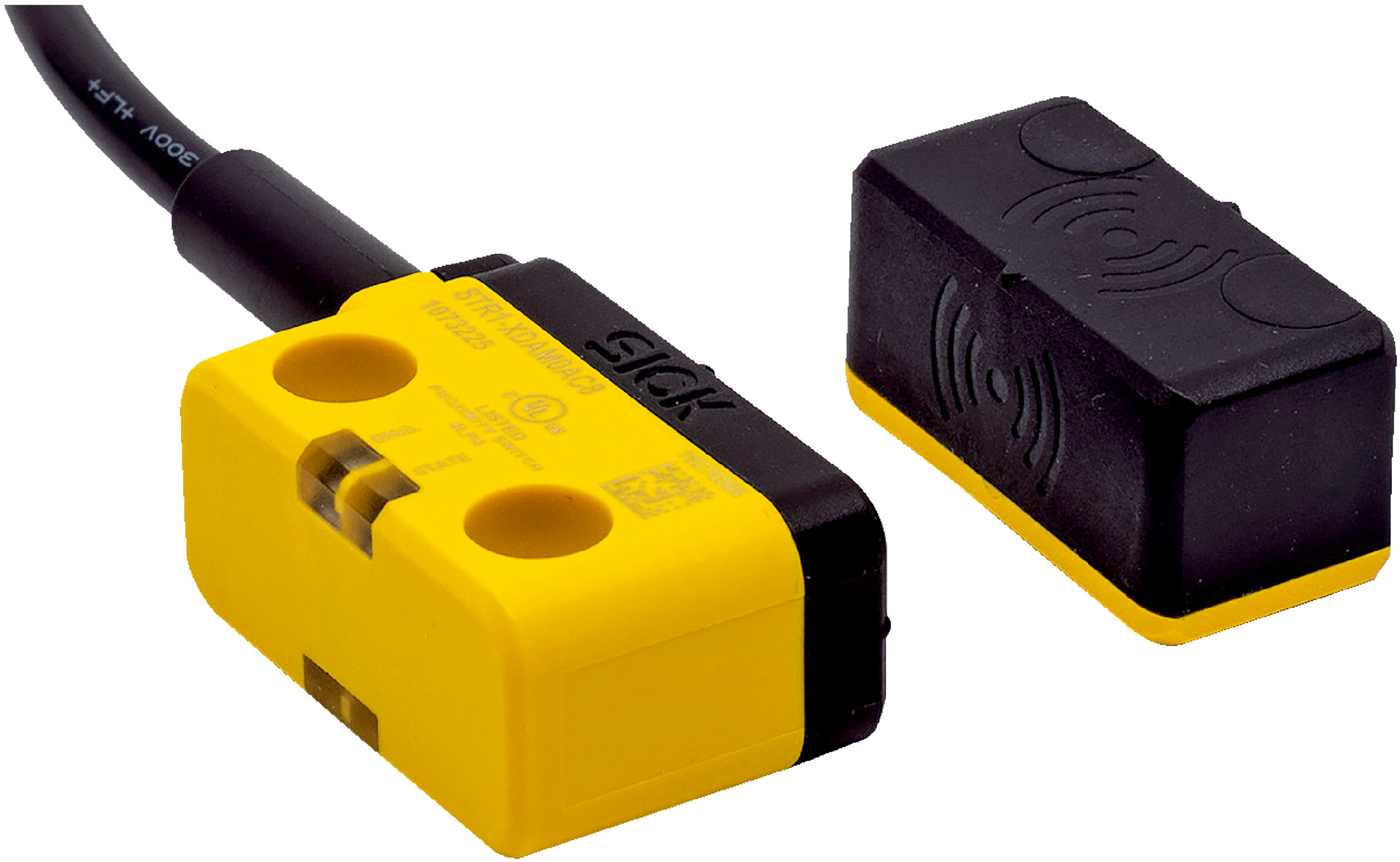

RFID Safety Sensor with Actuator | SIL 3 Compliance | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor with Actuator is designed for industrial safety systems, featuring SIL 3 compliance and IP67/IP69K ratings for harsh environments. With two safe outputs, a 10 mm assured switch-on distance, and a robust VISTAL® housing, it ensures high reliability and safety in automation applications. Ideal for machine safety monitoring, this sensor supports multiple actuation directions and offers unique coding for enhanced security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- Sensor with actuator using RFID principle
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance of 10 mm and switch off distance of 25 mm
- Three active sensor surfaces (top, left and right sides)
- Five actuation directions supported
- Uniquely coded for high security
- Safety integrity level SIL 3 and Category 4 compliance
- Performance level PL e with a mean probability of dangerous failure per hour of 5.21 x 10^-9
- High actuator coding level and safe state in fault condition
- Cable with M8, 8-pin plug connection with 0.2 m cable length
- Protection class III and Class 2 cULus classification
- Operating voltage 24 V DC with 50 mA power consumption
- Self-monitoring semiconductor outputs (OSSDs) with ≤ 100 mA output current
- Response time 40 ms, release time 100 ms, risk time 80 ms
- Housing made of VISTAL® material
- Enclosure rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -30 °C to +70 °C
- Vibration and shock resistant according to IEC standards
- Comprehensive EMC compliance and multiple international certifications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and high protection rating reduce waste and replacement frequency
- Low power consumption of 50 mA supports energy efficiency
- Robust design minimizes environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK STR1-SACU0BC8 RFID Safety Sensor with Actuator is available for immediate purchase. Ideal for industrial safety and automation applications requiring high integrity and reliability.
