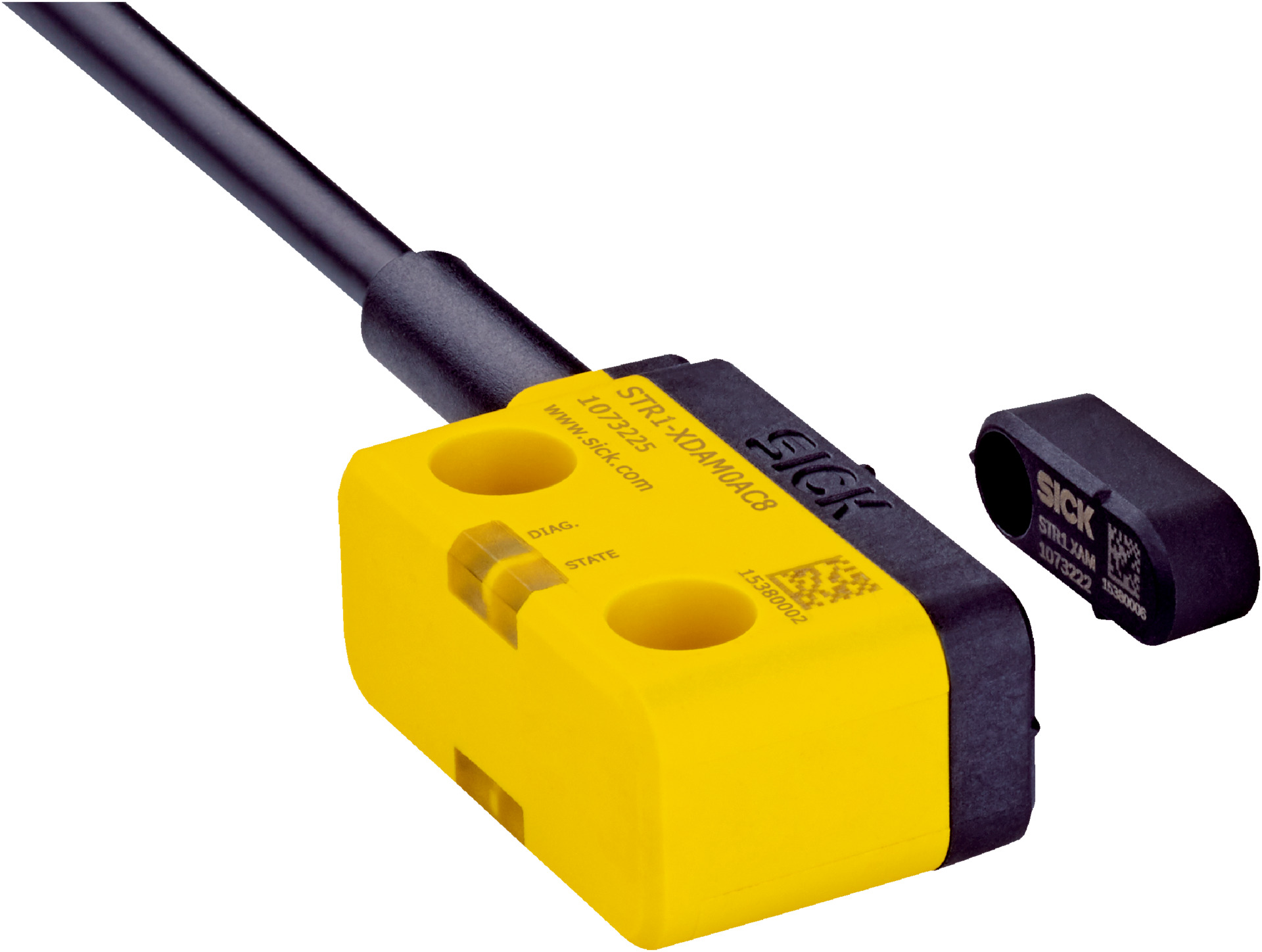

RFID Safety Sensor with Actuator | SIL 3 & IP67/IP69K Rated | 2 Safe Outputs | by SICK
The RFID Safety Sensor with Actuator is designed for industrial safety systems, featuring two safe outputs and a robust housing with IP67 and IP69K ratings. With a wide operating temperature range from -30°C to +70°C, this sensor is perfect for machine safety monitoring and automation systems, ensuring high safety integrity and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior to OSSDs)
- Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state on fault: At least one safety-related semiconductor output OFF
- Connection type: Cable with plug M12, 5-pin
- Cable length: 0.2 m
- Long connecting cable: ≤ 200 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- Sensor with actuator using RFID principle
- Two safe outputs with one auxiliary contact
- Universally coded with five actuation directions
- Safe series connection with Flexi Loop and diagnostics
- LED display elements with diagnostics and status indicators
- High safety integrity level SIL 3 and Category 4 compliance
- Robust housing with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal safety performance.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with safety output requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 50 mA supports energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Warranty details available upon request from SICK, typically covering manufacturing defects for a standard period.
Available Now

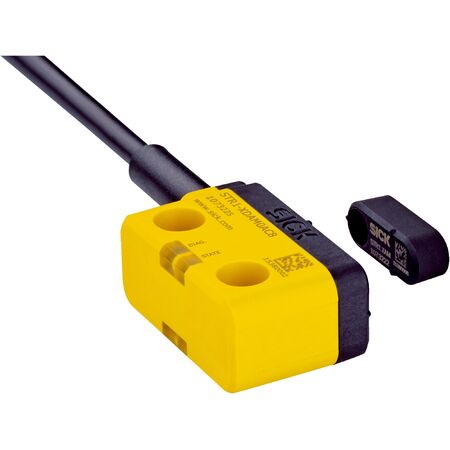

The SICK STR1-SAMM0AC5 RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
