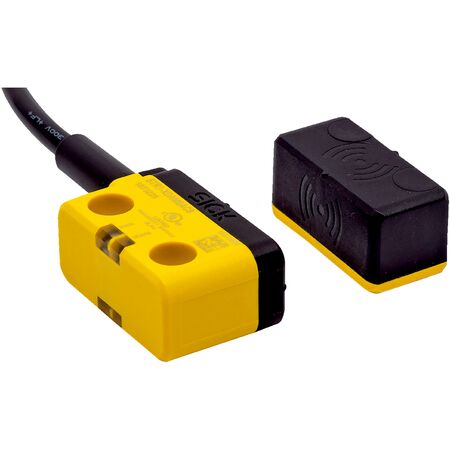

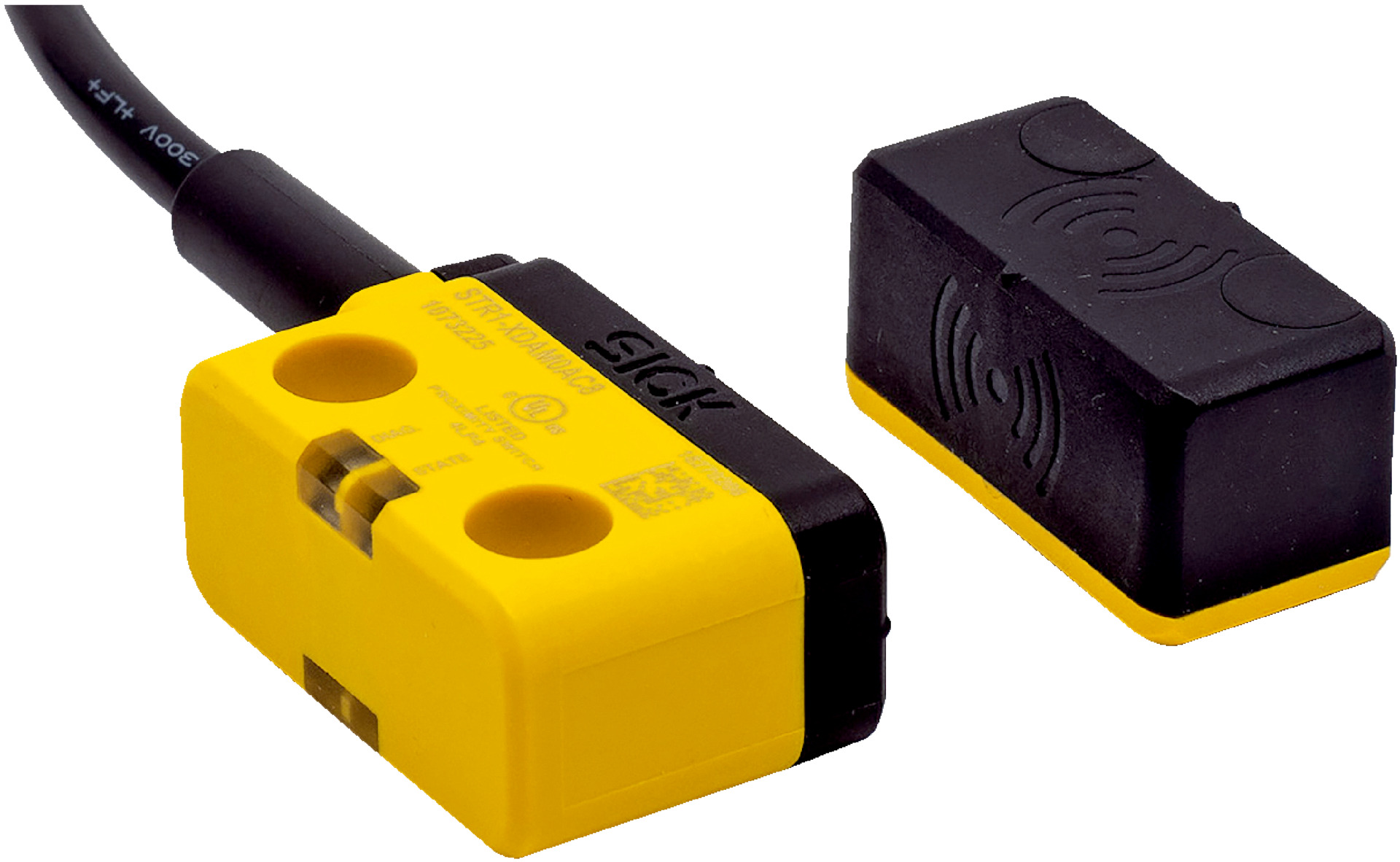

RFID Safety Sensor STR1-SACM0AC8 | Two Safe Outputs | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SACM0AC8 is designed for industrial safety systems, featuring two safe outputs and an auxiliary contact for enhanced monitoring. With a robust IP67 and IP69K rating, it operates effectively in harsh environments, making it ideal for machine safety and automation applications. Its universally coded design allows for five actuation directions, ensuring versatility in various setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior)
- Assured switch on distance Sao: 10 mm (-30 °C to +70 °C)
- Assured switch off distance Sar: 25 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state on fault: At least one safety-related semiconductor output (OSSD) is OFF
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Long connecting cable: ≤ 200 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- Sensor with actuator using RFID principle
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Universally coded with five actuation directions
- Safe series connection with T-connector and Flexi Loop
- LED display elements with diagnostics and status indicators
- High safety integrity level SIL 3 and Category 4 performance
- Robust housing with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with safety output requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 50 mA supports energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK STR1-SACM0AC8 RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
