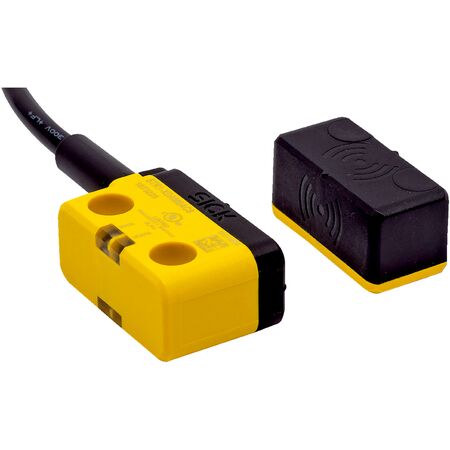

RFID Safety Sensor STR1-SACM0PR5 | 2 Safe Outputs | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SACM0PR5 features a robust design with 2 safe outputs and 1 auxiliary contact, making it ideal for industrial safety systems. With an assured switch-on distance of 10 mm and a switch-off distance of 25 mm, this sensor ensures reliable operation in automation systems. Its IP67 and IP69K ratings provide durability in harsh environments, while the universally coded actuator enhances compatibility across various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (switching behavior equivalent to actuator in protected switch-on state)
- Assured switch on distance Sao: 10 mm (-30 °C to +70 °C)
- Assured switch off distance Sar: 25 mm
- Active sensor surfaces: 3 (top, left, right sides)
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state on fault: At least one safety-related semiconductor output (OSSD) is OFF
- Safe series connection: With Flexi Loop (with diagnostics)
- Connection type: Cable with plug M12, 5-pin
- Cable length: 0.2 m
- Long connecting cable: ≤ 200 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Bend radius fixed installation: > 8 x cable diameter
- Bend radius moving cable: > 12 x cable diameter
- Cable material: PUR
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Display elements: LEDs with diagnostics indicator and status display
- Protection class: III (IEC 61140)
- Classification cULus: Class 2
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- RFID sensor principle with 2 safe outputs and 1 auxiliary contact
- Assured switch on distance of 10 mm and switch off distance of 25 mm
- 3 active sensor surfaces (top, left and right sides) with 5 actuation directions
- Universally coded actuator with low coding level
- Safety integrity level SIL 3 and Category 4 safety rating
- Self-monitoring semiconductor outputs (OSSDs) with diagnostics
- LED status display and diagnostics indicator
- Robust housing material VISTAL® with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from -30 °C to +70 °C
- Cable with M12 5-pin plug and PUR cable material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with safety output requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 50 mA supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK STR1-SACM0PR5 RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
