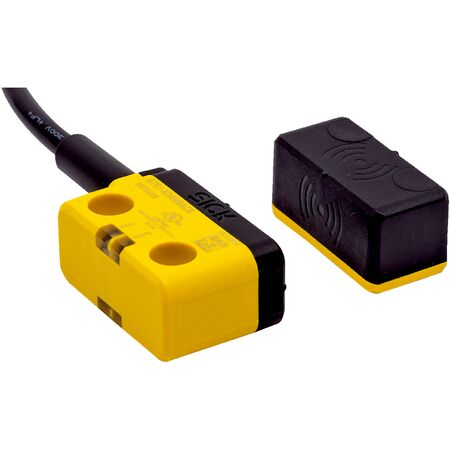

RFID Safety Sensor STR1-SACM0PR8 | 2 Safe Outputs | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SACM0PR8 is designed for industrial safety monitoring, featuring 2 safe outputs and an auxiliary contact for enhanced safety. With a robust IP67 and IP69K rated enclosure, it ensures reliable performance in harsh environments, making it ideal for machine guarding and access control in hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (switching behavior equivalent to actuator in protected switch-on state)
- Assured switch on distance Sao: 10 mm (–30 °C to +70 °C)
- Assured switch off distance Sar: 25 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state on fault: At least one safety-related semiconductor output (OSSD) is OFF
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Long connecting cable max length: ≤ 200 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Cable material: PUR
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: –30 °C to +70 °C
- Storage temperature: –30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- RFID sensor principle with 2 safe outputs and 1 auxiliary contact
- Assured switch on distance of 10 mm and switch off distance of 25 mm
- Universally coded actuator with 5 actuation directions
- Safety integrity level SIL 3 and Category 4 safety classification
- Self-monitoring semiconductor outputs (OSSDs) with response time of 40 ms
- IP67 and IP69K rated enclosure for harsh environments
- LED display elements with diagnostics and status indicators
- Cable with M12, 8-pin plug connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and high ingress protection reduce waste and replacement frequency
- Low power consumption of 50 mA supports energy-efficient operation
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK STR1-SACM0PR8 RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
