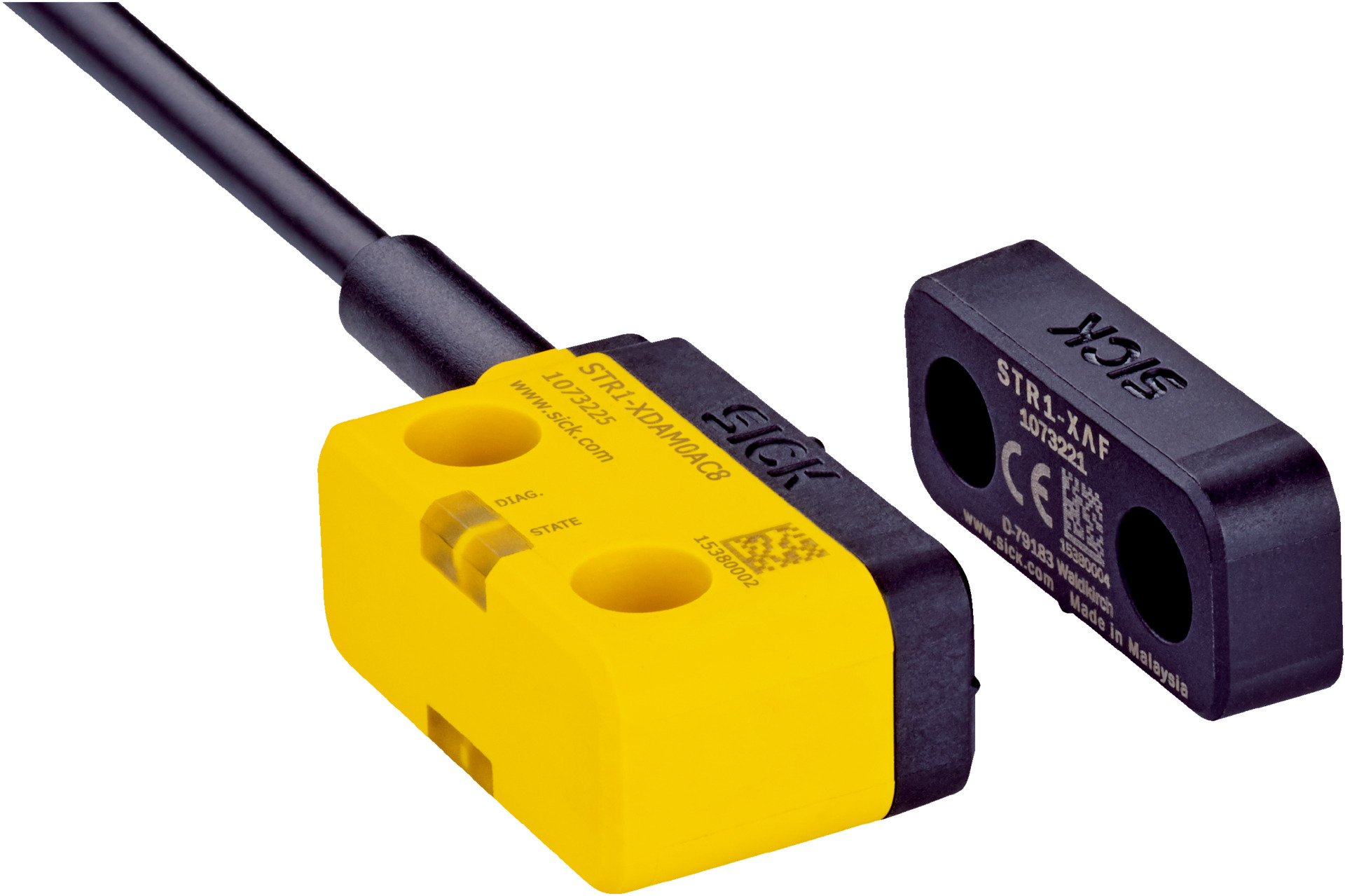

RFID Safety Sensor STR1-SAFF0AC8 | Two Safe Outputs | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAFF0AC8 is designed for industrial safety systems, featuring two safe outputs and an auxiliary contact for enhanced monitoring. With a robust IP67 and IP69K rated housing, this sensor operates effectively in harsh environments, ensuring high safety integrity for automation applications. Ideal for machine safety monitoring, it offers a permanently coded actuator for maximum security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior)
- Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left, right sides)
- Actuation directions: 5
- Coding: Permanently coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state on fault: At least one OSSD off
- Connection type: Cable with M12, 8-pin plug
- Cable length: 0.2 m
- Max connecting cable length: ≤ 200 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Bend radius fixed installation: > 8 x cable diameter
- Bend radius moving cable: > 12 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Display elements: LEDs with diagnostics and status indicators
- Protection class: III (IEC 61140)
- Classification cULus: Class 2
- Supply voltage: 24 V DC (19.2 - 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- Sensor with actuator using RFID principle
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance up to 14 mm and switch off distance 28 mm
- Three active sensor surfaces (top, left, right sides) with five actuation directions
- Permanently coded actuator for high security
- Safety integrity level SIL 3 and Category 4 with Performance Level PL e
- Safe state maintained with at least one safety-related semiconductor output off in fault conditions
- Safe series connection options with T-connector and Flexi Loop
- LED display elements with diagnostics and status indicators
- Protection class III and Class 2 electrical classification
- Operating voltage 24 V DC with low power consumption of 50 mA
- Robust housing material VISTAL® with IP67 and IP69K enclosure rating
- Wide ambient operating temperature range from -30 °C to +70 °C
- High vibration and shock resistance
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67/IP69K rated housing extends product lifespan and reduces waste
- Complies with RoHS directives limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK STR1-SAFF0AC8 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
