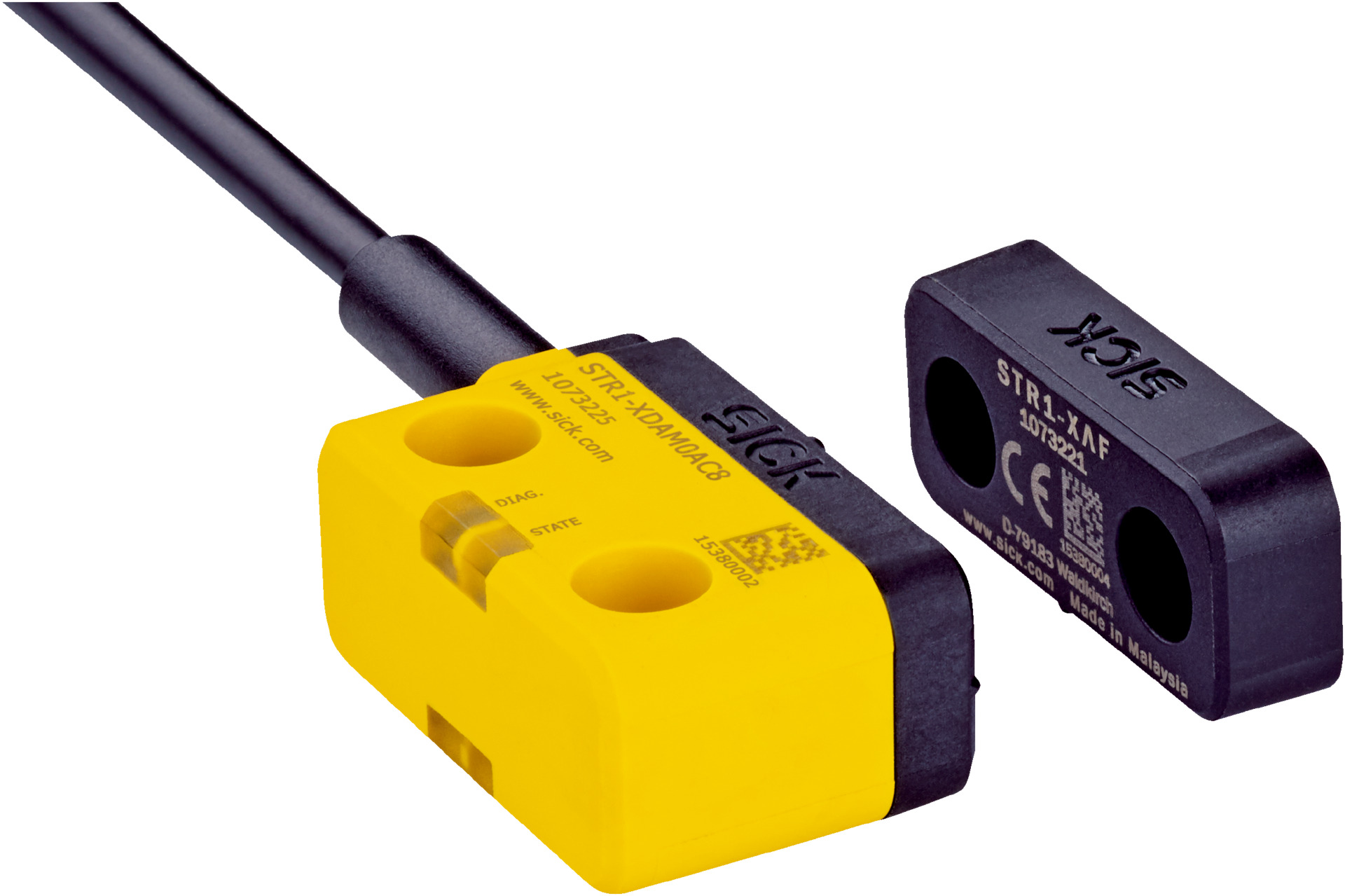

RFID Safety Sensor STR1-SAFF10P5 | SIL 3 Safety Level | IP67/IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAFF10P5 is designed for industrial safety applications, featuring two safe outputs and an auxiliary contact for enhanced safety monitoring. With a high safety integrity level of SIL 3 and a robust IP67/IP69K rated enclosure, this sensor is perfect for machine guarding and access control in automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior to OSSDs)
- Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Permanently coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state on fault: At least one safety-related semiconductor output OFF
- Connection type: Cable, 5-wire, 10 m length
- Cable diameter: 5.5 mm, conductor cross section: 0.12 mm²
- Bend radius fixed installation: > 8 x cable diameter
- Bend radius moving cable: > 12 x cable diameter
- Cable material: PVC, conductor material: Copper
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 - 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.423 kg
Key Features
- RFID sensor with actuator system part
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance Sao up to 14 mm
- Assured switch off distance Sar of 28 mm
- Three active sensor surfaces on top and sides
- Five actuation directions
- Permanently coded actuator
- High safety integrity level SIL 3 and Category 4 safety rating
- Performance level PL e with low probability of dangerous failure
- Self-monitoring semiconductor outputs (OSSDs)
- LED display elements with diagnostics and status indicators
- Protection class III and IP67/IP69K rated enclosure
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine guarding and access control
- Automation and manufacturing safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and long mission time of 20 years reduce waste and replacement frequency
- Low power consumption of 50 mA supports energy efficiency
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK STR1-SAFF10P5 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
