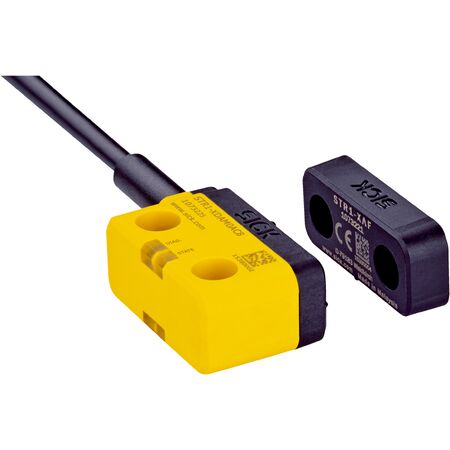

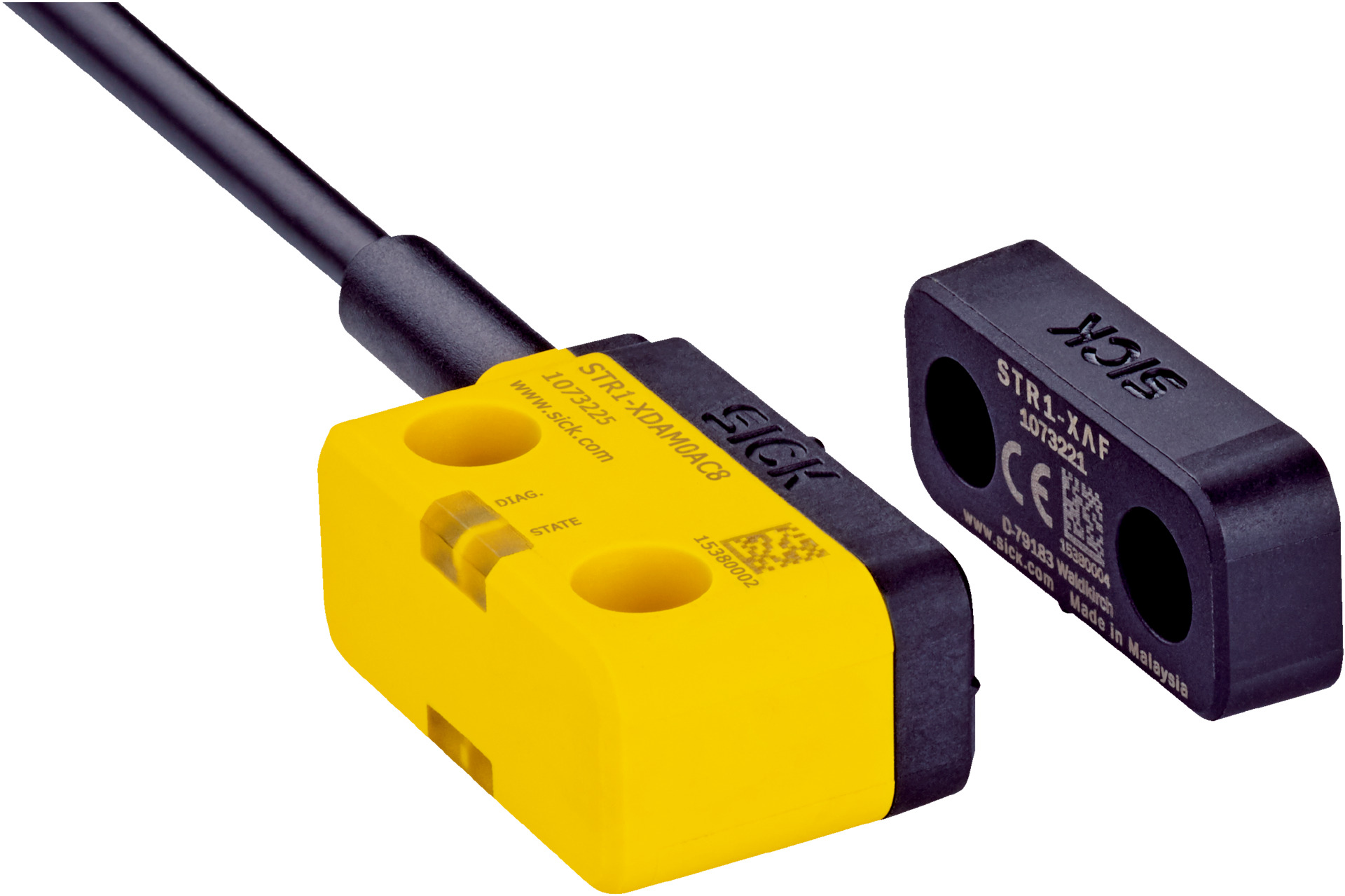

RFID Safety Sensor STR1-SAFF10P8 | SIL 3 Compliant | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAFF10P8 is designed for industrial safety systems, featuring a robust actuator system and SIL 3 compliance. With two safe outputs, an assured switch-on distance of 14 mm, and IP67/IP69K ratings, it ensures reliable performance in harsh environments. Ideal for machine safety monitoring and automation systems, this sensor enhances safety integrity and reduces the risk of accidents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.46 kg
Key Features
- RFID sensor with actuator system part
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance of 14 mm (-10 to +70 °C) and 10 mm (-30 to -10 °C)
- Assured switch off distance of 28 mm
- Three active sensor surfaces on top and sides
- Five actuation directions
- Permanently coded actuator
- Safety integrity level SIL 3 compliant
- Category 4 and Performance Level e safety ratings
- High coding level actuator coding
- Safe state ensures at least one safety-related semiconductor output is off in fault conditions
- Safe series connection with diagnostics in control cabinet
- LED display elements with diagnostics and status indicators
- Protection class III and Class 2 electrical classification
- Supply voltage 24 V DC with 50 mA power consumption
- Self-monitoring semiconductor outputs with ≤ 100 mA output current
- Response time 40 ms, release time 100 ms, risk time 80 ms
- Robust housing made of VISTAL® material
- IP67 and IP69K rated enclosure for harsh environments
- Operating temperature range -30 °C to +70 °C
- Vibration and shock resistant per IEC standards
- Comprehensive certifications including EU, UK, ACMA, China-RoHS, TÜV, cULus
Professional Installation Requirements
- Installation by qualified personnel with expertise in safety sensor systems and compliance with relevant safety standards is required.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable and robust design reduces need for frequent replacements
- High reliability and safety reduce risk of accidents and associated environmental impact
- Compliant with RoHS standards limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK STR1-SAFF10P8 RFID Safety Sensor with Actuator is available for immediate purchase. Ideal for industrial safety and automation applications requiring high safety integrity.
