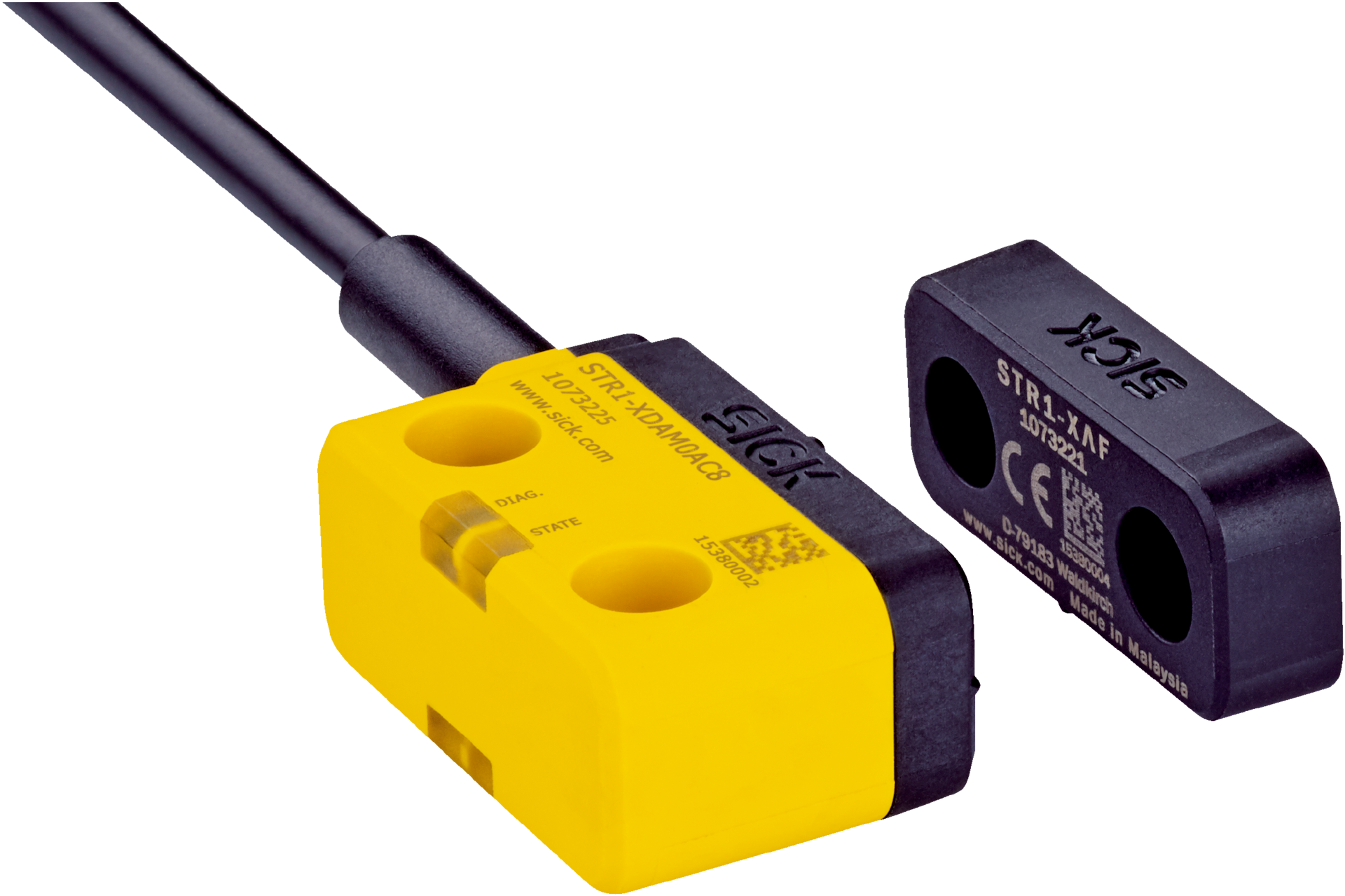

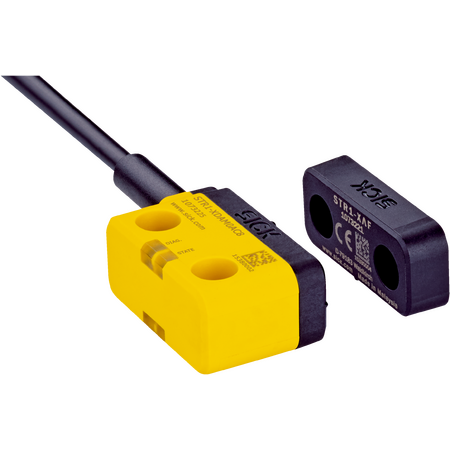

RFID Safety Sensor STR1-SAFM03P5 | SIL 3 Safety Integrity | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAFM03P5 is designed for industrial safety monitoring and machine guarding, featuring a robust VISTAL® housing and high ingress protection ratings of IP67 and IP69K. With a safety integrity level of SIL 3 and multiple actuation directions, this sensor ensures reliable performance in automated systems, making it ideal for safety-related automation processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Sensor, Safety Interlock Sensor, Machine Safety Sensor, Safety Actuator Sensor
Technical Specifications
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.157 kg
Key Features
- RFID sensor principle with 2 safe outputs and 1 auxiliary contact
- Assured switch on distance Sao: 14 mm (–10 to +70 °C), 10 mm (–30 to –10 °C)
- Assured switch off distance Sar: 28 mm
- 3 active sensor surfaces (top, left and right sides)
- 5 actuation directions
- Universally coded actuator
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level PL e
- Low coding level actuator coding (EN ISO 14119)
- Self-monitoring semiconductor outputs (OSSDs)
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption 50 mA
- Response time 40 ms, release time 100 ms
- Enclosure rating IP67, IP69K
- Operating temperature range –30 °C to +70 °C
- Robust VISTAL® housing material
- LED display elements with diagnostics and status indicators
Professional Installation Requirements
- Installation by qualified personnel trained in safety sensor systems is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in automated systems
- Safety-related automation processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and high ingress protection reduce waste and replacement frequency
- Low power consumption (50 mA) supports energy efficiency
- Compliant with China RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK STR1-SAFM03P5 RFID Safety Sensor with Actuator is available for immediate purchase. Ideal for industrial safety and automation applications requiring high safety integrity and reliable performance.
