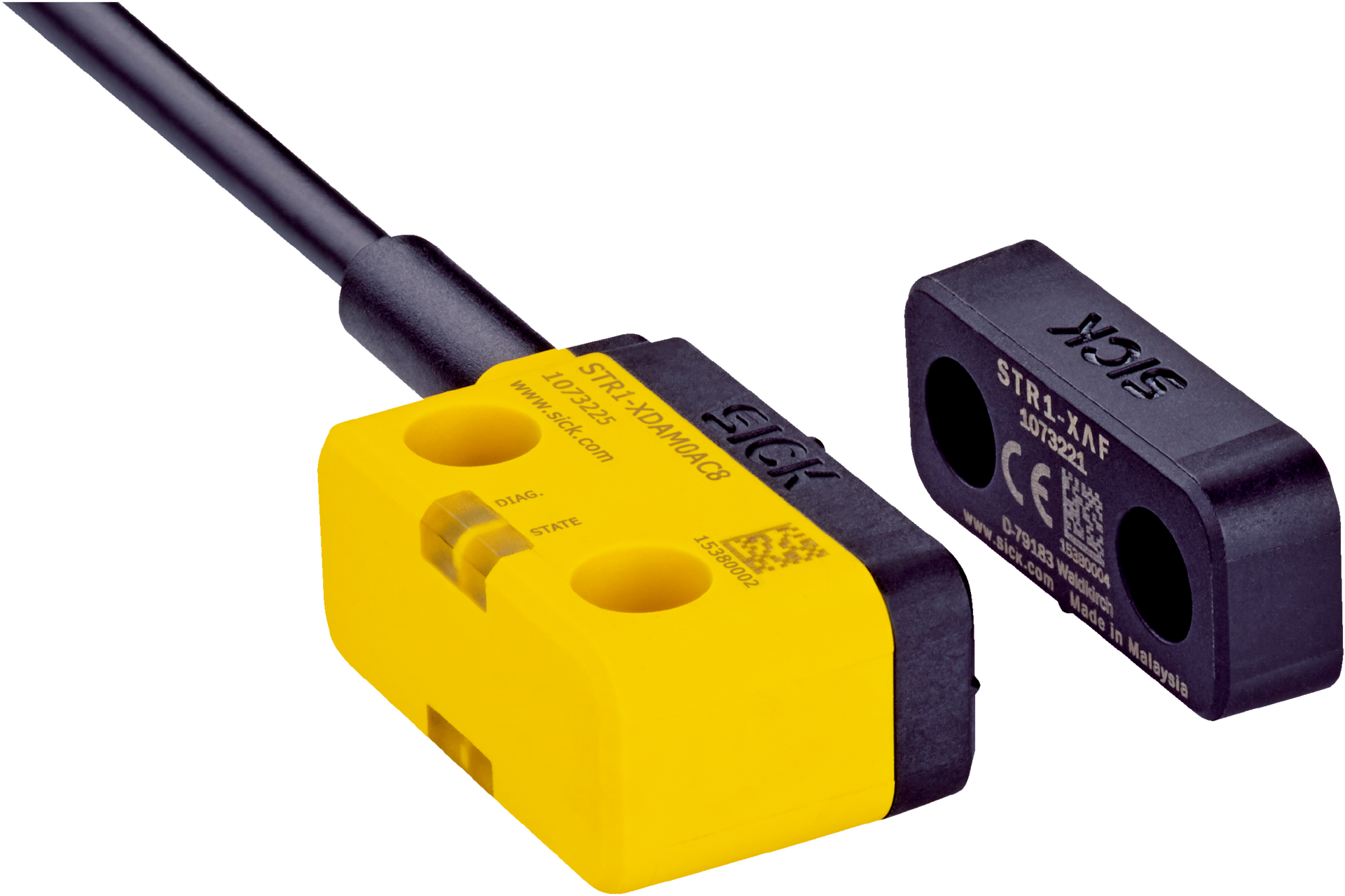

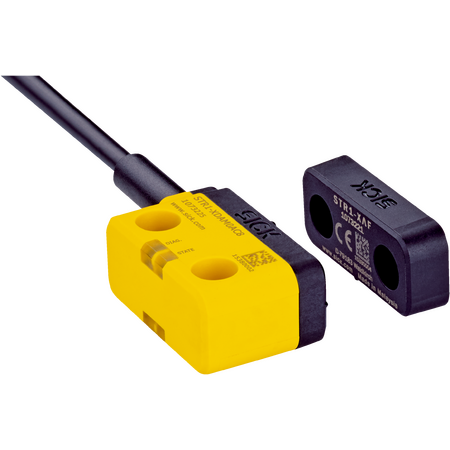

RFID Safety Sensor STR1-SAFU03P5 | SIL 3 & Category 4 | IP67/IP69K Rated | by SICK

BRAND: SICK
SKU: 1069577
$529.60 List price: $665.60
+ −
30 Days Return Electricians Unlock Trade Access
The RFID Safety Sensor STR1-SAFU03P5 is designed for industrial safety monitoring, featuring two safe outputs and one auxiliary contact for enhanced security. With a high safety integrity level of SIL 3 and IP67/IP69K ratings, this sensor is perfect for automation and control systems in harsh environments, ensuring reliable performance and safety compliance.

Alternatively Known As: RFID Safety Sensor, Safety Sensor with Actuator, Industrial Safety Sensor, STR1-SAFU03P5 Sensor

Technical Specifications
  • Sensor principle: RFID
  • Number of safe outputs: 2
  • Auxiliary contact: 1 (complementary switching behavior to OSSDs)
  • Assured switch on distance Sao: 14 mm (–10 to +70 °C), 10 mm (–30 to –10 °C)
  • Assured switch off distance Sar: 28 mm
  • Active sensor surfaces: 3 (top, left and right sides)
  • Actuation directions: 5
  • Coding: Uniquely coded
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • PFHD: 5.21 x 10^-9
  • Mission time: 20 years
  • Type: Type 4 (EN ISO 14119)
  • Actuator coding level: High coding level
  • Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
  • Connection type: Cable, 5-wire, 3 m length
  • Cable diameter: 5.5 mm, conductor cross section 0.12 mm²
  • Cable material: PVC, conductor material: Copper
  • Protection class: III (IEC 61140)
  • Supply voltage: 24 V DC (19.2 to 28.8 V DC)
  • Power consumption: 50 mA
  • Output type: Self-monitoring semiconductor outputs (OSSDs)
  • Output current: ≤ 100 mA
  • Response time: 40 ms
  • Release time: 100 ms
  • Risk time: 80 ms
  • Switch-on time: 2.5 s
  • Housing material: VISTAL®
  • Enclosure rating: IP67, IP69K
  • Operating temperature: –30 °C to +70 °C
  • Storage temperature: –30 °C to +70 °C
  • Vibration resistance: 10 Hz to 55 Hz, 1 mm
  • Shock resistance: 30 g, 11 ms
  • EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
  • Dimensions (H x L x W): 18mm x 26mm x 40mm
  • Weight: 0.157 kg
Key Features
  • Sensor with actuator using RFID principle
  • Two safe outputs and one auxiliary contact with complementary switching behavior
  • Uniquely coded for high security
  • High safety integrity level SIL 3 and Category 4 compliance
  • IP67 and IP69K rated for harsh environments
  • LED display elements with diagnostics and status indicators
  • Robust housing made of VISTAL® material
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
  • Industrial safety monitoring
  • Machine safety systems
  • Automation and control systems requiring RFID safety sensors
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • Low power consumption of 50 mA supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK STR1-SAFU03P5 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
