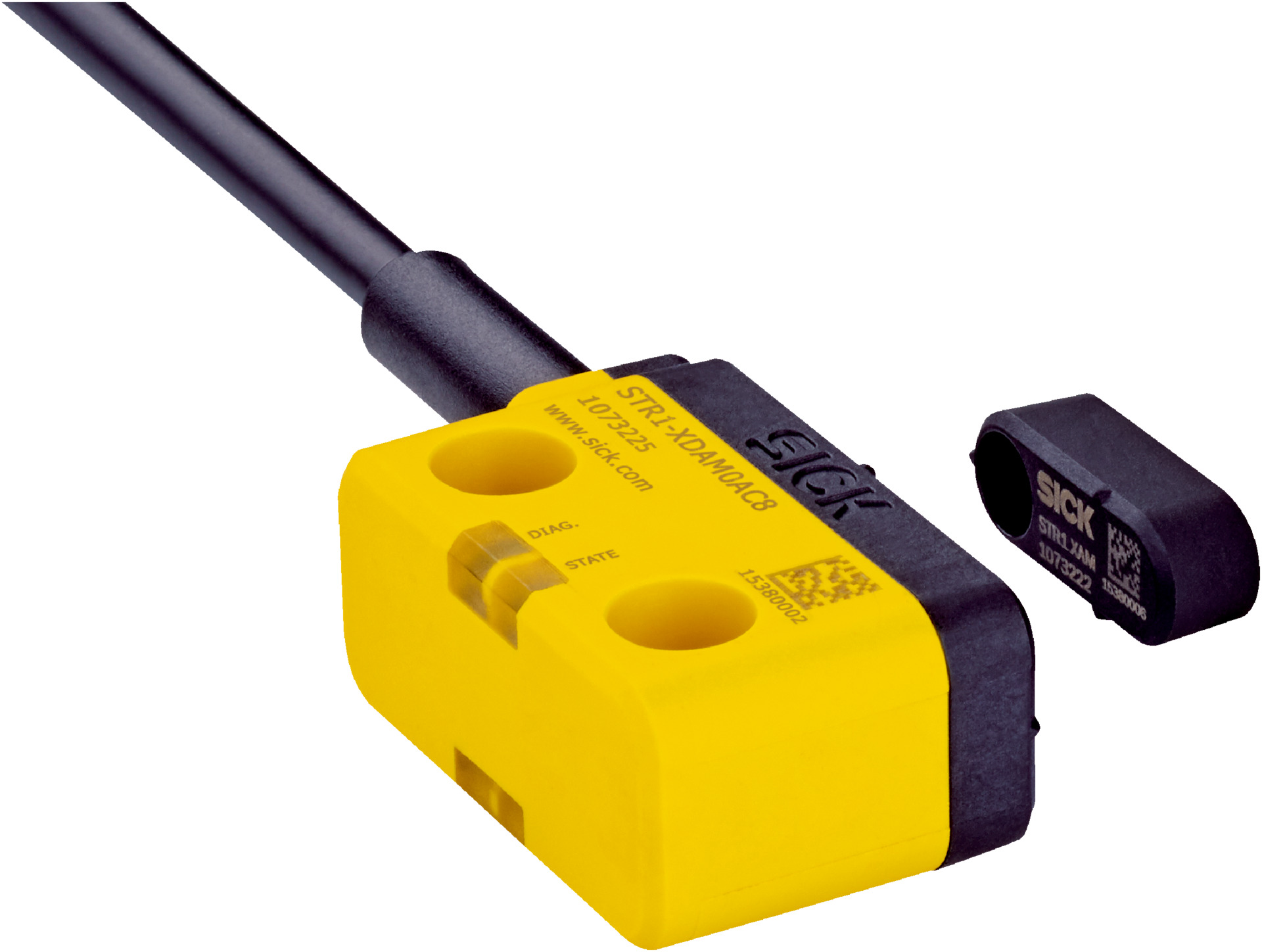

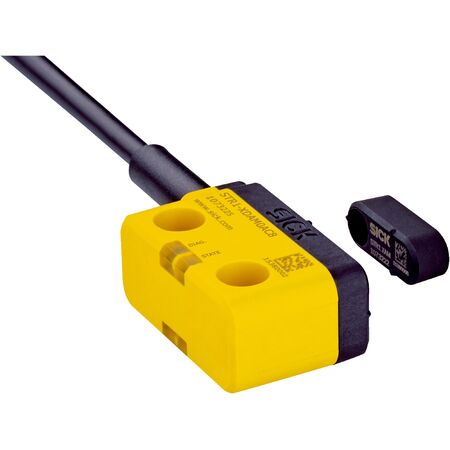

RFID Safety Sensor STR1-SAMF03P5 | SIL 3 & Category 4 | IP67/IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAMF03P5 is designed for industrial safety systems, featuring a SIL 3 safety integrity level and two safe outputs. With a robust VISTAL® housing and IP67/IP69K protection, it operates effectively in harsh environments, making it ideal for machine safety monitoring and automation systems that require high safety integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary to OSSDs)
- Assured switch on distance Sao: 14 mm (–10 to +70 °C), 10 mm (–30 to –10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Permanently coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state on fault: At least one OSSD off
- Connection type: 5-wire cable, 3 m length
- Cable diameter: 5.5 mm, conductor cross section 0.12 mm²
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 to 28.8 V DC)
- Power consumption: 50 mA
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: –30 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.15 kg
Key Features
- RFID sensor principle with permanently coded actuator
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance of 14 mm (–10 to +70 °C) and switch off distance of 28 mm
- High safety integrity level SIL 3 and Category 4 performance level PL e
- Self-monitoring semiconductor outputs (OSSDs) with diagnostics
- LED display elements for status and diagnostics
- Robust housing material VISTAL® with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from –30 °C to +70 °C
- Shock resistance of 30 g and vibration resistance of 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 50 mA supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK STR1-SAMF03P5 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
