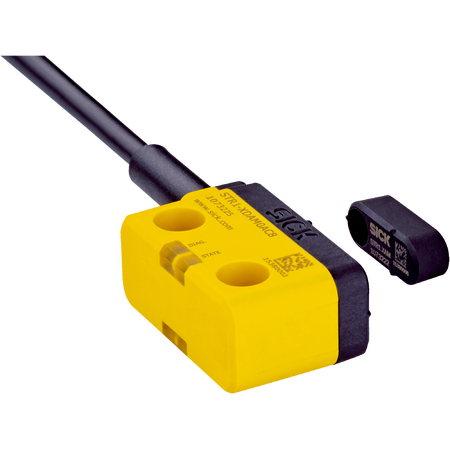

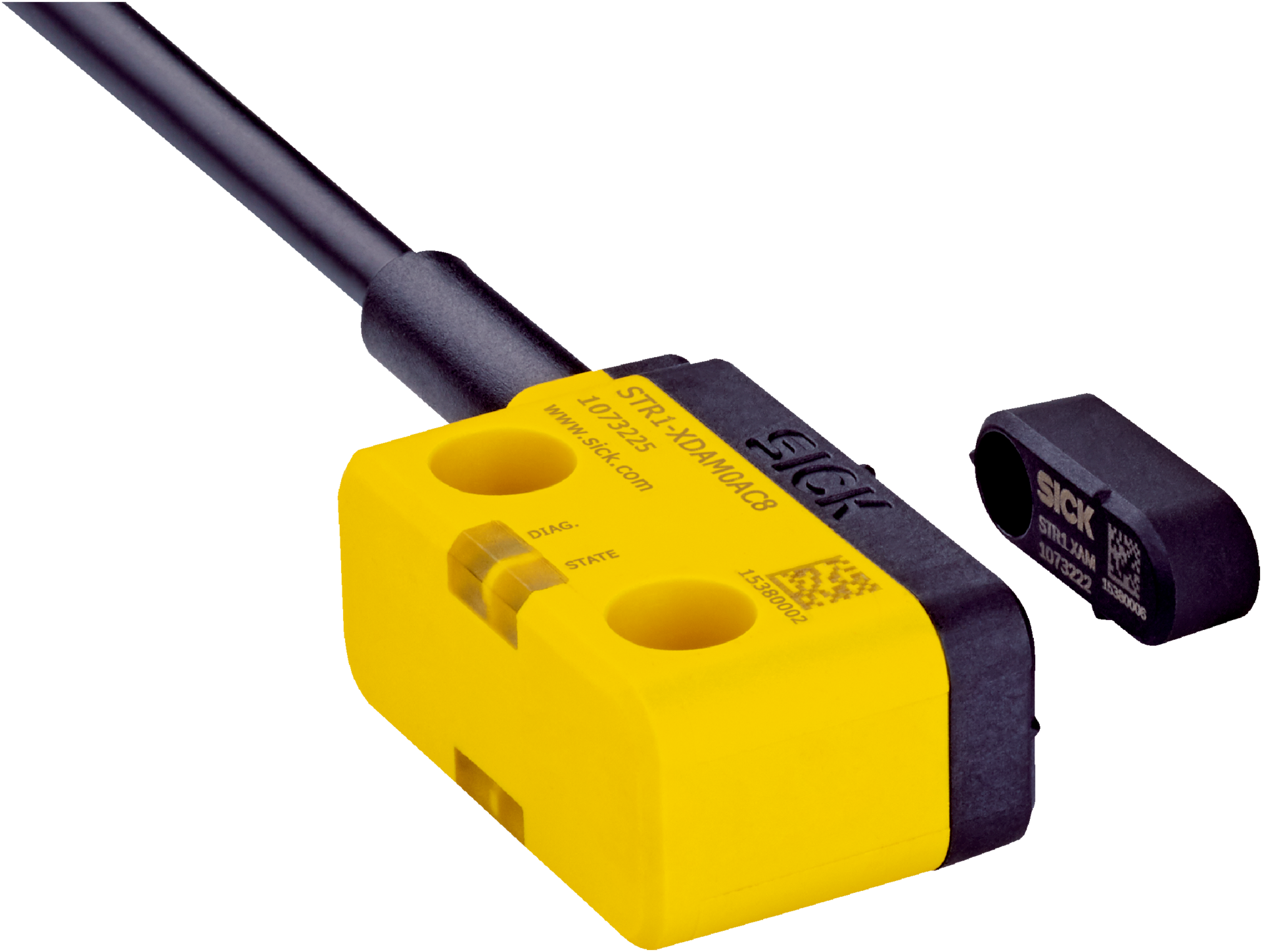

RFID Safety Sensor STR1-SAMF03P8 | Two Safe Outputs | IP67/IP69K Rated | SIL 3 Compliance | by SICK
The RFID Safety Sensor STR1-SAMF03P8 is designed for industrial safety systems, featuring two safe outputs and an auxiliary contact for enhanced monitoring. With a robust IP67/IP69K rated housing and a safety integrity level of SIL 3, this sensor is perfect for machine safety and automation applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Sensor, Safety Sensor with Actuator, SICK RFID Sensor STR1-SAMF03P8
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior to OSSDs)
- Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left, right)
- Actuation directions: 5
- Coding: Permanently coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state on fault: At least one safety-related semiconductor output off
- Connection type: Cable, 7-wire, 3 m length
- Cable diameter: 5.5 mm, conductor cross section: 0.12 mm²
- Cable material: PVC, conductor material: Copper
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 - 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC compliance: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.18 kg
Key Features
- RFID sensor with actuator system part
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance Sao of 14 mm (-10 to +70 °C) and 10 mm (-30 to -10 °C)
- Assured switch off distance Sar of 28 mm
- Three active sensor surfaces (top, left and right sides)
- Five actuation directions
- Permanently coded actuator
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- High actuator coding level (EN ISO 14119)
- Safe state in event of fault with at least one safety-related semiconductor output off
- Safe series connection with diagnostics in control cabinet
- LED display elements with diagnostics and status indicators
- Protection class III (IEC 61140) and Class 2 cULus classification
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption 50 mA
- Self-monitoring semiconductor outputs (OSSDs) with output current ≤ 100 mA
- Response time 40 ms, release time 100 ms, risk time 80 ms, switch-on time 2.5 s
- Housing made of VISTAL® material
- Enclosure rating IP67, IP69K (EN 60529, ISO 20653)
- Operating temperature range -30 °C to +70 °C
- Vibration resistance 10 Hz to 55 Hz, 1 mm
- Shock resistance 30 g, 11 ms
- Complies with EMC standards EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67/IP69K rated housing ensures long service life reducing waste
- Low power consumption (50 mA) contributes to energy efficiency
- Robust design minimizes replacement frequency and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK STR1-SAMF03P8 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
