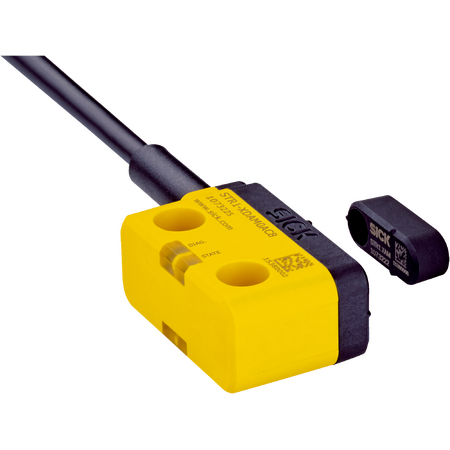

RFID Safety Sensor STR1-SAMF0AC5 | SIL 3 Safety Integrity | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAMF0AC5 is designed for industrial safety systems, featuring a robust housing with IP67 and IP69K ratings, ensuring durability in harsh environments. With SIL 3 safety integrity and multiple actuation directions, it's perfect for machine safety monitoring and automation systems that require high safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Sensor, Safety Sensor with Actuator, Industrial Safety RFID Sensor, SICK STR1 Safety Sensor
Technical Specifications
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- Sensor with actuator using RFID principle
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance Sao of 14 mm (–10 to +70 °C) and 10 mm (–30 to –10 °C)
- Assured switch off distance Sar of 28 mm
- Three active sensor surfaces (top, left and right sides)
- Five actuation directions
- Permanently coded actuator
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level PL e
- Safe series connection with Flexi Loop including diagnostics
- LED display elements with diagnostics indicator and status display
- Protection class III (IEC 61140) and Class 2 cULus classification
- Operating voltage 24 V DC with 50 mA power consumption
- Self-monitoring semiconductor outputs (OSSDs) with ≤ 100 mA output current
- Robust housing made of VISTAL® with IP67 and IP69K enclosure rating
- Wide ambient operating temperature range from –30 °C to +70 °C
- Vibration and shock resistant according to IEC standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable housing and robust design reduce replacement frequency and waste
- Low power consumption of 50 mA contributes to energy efficiency
- High reliability and long mission time of 20 years reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK STR1-SAMF0AC5 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
