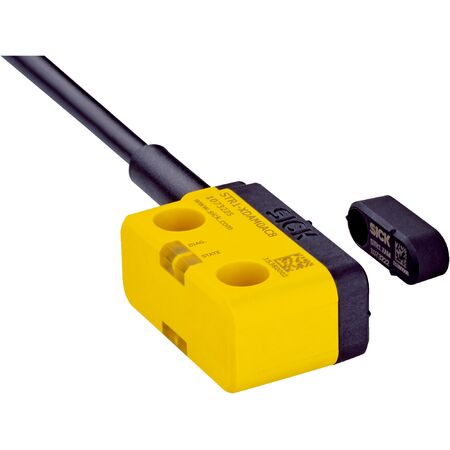

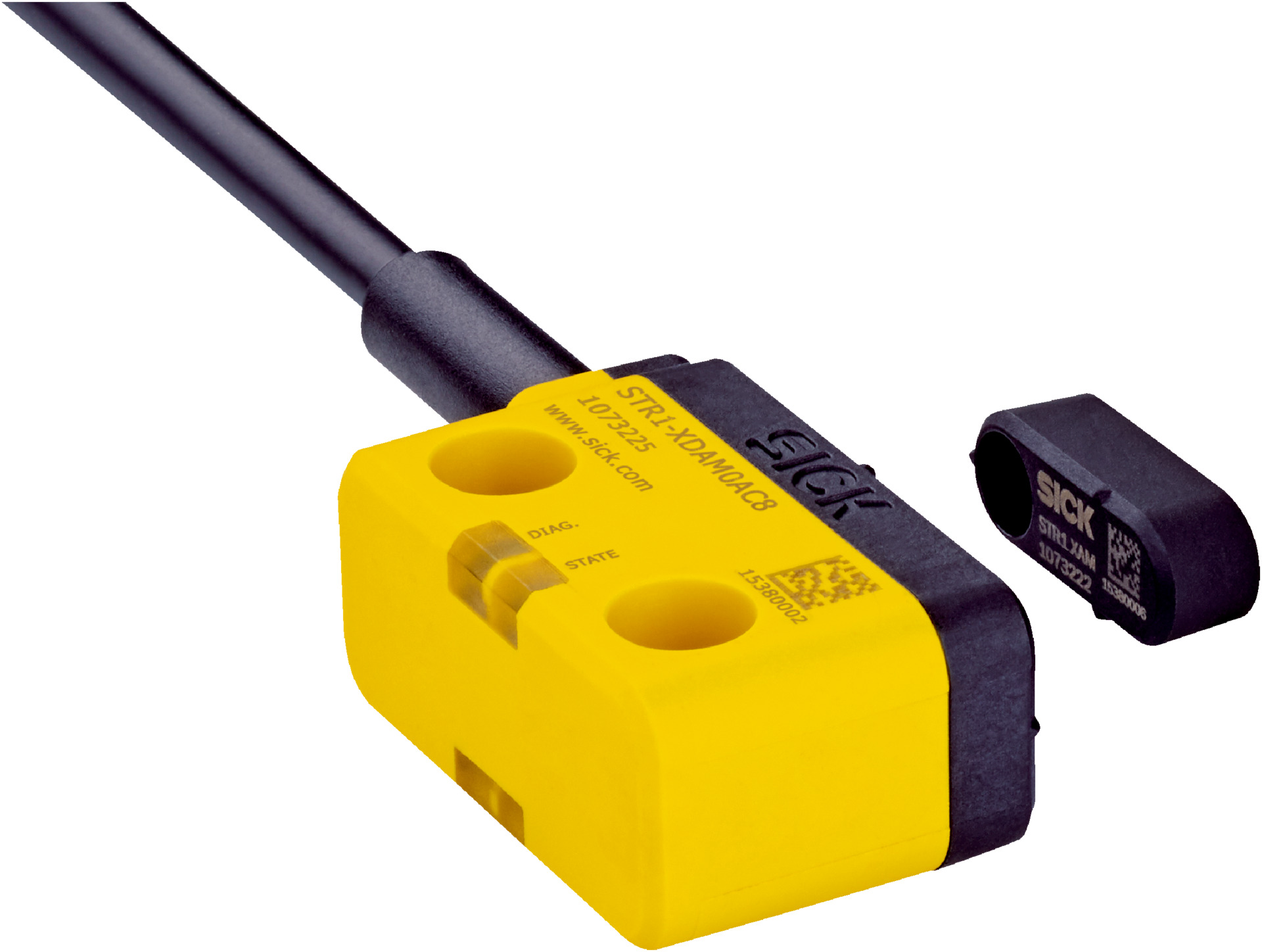

RFID Safety Sensor STR1-SAMF0AC8 | SIL 3 Safety Level | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAMF0AC8 is designed for industrial safety systems, featuring a high safety integrity level of SIL 3 and two safe outputs. With an assured switch-on distance of 14 mm and robust IP67/IP69K ratings, this sensor is perfect for machine guarding and access control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior)
- Assured switch on distance Sao: 14 mm (–10 to +70 °C), 10 mm (–30 to –10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left, right)
- Actuation directions: 5
- Coding: Permanently coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state in fault: At least one safety-related semiconductor output off
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Long connecting cable: ≤ 200 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Classification cULus: Class 2
- Supply voltage: 24 V DC (19.2 to 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: –30 °C to +70 °C
- Storage temperature: –30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- RFID sensor with actuator system
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance of 14 mm (–10 to +70 °C) and 10 mm (–30 to –10 °C)
- Assured switch off distance of 28 mm
- Three active sensor surfaces (top, left and right sides)
- Five actuation directions
- Permanently coded actuator
- High safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance Level PL e
- Safe state maintained with at least one safety-related semiconductor output off in fault conditions
- Safe series connection with T-connector or Flexi Loop
- LED display elements with diagnostics and status indicators
- Protection class III and Class 2 cULus classification
- Operating voltage 24 V DC with 50 mA power consumption
- Response time 40 ms, release time 100 ms, risk time 80 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine guarding and access control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable housing with IP67 and IP69K ratings ensures long service life and reduces waste
- Low power consumption of 50 mA supports energy-efficient operation
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK STR1-SAMF0AC8 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
