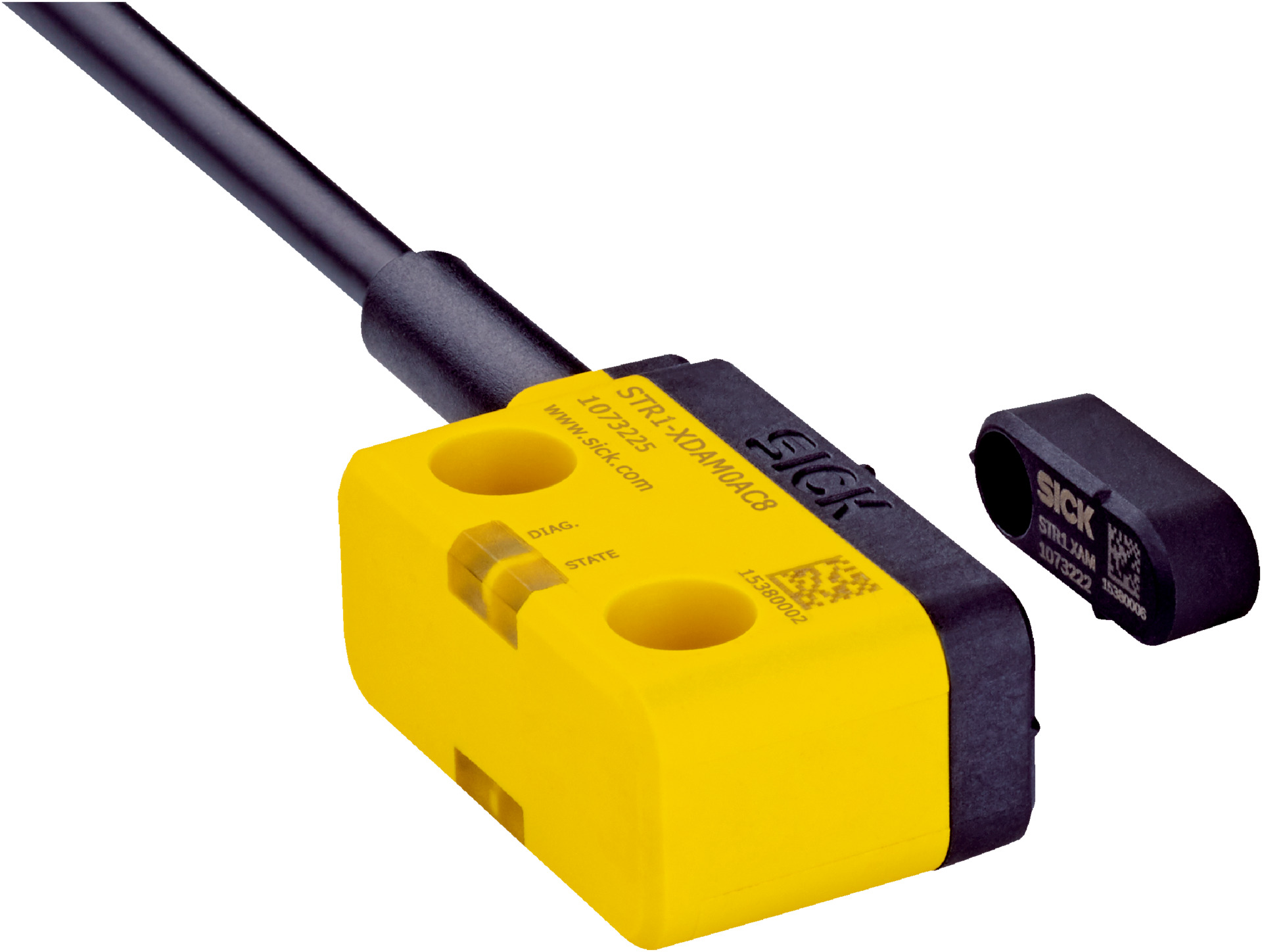

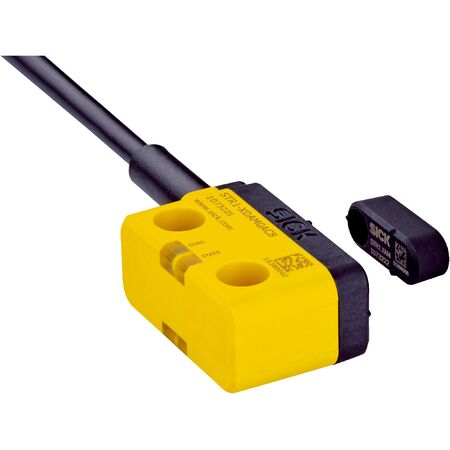

RFID Safety Sensor STR1-SAMM03P5 | 2 Safe Outputs | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAMM03P5 is designed for industrial safety systems, featuring 2 safe outputs and an auxiliary contact for enhanced safety. With a robust IP67 and IP69K rated housing, it operates effectively in harsh environments, making it ideal for machine guarding and access control applications. Its SIL 3 safety integrity level ensures compliance with stringent safety standards, providing peace of mind in automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior to OSSDs)
- Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state on fault: At least one OSSD off
- Connection type: 5-wire cable, 3 m length
- Cable diameter: 5.5 mm, conductor cross section 0.12 mm²
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 - 28.8 V DC)
- Power consumption: 50 mA
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.15 kg
Key Features
- RFID sensor principle with 2 safe outputs and 1 auxiliary contact
- Universally coded actuator with 5 actuation directions
- High safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with diagnostics
- Robust housing with IP67 and IP69K protection ratings
- Operating temperature range from -30 °C to +70 °C
- LED status display and diagnostics indicator included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine guarding and access control
- Automation systems with safety output requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 50 mA supports energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK STR1-SAMM03P5 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety compliance.
