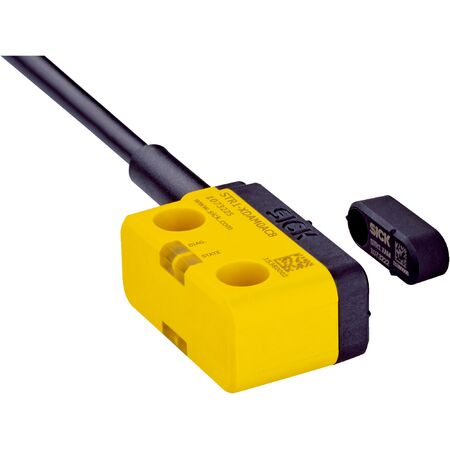

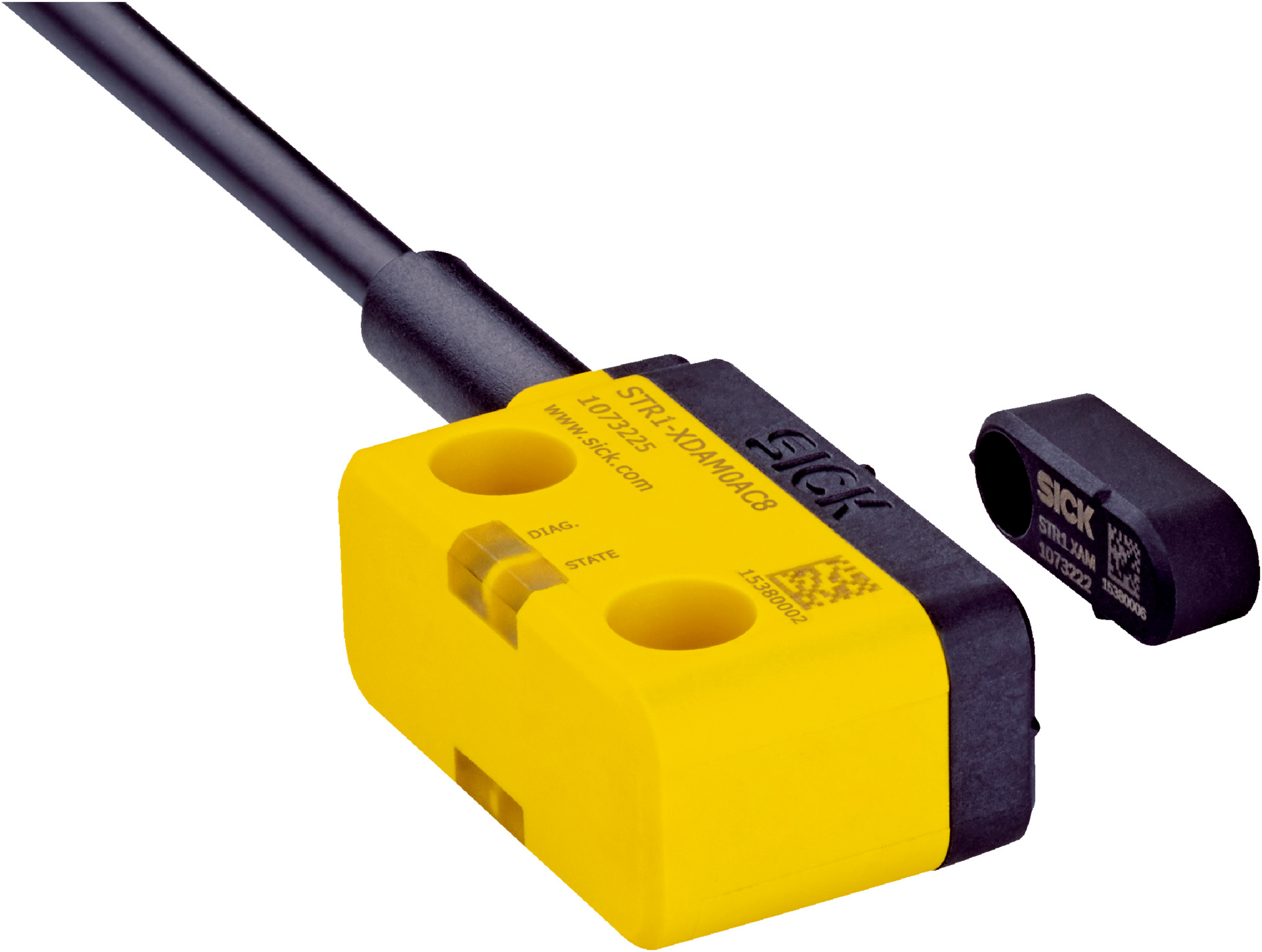

RFID Safety Sensor STR1-SAMM10P8 | IP67 & IP69K Rated | SIL 3 Safety Level | by SICK
The RFID Safety Sensor STR1-SAMM10P8 is designed for industrial safety monitoring and machine guarding, featuring an IP67/IP69K rated enclosure for harsh environments. With a safety integrity level of SIL 3 and multiple actuation directions, it ensures reliable access control in automated systems, making it ideal for safety interlock applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 50 mA
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Bend radius fixed installation: > 8 x cable diameter
- Bend radius moving cable: > 12 x cable diameter
- Housing material: VISTAL®
- Weight: 453 g
- Dimensions (W x H x D): 40 mm x 18 mm x 26 mm
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.453 kg
Key Features
- RFID sensor principle with 2 safe outputs and 1 auxiliary contact
- Assured switch on distance Sao of 14 mm (-10 to +70 °C) and 10 mm (-30 to -10 °C)
- Assured switch off distance Sar of 28 mm
- 3 active sensor surfaces (top, left and right sides)
- 5 actuation directions
- Universally coded actuator
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level PL e
- Low coding level actuator coding (EN ISO 14119)
- Safe state maintained with at least one safety-related semiconductor output off in fault condition
- Self-monitoring semiconductor outputs (OSSDs)
- Protection class III (IEC 61140)
- IP67 and IP69K rated enclosure for harsh environments
- Operating temperature range -30 °C to +70 °C
- Cable connection with 7-wire, 10 m length, PVC jacket and copper conductors
- LED status display and diagnostics indicator
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in automated systems
- Safety interlock systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67/IP69K rated housing reduces need for frequent replacements
- Low power consumption (50 mA) contributes to energy efficiency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK STR1-SAMM10P8 RFID Safety Sensor with Actuator is available for immediate purchase. Ideal for industrial safety and machine guarding applications.
