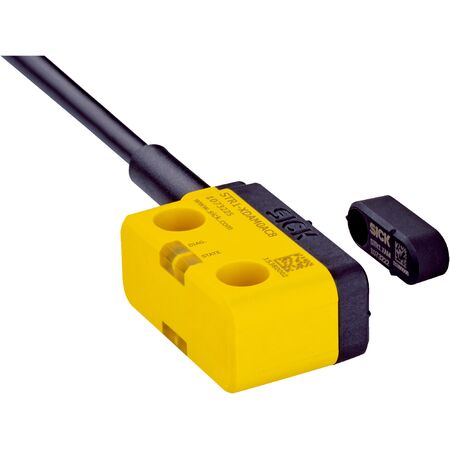

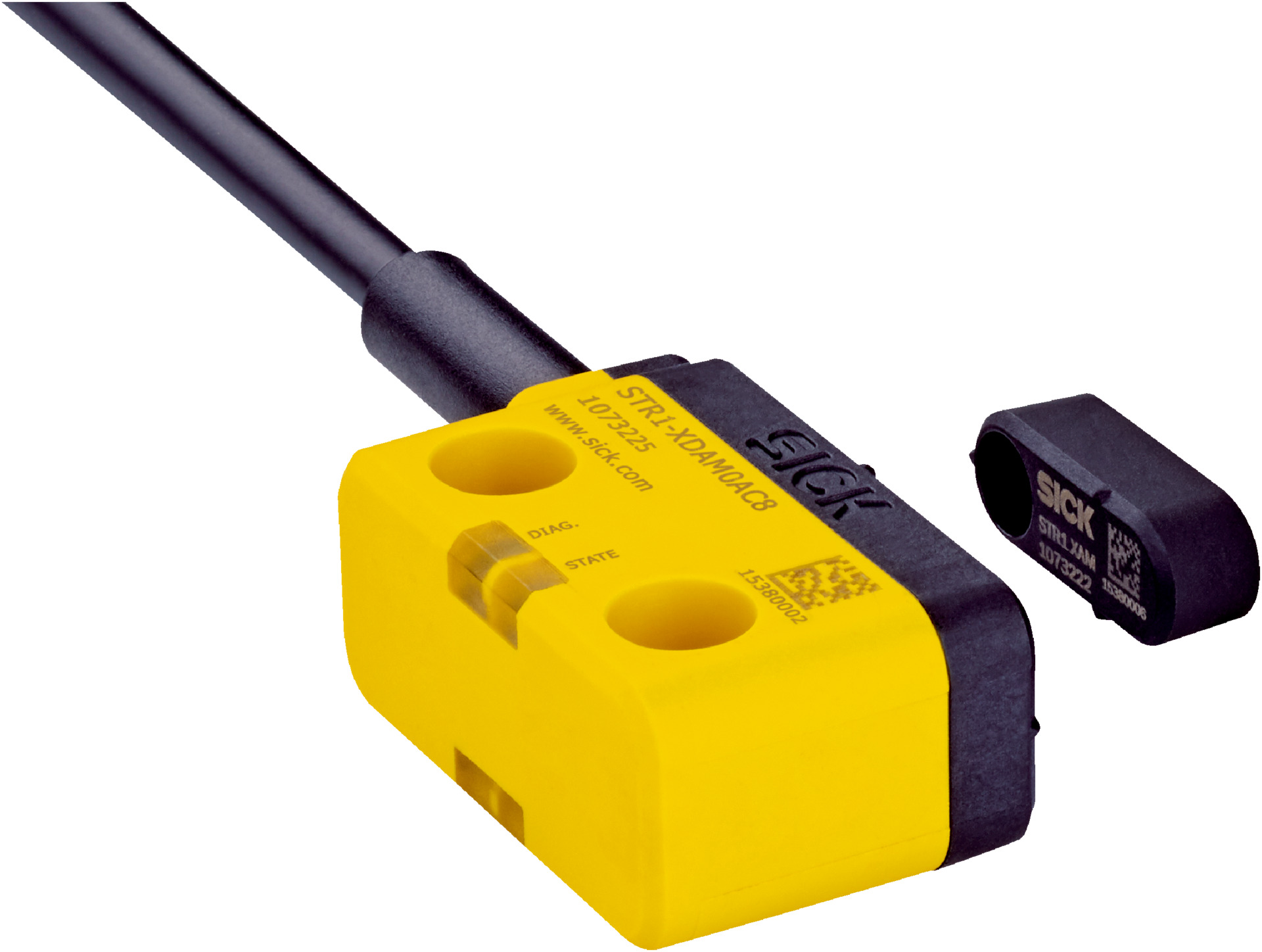

RFID Safety Sensor STR1-SAMU03P5 | Actuator System | IP67 & IP69K Rated | SIL 3 Compliant | by SICK
The RFID Safety Sensor STR1-SAMU03P5 with actuator system is designed for industrial safety applications, ensuring high safety integrity with SIL 3 compliance. Featuring two safe outputs, an assured switch-on distance, and a robust IP67/IP69K rating, this sensor is perfect for machine safety monitoring and automation systems. Its durable housing and low power consumption make it an eco-friendly choice for your safety needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: 5-wire cable, 3 m length, PVC material
- Cable diameter: 5.5 mm, conductor cross section: 0.12 mm²
- Bend radius: >8x cable diameter (fixed), >12x cable diameter (moving)
- Housing material: VISTAL®
- Dimensions (W x H x D): 40 mm x 18 mm x 26 mm
- Enclosure rating: IP67, IP69K
- Ambient operating temperature: –30 °C to +70 °C
- Storage temperature: –30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.15 kg
Key Features
- RFID sensor with actuator system
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance of 14 mm (–10 to +70 °C) and 10 mm (–30 to –10 °C)
- Assured switch off distance of 28 mm
- Three active sensor surfaces (top, left and right sides)
- Five actuation directions
- Uniquely coded actuator
- Safety integrity level SIL 3 compliant (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- High actuator coding level (EN ISO 14119)
- Safe state maintained with at least one safety-related semiconductor output off in fault conditions
- LED display elements with diagnostics and status indicators
- Protection class III and Class 2 electrical classification
- Operating voltage 24 V DC with 50 mA power consumption
- Response time 40 ms, release time 100 ms, risk time 80 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper sensor function.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and high protection rating reduce waste and replacement frequency
- Low power consumption (50 mA) supports energy efficiency
- Compliant with China-RoHS and ECOLAB certificates ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK STR1-SAMU03P5 RFID Safety Sensor with Actuator is available for immediate purchase. Ideal for industrial safety and automation applications requiring high safety integrity.
