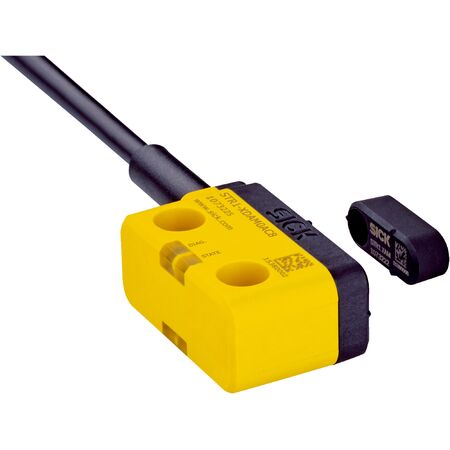

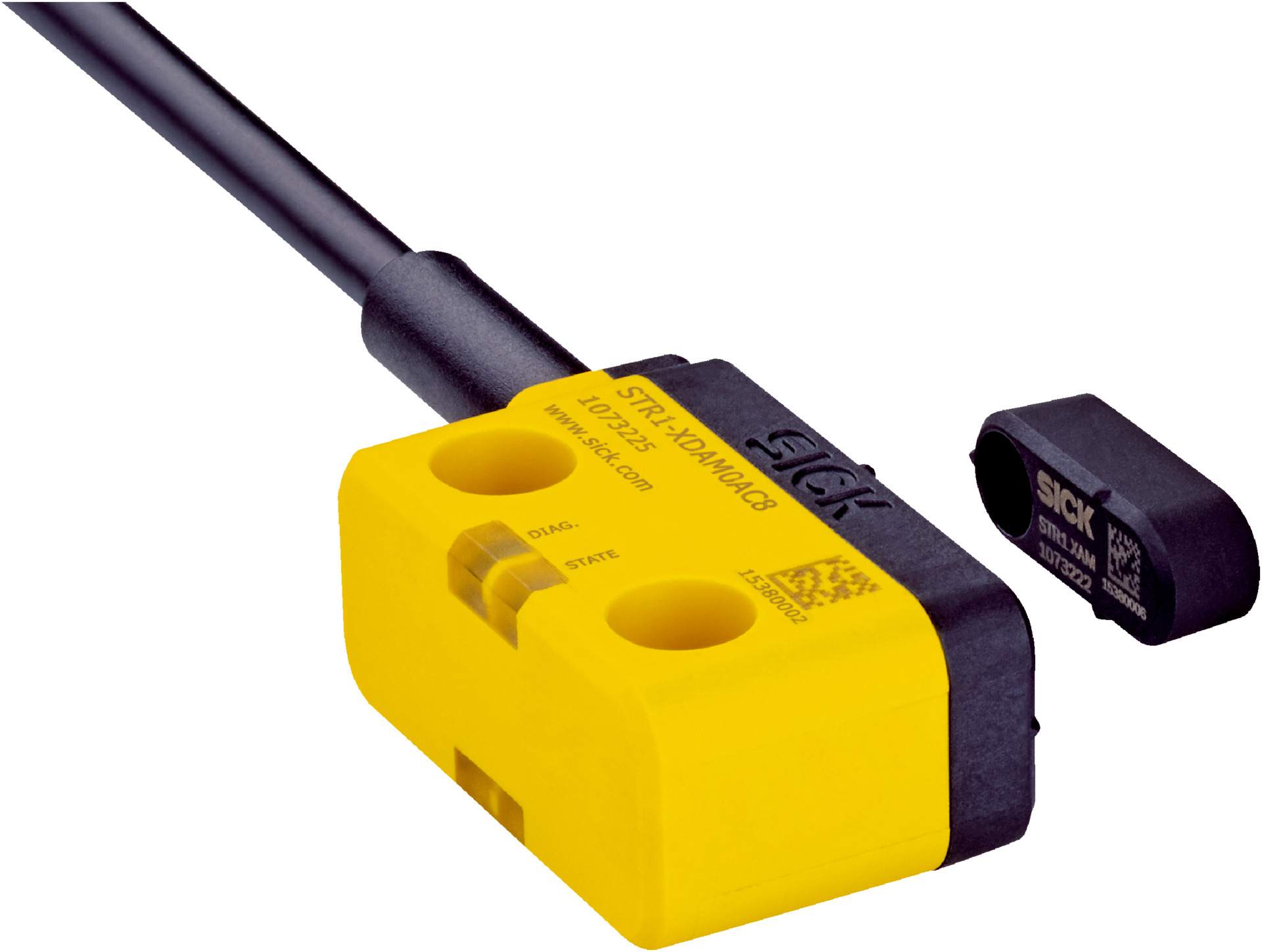

RFID Safety Sensor STR1-SAMU0AC5 | Two Safe Outputs | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAMU0AC5 is designed for industrial safety systems, featuring two safe outputs and a uniquely coded actuator for enhanced security. With a robust IP67 and IP69K rating, it operates effectively in harsh environments, making it ideal for machine safety monitoring and automation systems that require high safety integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior to OSSDs)
- Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Uniquely coded actuator
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state on fault: At least one safety-related semiconductor output OFF
- Connection type: Cable with M12, 5-pin plug
- Cable length: 0.2 m
- Max long connecting cable: ≤ 200 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 to 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- RFID sensor with actuator system
- Two safe outputs with one auxiliary contact
- Uniquely coded actuator for high security
- Assured switch on distance up to 14 mm
- High safety integrity level SIL 3 and Category 4
- Safe series connection with Flexi Loop and diagnostics
- LED display elements with diagnostics and status indicators
- Robust housing with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 50 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK STR1-SAMU0AC5 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
