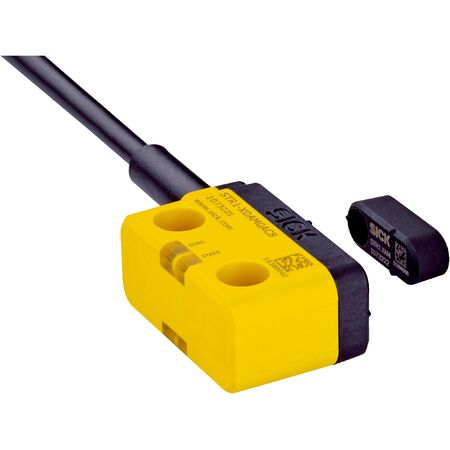

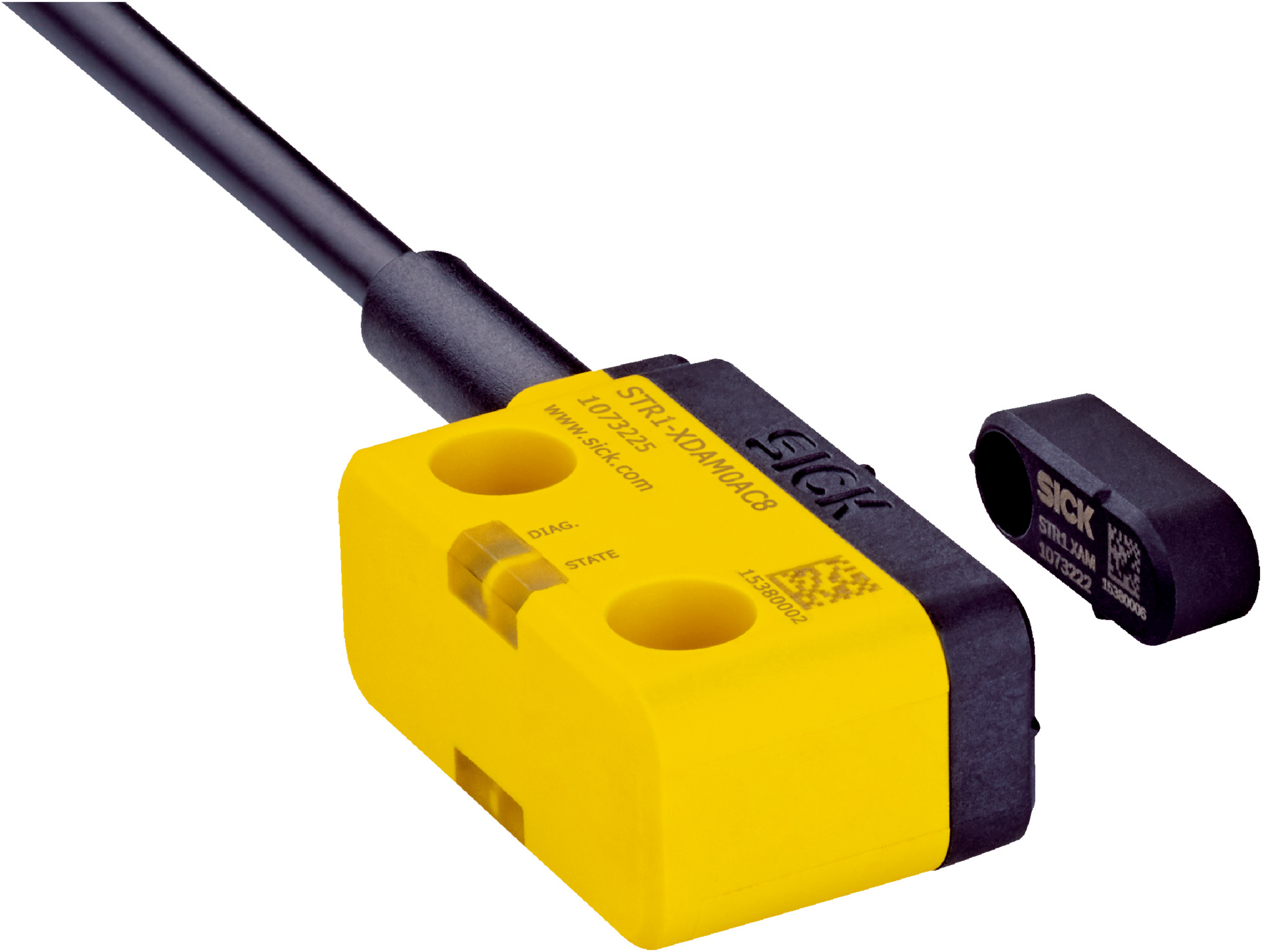

RFID Safety Sensor STR1-SAMU10P8 | IP67 & IP69K Rated | SIL 3 Safety Level | by SICK
The RFID Safety Sensor STR1-SAMU10P8 is designed for industrial safety systems, featuring a uniquely coded actuator and two safe outputs. With an IP67/IP69K rated enclosure, it ensures reliable operation in harsh environments, making it ideal for machine safety monitoring and automation systems that require high safety integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.453 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance of 14 mm (–10 to +70 °C) and 10 mm (–30 to –10 °C)
- Assured switch off distance of 28 mm
- Three active sensor surfaces (top, left and right sides)
- Five actuation directions supported
- High safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Safe state maintained with at least one safety-related semiconductor output off in fault conditions
- Safe series connection with diagnostics in control cabinet
- LED display elements with diagnostics and status indicators
- Protection class III and Class 2 electrical classification
- Operating voltage 24 V DC with 50 mA power consumption
- Response time 40 ms, release time 100 ms, risk time 80 ms
- Robust housing made of VISTAL® material
- IP67 and IP69K rated enclosure for harsh environments
- Wide ambient operating temperature range from –30 °C to +70 °C
- Vibration and shock resistant per IEC standards
Professional Installation Requirements
- Installation by qualified personnel trained in safety sensor systems is recommended to ensure compliance with safety standards and proper operation.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable IP67/IP69K rated housing reduces need for frequent replacements
- Low power consumption (50 mA) supports energy efficiency
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK STR1-SAMU10P8 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
