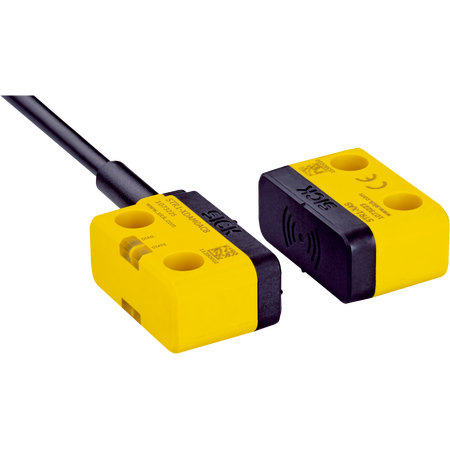

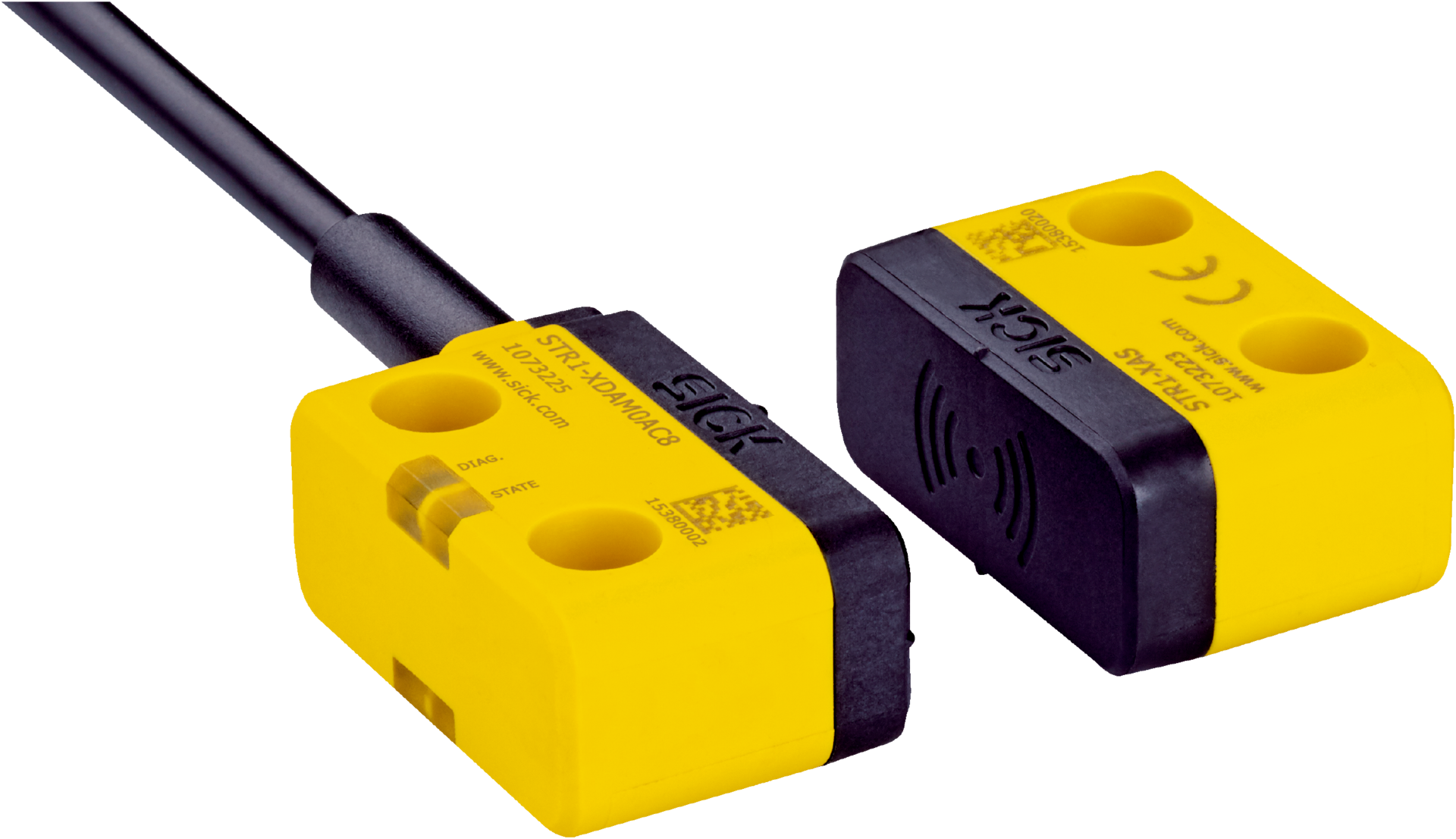

RFID Safety Sensor STR1-SASF0AC5 | SIL 3 Safety Integrity | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SASF0AC5 is designed for industrial safety systems, featuring a SIL 3 safety integrity level and robust IP67/IP69K enclosure rating. With two safe outputs and a 10 mm assured switch-on distance, it ensures reliable machine safety monitoring and control. Ideal for automation systems requiring high safety integrity, this sensor is built to withstand harsh environments while providing diagnostics and status displays.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Sensor, Safety Sensor with Actuator, Industrial RFID Sensor, SICK Safety Sensor STR1
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior)
- Assured switch on distance (Sao): 10 mm (-30 °C to +70 °C)
- Assured switch off distance (Sar): 25 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Permanently coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state on fault: At least one OSSD output OFF
- Connection type: Cable with M12, 5-pin plug
- Cable length: 0.2 m, max 200 m extension
- Cable diameter: 5.5 mm, conductor cross section 0.12 mm²
- Cable material: PVC, conductor copper
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- RFID sensor principle with permanently coded actuator
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance of 10 mm and switch off distance of 25 mm
- High safety integrity level SIL 3 and Category 4 safety classification
- Safe series connection capability with Flexi Loop including diagnostics
- LED display elements with diagnostics indicator and status display
- Robust housing material VISTAL® with IP67 and IP69K enclosure rating
- Wide ambient operating temperature range from -30 °C to +70 °C
- Shock resistance of 30 g and vibration resistance compliant with IEC standards
Professional Installation Requirements
- Installation by qualified personnel trained in safety sensor systems is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 50 mA supports energy-efficient operation
- Robust protection against environmental factors extends product lifespan
Warranty Information
Warranty details available upon request from SICK, typically covering manufacturing defects for a standard period.
Available Now
The SICK STR1-SASF0AC5 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety integrity.
