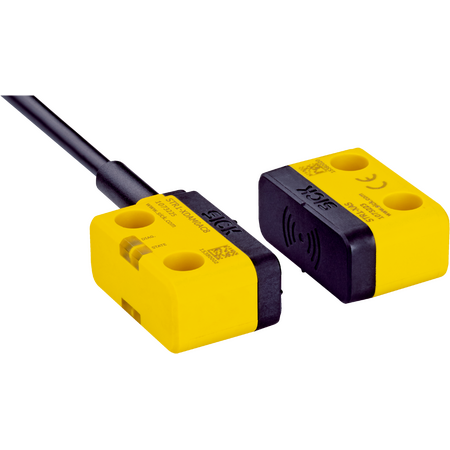

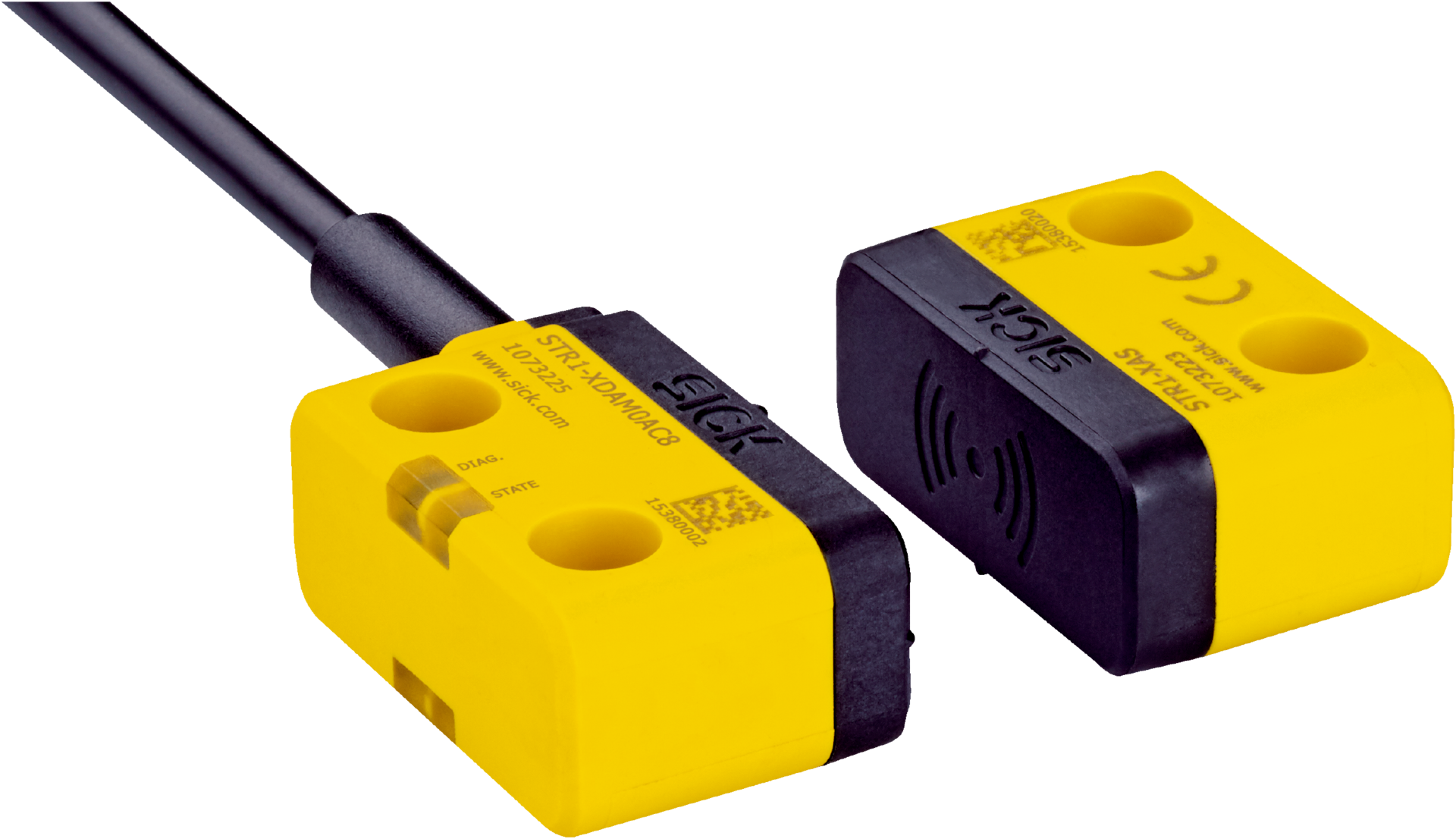

RFID Safety Sensor STR1-SASM10P8 | SIL 3 & Category 4 | IP67/IP69K Rated | by SICK

BRAND: SICK
SKU: 1069569
$476.00 List price: $598.30
+ −
30 Days Return Electricians Unlock Trade Access
The RFID Safety Sensor STR1-SASM10P8 is designed for industrial safety systems, featuring two safe outputs and one auxiliary contact. With a robust IP67/IP69K rated enclosure and a wide operating temperature range of -30 °C to +70 °C, this sensor ensures reliable performance in demanding environments. Ideal for machine safety monitoring and automation systems, it offers a long mission time of 20 years and low power consumption for energy-efficient operation.

Alternatively Known As: RFID Safety Sensor, RFID Actuator Sensor, Industrial Safety Sensor, SICK Safety Sensor STR1-SASM10P8

Technical Specifications
  • Sensor principle: RFID
  • Number of safe outputs: 2
  • Auxiliary contact: 1 (switching behavior complementary to OSSDs)
  • Assured switch on distance Sao: 10 mm (–30 °C to +70 °C)
  • Assured switch off distance Sar: 25 mm
  • Active sensor surfaces: 3 (top, left, right sides)
  • Actuation directions: 5
  • Coding: Universally coded
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • PFHD: 5.21 x 10^-9
  • Mission time: 20 years (EN ISO 13849)
  • Type: Type 4 (EN ISO 14119)
  • Actuator coding level: Low coding level (EN ISO 14119)
  • Safe state in fault: At least one safety-related semiconductor output (OSSD) is OFF
  • Connection type: Cable, 7-wire, 10 m length
  • Cable diameter: 5.5 mm, conductor cross section: 0.12 mm²
  • Cable material: PVC, conductor material: Copper
  • Protection class: III (IEC 61140)
  • Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
  • Power consumption: 50 mA
  • Output current: ≤ 100 mA
  • Response time: 40 ms
  • Release time: 100 ms
  • Risk time: 80 ms
  • Switch-on time: 2.5 s
  • Enclosure rating: IP67, IP69K
  • Operating temperature: –30 °C to +70 °C
  • Vibration resistance: 10 Hz to 55 Hz, 1 mm
  • Shock resistance: 30 g, 11 ms
  • EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
  • Dimensions (H x L x W): 18mm x 26mm x 40mm
  • Weight: 0.475 kg
Key Features
  • Sensor with actuator using RFID principle
  • Two safe outputs with one auxiliary contact
  • Universally coded with five actuation directions
  • Assured switch on distance of 10 mm and switch off distance of 25 mm
  • Three active sensor surfaces (top, left, right sides)
  • Safety integrity level SIL 3 and Category 4 compliance
  • Self-monitoring semiconductor outputs (OSSDs)
  • LED display elements with diagnostics and status indicators
  • Protection class III and IP67, IP69K rated enclosure
  • Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and optimal performance.
Applications
  • Industrial safety systems requiring RFID sensor technology
  • Machine safety monitoring and control
  • Automation systems with safety output requirements
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable housing and long mission time of 20 years reduce waste and replacement frequency
  • Low power consumption of 50 mA supports energy-efficient operation
  • Compliant with China RoHS and ECOLAB standards for environmental safety
Warranty Information

Warranty details available upon request from manufacturer or distributor.

Available Now

The SICK STR1-SASM10P8 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
