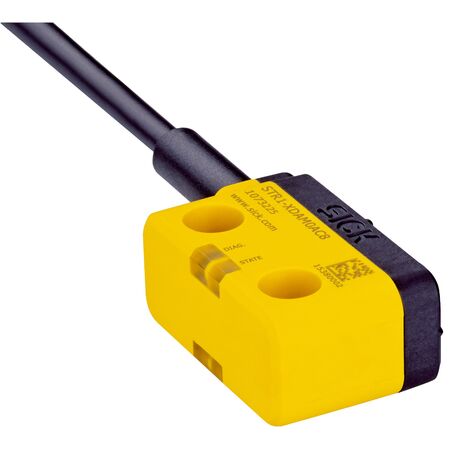

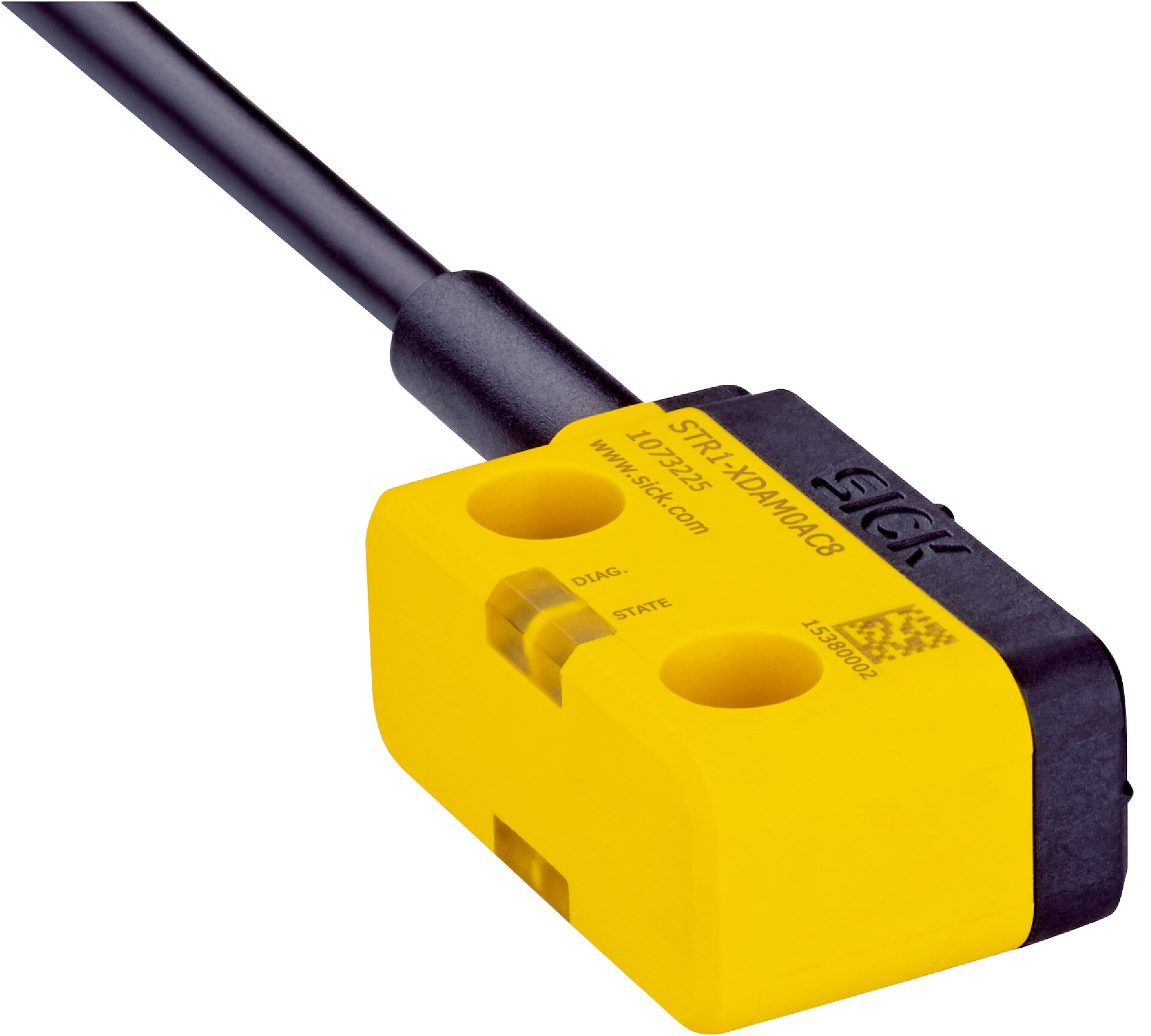

RFID Safety Sensor STR1-SAXF03P5 | SIL 3 Safety Level | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAXF03P5 is designed for industrial safety monitoring and machine guarding, featuring a SIL 3 safety integrity level and robust IP67/IP69K ratings for harsh environments. With two safe semiconductor outputs and a permanently coded actuator, it ensures reliable operation in automation systems requiring high safety integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2 (OSSD semiconductor outputs)
- Auxiliary contact: 1 (complementary switching behavior)
- Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Permanently coded actuator
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state on fault: At least one OSSD output OFF
- Connection type: 5-wire cable, 3 m length
- Cable diameter: 5.5 mm, conductor cross section 0.12 mm²
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 to 28.8 V DC)
- Power consumption: 50 mA
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.14 kg
Key Features
- RFID sensor principle with permanently coded actuator
- Two safe semiconductor outputs (OSSD) plus one auxiliary contact
- Assured switch on distance up to 14 mm and switch off distance 28 mm
- High safety integrity level SIL 3 and Category 4 compliance
- IP67 and IP69K rated for harsh environments
- LED status display and diagnostics indicator for easy monitoring
- Robust VISTAL® housing material
- Wide ambient operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (50 mA) supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK STR1-SAXF03P5 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and machine guarding applications.
