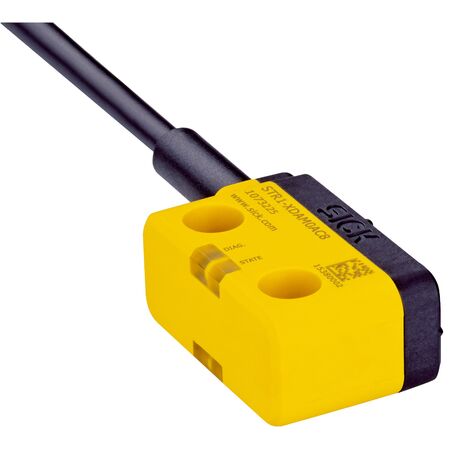

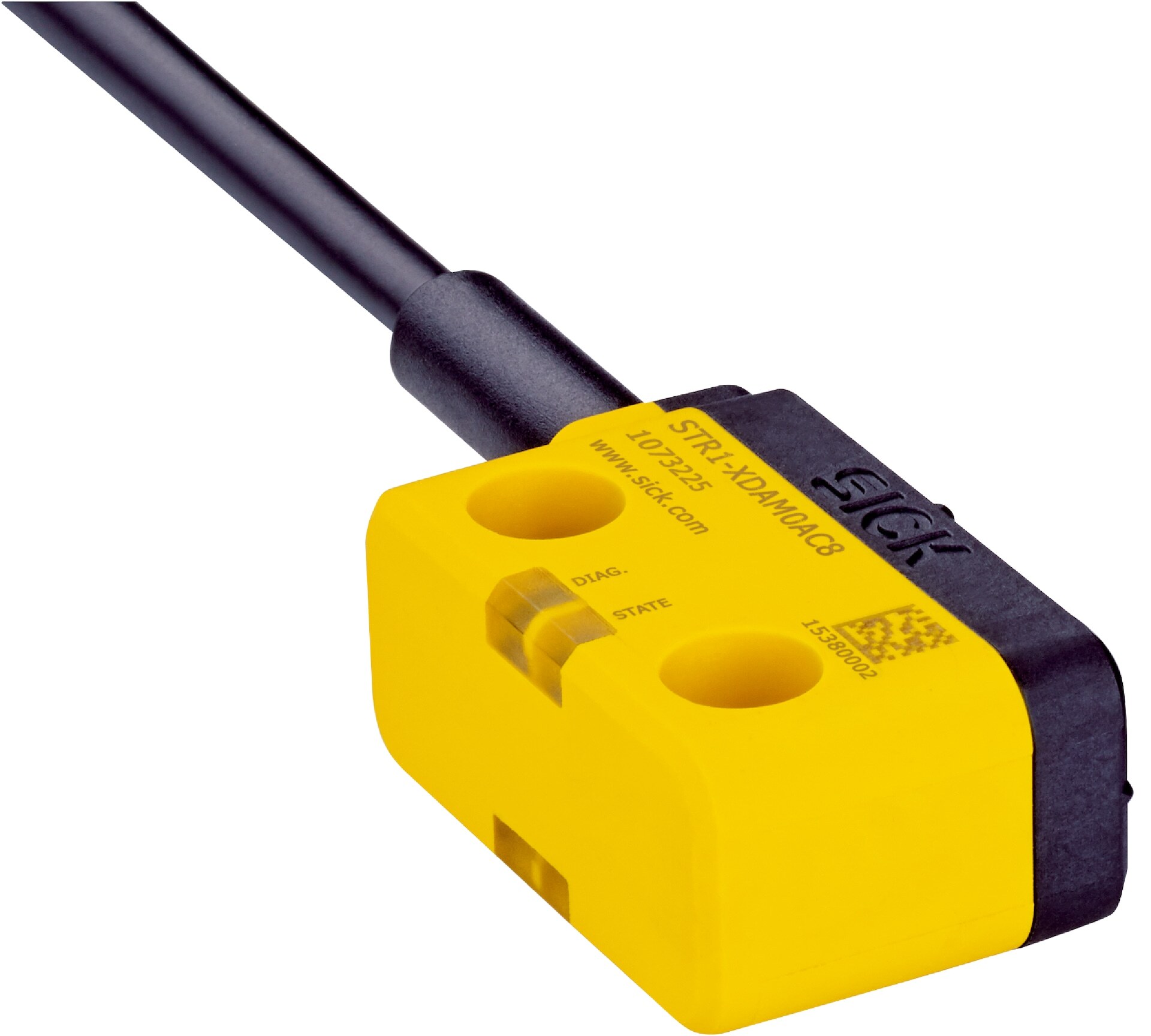

RFID Safety Sensor STR1-SAXU03P8 | SIL 3 & Category 4 Compliance | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor STR1-SAXU03P8 is designed for industrial safety systems, featuring a uniquely coded RFID sensor principle with two safe outputs and one auxiliary contact. With a high safety integrity level of SIL 3 and robust IP67/IP69K protection, this sensor is perfect for machine safety monitoring and automation systems requiring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior to OSSDs)
- Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left and right sides)
- Actuation directions: 5
- Coding: Uniquely coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High
- Safe state on fault: At least one safety-related semiconductor output OFF
- Connection type: Cable, 7-wire, 3 m length
- Cable diameter: 5.5 mm, conductor cross section: 0.12 mm²
- Cable material: PVC, conductor material: Copper
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 - 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.17 kg
Key Features
- RFID sensor principle with uniquely coded actuation
- Two safe outputs and one auxiliary contact with complementary switching behavior
- High safety integrity level SIL 3 and Category 4 compliance
- Safe series connection with diagnostics in control cabinet
- LED display elements with diagnostics and status indicators
- Robust housing material VISTAL® with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 50 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK STR1-SAXU03P8 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
