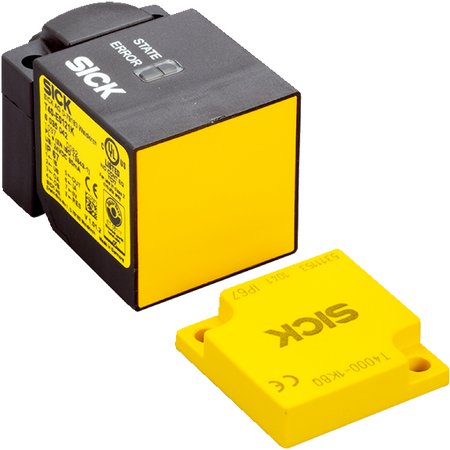

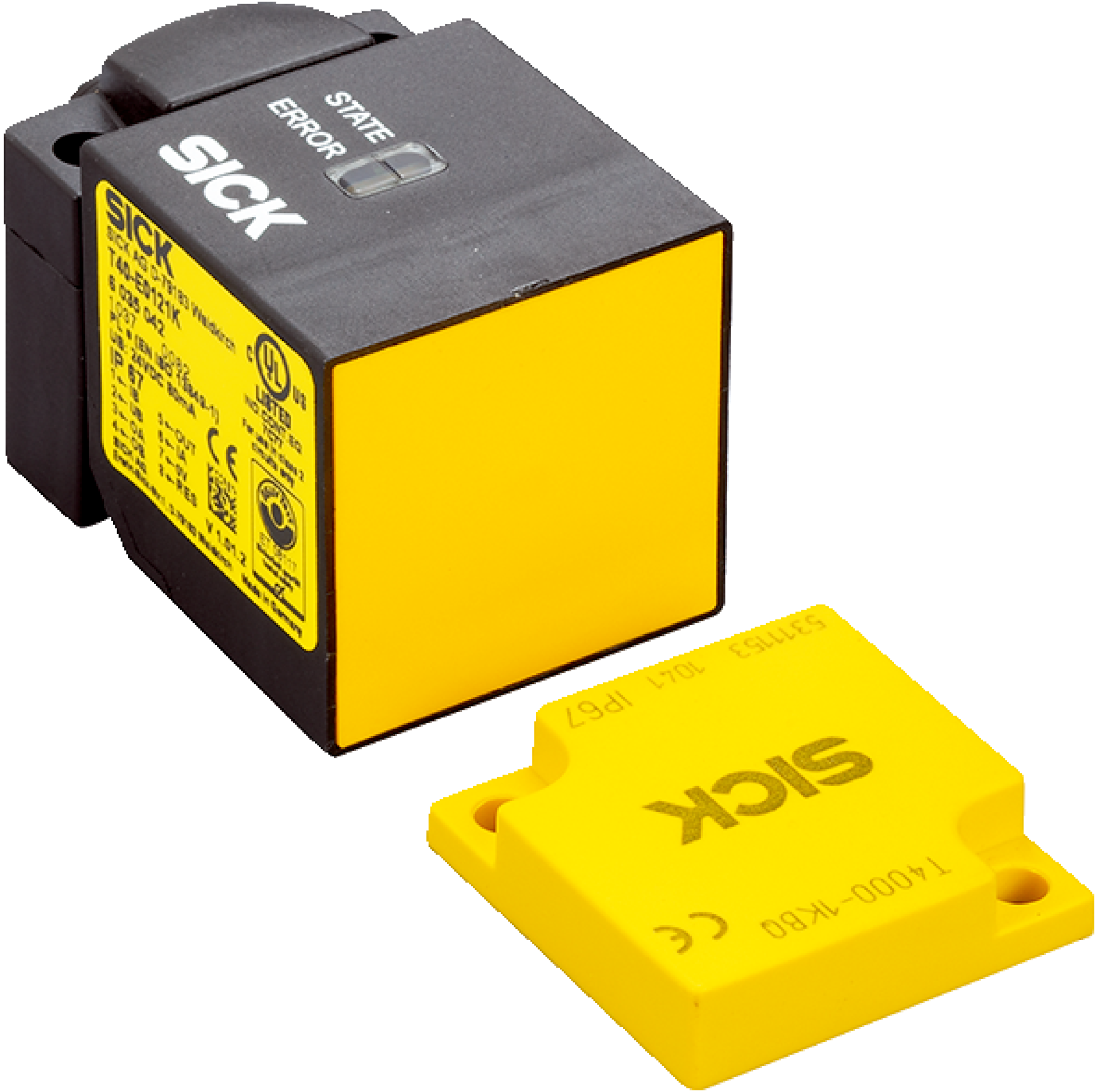

RFID Safety Sensor T40-E0101K | Category 4 Safety | IP67 Rated | Universally Coded | by SICK
The RFID Safety Sensor T40-E0101K is designed for industrial safety monitoring and machine guarding, featuring universally coded actuation and two safe outputs for enhanced safety. With an IP67 rated enclosure, it withstands harsh environments, making it ideal for access control in automated systems and safety interlocking in manufacturing settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Sensor, Safety Interlock Sensor, Industrial Safety Sensor, SICK RFID Sensor
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance Sao: 15 mm to 19 mm
- Assured switch off distance Sar: 45 mm to 55 mm
- Monitoring time minimum dwell time: ≥ 0.5 s
- Coding: Universally coded
- Safety category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 2.1 x 10^-9
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Plug connector, M12, 8-pin
- Long connecting cable: ≤ 200 m
- Coupling nut material: Fiber-glass-reinforced polyamide
- Protection class: III
- Rated operating current: 0.4 A (24 V DC)
- Rated insulation voltage Ui: 75 V
- Rated impulse withstand voltage Uimp: 1,500 V AC
- Supply voltage Vs: 24 V DC (20.4 V DC ... 27.6 V DC)
- Power consumption: 80 mA
- Response time: ≤ 290 ms
- Switch-on time: 10 s
- Housing material: Plastic PTB VO GF30
- Enclosure rating: IP67
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +70 °C
- Dimensions (H x L x W): 57mm x 40mm x 40mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle with universally coded actuation
- Two safe outputs for enhanced safety
- Assured switch on distance Sao up to 19 mm
- Assured switch off distance Sar up to 55 mm
- Category 4 safety with Performance Level PL e
- Self-monitoring semiconductor outputs (OSSDs)
- IP67 rated enclosure for harsh environments
- Status and error indication displays
- Rectangular design with plastic PTB VO GF30 housing
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in automated systems
- Safety interlocking in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 80 mA reduces energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK T40-E0101K RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and machine guarding applications.
