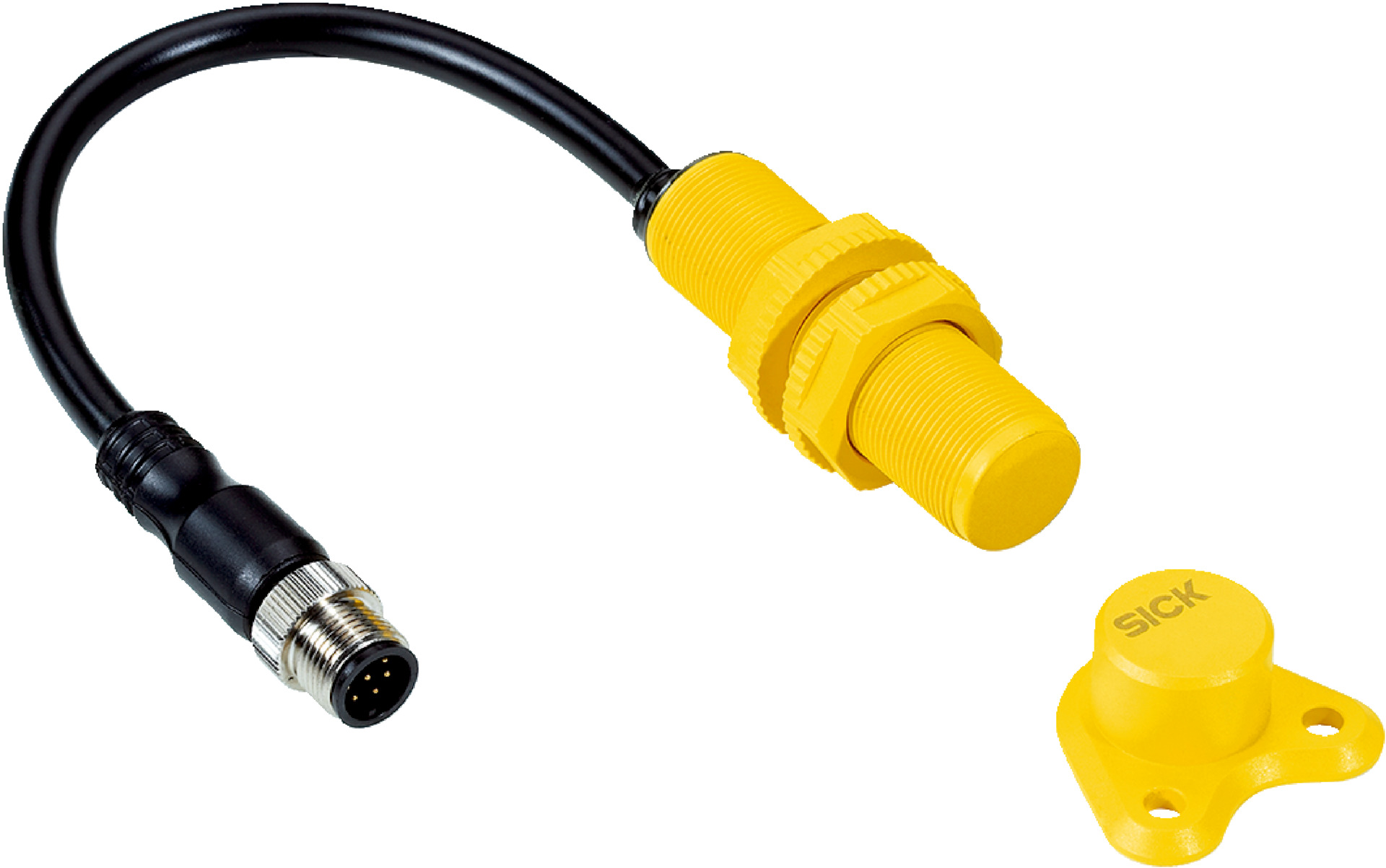

RFID Safety Sensor TR4-SAM01CB | SIL 3 Compliant | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor TR4-SAM01CB is designed for industrial safety systems, featuring a SIL 3 compliance and robust IP67/IP69K rating for harsh environments. With two safe outputs and a universally coded actuator, it ensures reliable machine safety monitoring and control, making it ideal for automation systems with stringent safety integrity requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Long connecting cable max length: ≤ 200 m
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- IO-Link Safety OFDT: ≤ 100 ms
- Display elements: LEDs with status display
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Housing diameter: M18
- Weight: 62 g
- Enclosure rating: IP67, IP69K
- Operating temperature: -25°C to +70°C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- RFID sensor principle with universally coded actuator
- Two safe outputs with assured switch on distance of 15 mm and switch off distance of 25 mm
- Safety integrity level SIL 3 compliant (IEC 61508)
- Category 4 safety (EN ISO 13849) with Performance Level e
- Safe series connection capability with Flexi Loop and T-connector
- Self-monitoring semiconductor outputs (OSSDs)
- LED status display for operational feedback
- Robust cylindrical design with Valox® DR48 housing
- Protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SAM01CB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
