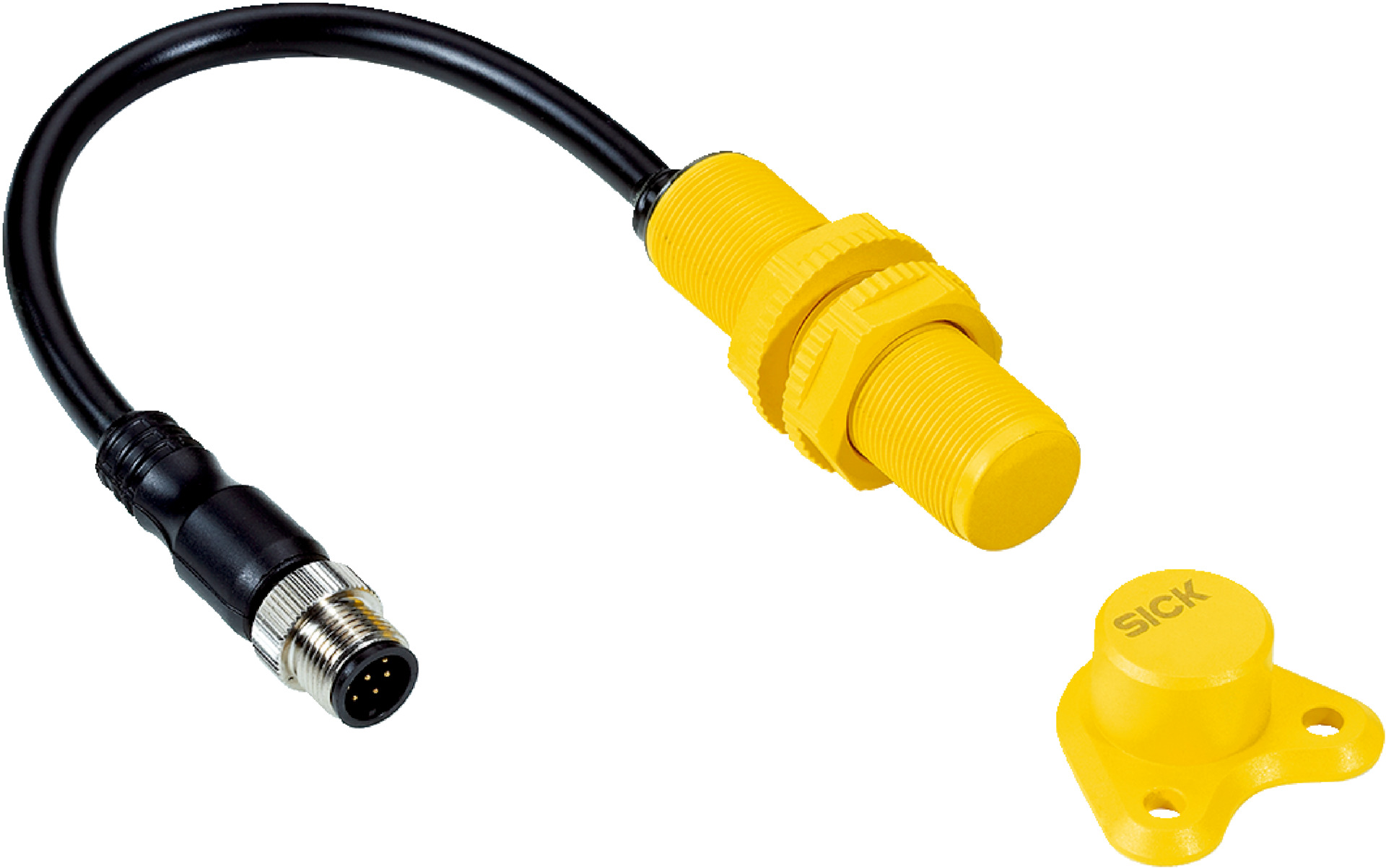

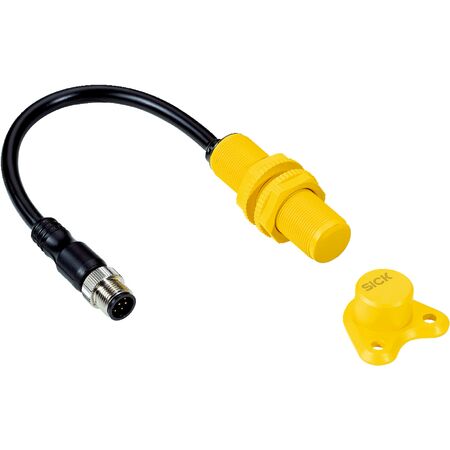

RFID Safety Sensor TR4-SAM02CB | SIL 3 Safety Level | IP67/IP69K Rated | by SICK
The RFID Safety Sensor TR4-SAM02CB is designed for industrial safety systems, featuring a robust actuator system with two safe outputs and a SIL 3 safety integrity level. With an assured switch on distance of 15 mm and a switch off distance of 25 mm, this sensor is perfect for machine safety monitoring and automation systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Classification IEC/EN 60947-5-3: PDF-M
- Safe state on fault: At least one OSSD off
- Connection type: Cable with plug M12, 5-pin
- Cable length: 0.2 m
- Long connecting cable max: ≤ 200 m
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- IO-Link Safety OFDT: ≤ 100 ms
- Display elements: LEDs with status display
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Design: Cylindrical
- Housing diameter: M18 sensor and actuator
- Housing material: Valox® DR48
- Enclosure rating: IP67 (IEC 60529), IP69K (ISO 20653)
- Operating temperature: -25°C to +70°C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- RFID sensor with actuator system
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Universally coded with low actuator coding level
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- Safety integrity level SIL 3 and Category 4 safety classification
- Performance level PL e with a mean probability of dangerous failure per hour (PFHD) of 6.03 x 10^-10
- Safe series connection capability with Flexi Loop and diagnostics
- LED status display for operational feedback
- Protection class III and IP67/IP69K rated for harsh environments
- Operating temperature range from -25°C to +70°C
- Robust mechanical design with Valox® DR48 housing material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SAM02CB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
