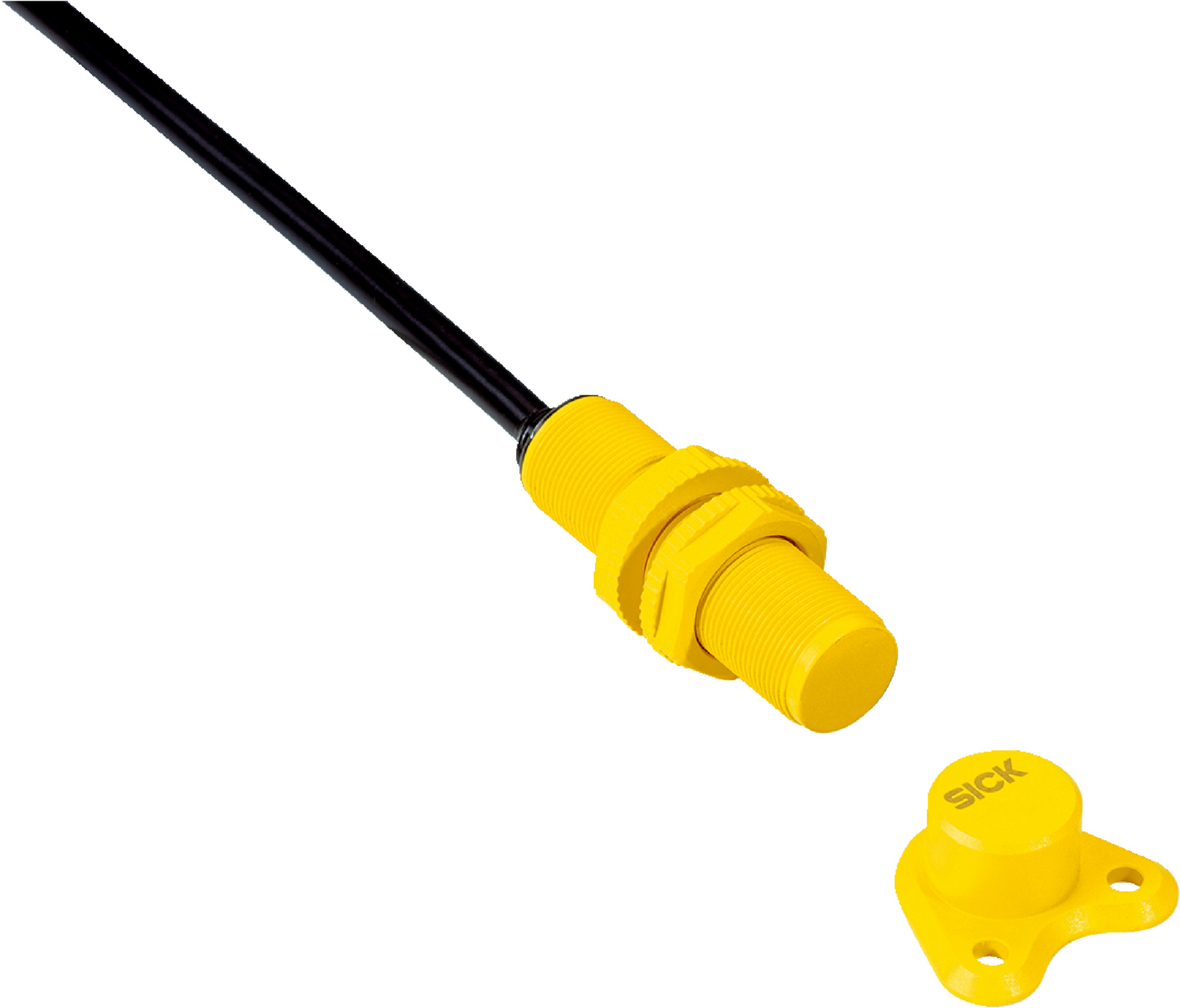

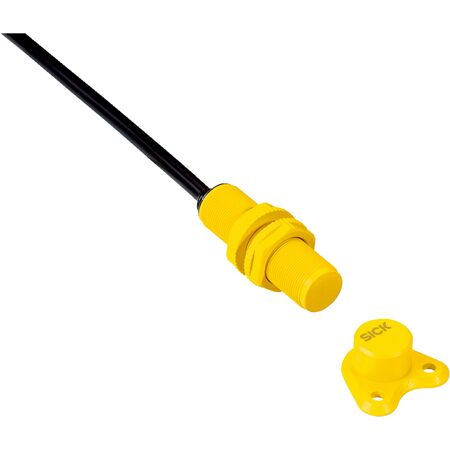

RFID Safety Sensor TR4-SAM03PB | 2 Safe Outputs | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor TR4-SAM03PB features a robust design with 2 safe outputs, ensuring reliable performance in industrial safety systems. With an assured switch on distance of 15 mm and a switch off distance of 25 mm, this sensor is perfect for machine safety monitoring and automation systems. Its IP67 and IP69K rated enclosure makes it suitable for harsh environments, providing peace of mind in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one OSSD off
- Connection type: Cable, 3 m length, PVC material
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed: > 7 x cable diameter
- Bend radius moving: > 14 x cable diameter
- Supply voltage: 24 V DC (20.4 - 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Protection class: III (EN 50178)
- Classification cULus: Class 2
- Housing diameter: M18 sensor and actuator
- Housing material: Valox® DR48
- Enclosure rating: IP67 (IEC 60529), IP69K (ISO 20653)
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 18mm x 60mm x 18mm
- Weight: 0.218 kg
Key Features
- RFID sensor principle with 2 safe outputs
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- Universally coded actuator with 5 actuation directions
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs)
- IP67 and IP69K rated enclosure for harsh environments
- LED status display for operational feedback
- Cable connection with 3 m length and PVC material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and long electrical life reduce waste and replacement frequency
- Low power consumption (≤ 50 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SAM03PB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
