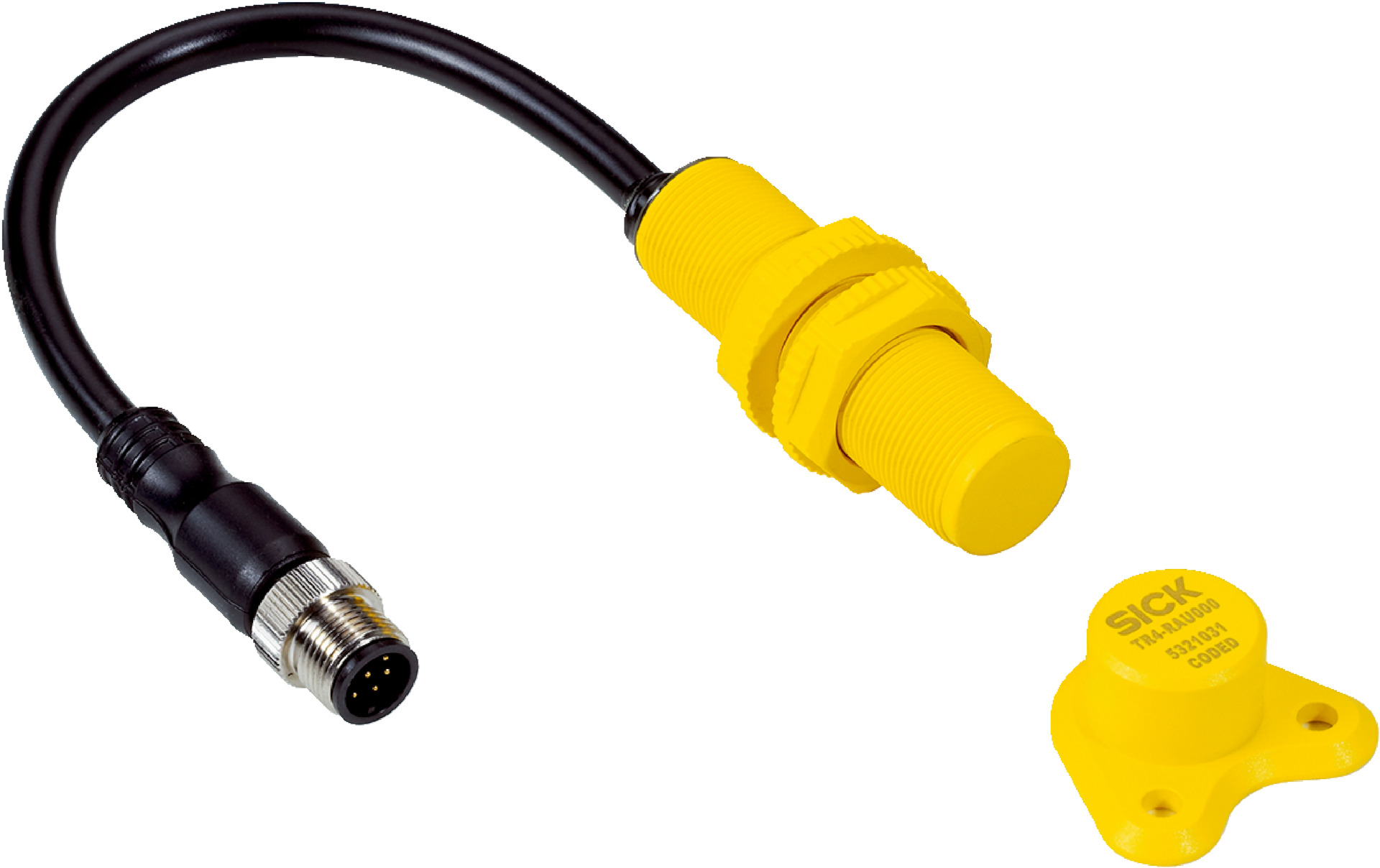

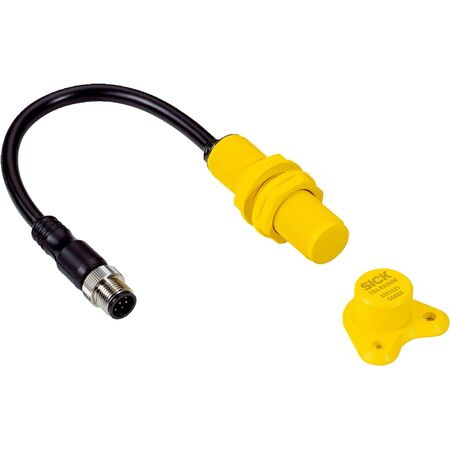

RFID Safety Sensor TR4-SAU01CB | SIL 3 Safety Integrity | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor TR4-SAU01CB is designed for industrial safety systems, featuring a SIL 3 safety integrity level and robust IP67/IP69K protection. With two self-monitoring semiconductor outputs and a uniquely coded actuator, it ensures reliable machine safety monitoring and automation applications, making it ideal for environments requiring high safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2 self-monitoring semiconductor outputs (OSSDs)
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Actuation directions: 5
- Coding: Uniquely coded actuator
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Connection type: Cable with plug M12, 8-pin, 0.2 m length
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Housing diameter: M18
- Housing material: Valox® DR48
- Protection class: III (EN 50178)
- Enclosure rating: IP67, IP69K
- Operating temperature: -25°C to +70°C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Two safe semiconductor outputs (OSSDs)
- Assured switch on distance 15 mm and switch off distance 25 mm
- High safety integrity level SIL 3 and Category 4 compliance
- Safe series connection with Flexi Loop and T-connector
- LED status display for operational feedback
- Robust cylindrical design with Valox® DR48 housing
- Protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -25°C to +70°C
- Shock resistance up to 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring with high safety integrity
- Automation systems needing reliable safe outputs and diagnostics
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TR4-SAU01CB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety integrity.
