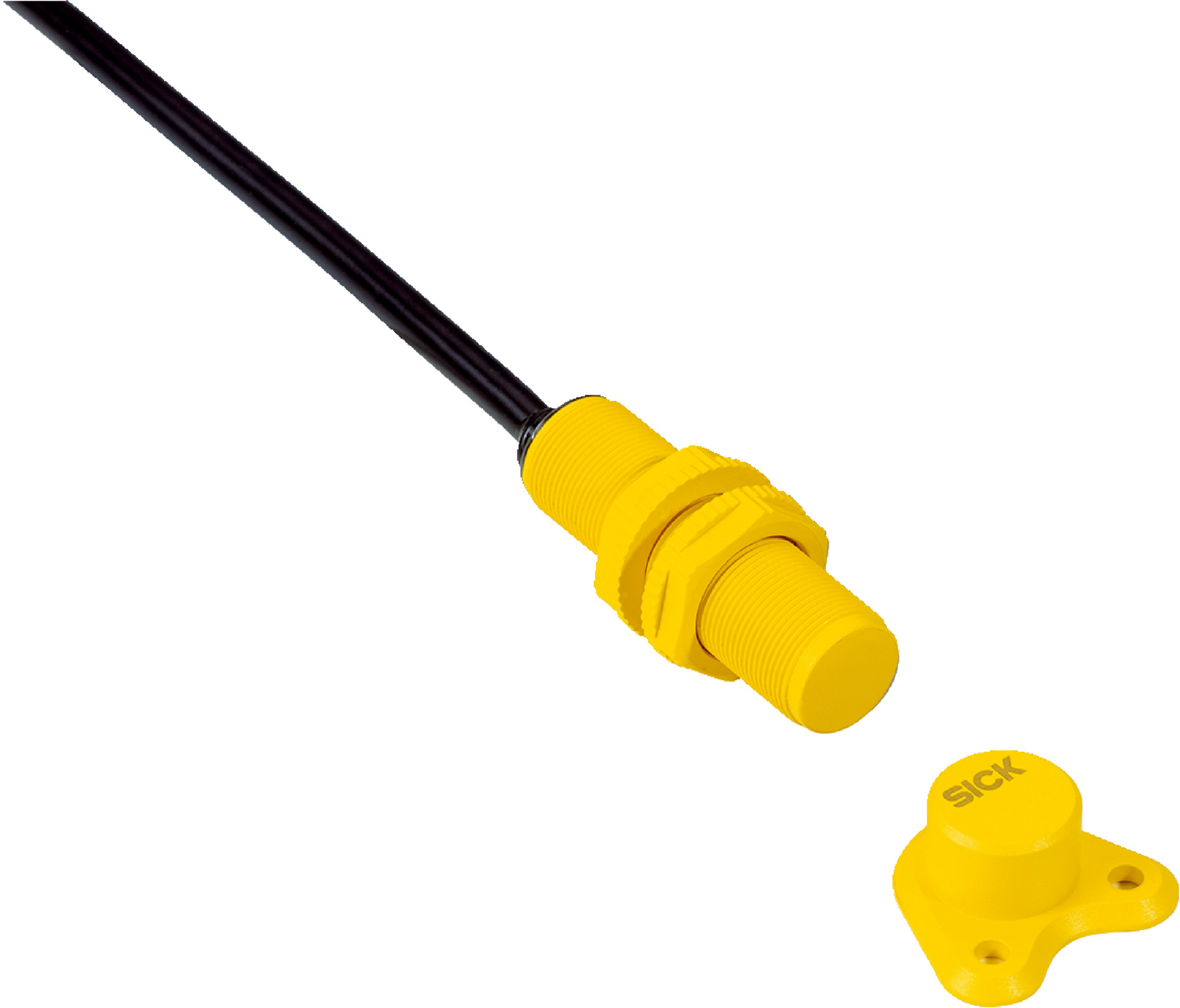

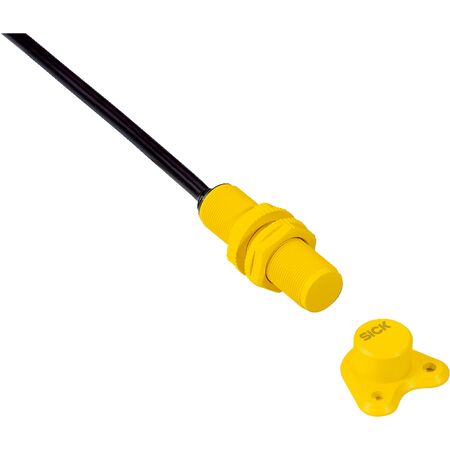

RFID Safety Sensor TR4-SAU10PB | SIL 3 & Category 4 | IP67/IP69K Rated | by SICK
The RFID Safety Sensor TR4-SAU10PB is designed for industrial safety monitoring and control, featuring a uniquely coded actuator and two safe semiconductor outputs. With a high safety integrity level of SIL 3 and IP67/IP69K ratings, this sensor is perfect for machine guarding and automation systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Actuation directions: 5
- Coding: Uniquely coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Connection type: Cable, 10 m length
- Cable diameter: 6.5 mm, PVC material
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Electrical life: 10 million switching cycles
- Protection class: III (EN 50178)
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +70 °C
- Housing material: Valox® DR48
- Dimensions (H x L x W): 60mm x 18mm x 18mm
- Weight: 0.635 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Two safe semiconductor outputs (OSSDs)
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- High safety integrity level SIL 3 and Category 4 compliance
- IP67 and IP69K rated for harsh environments
- LED status display for operational feedback
- Self-monitoring semiconductor outputs with fast response time
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring and control
- Machine guarding and access control
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TR4-SAU10PB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
