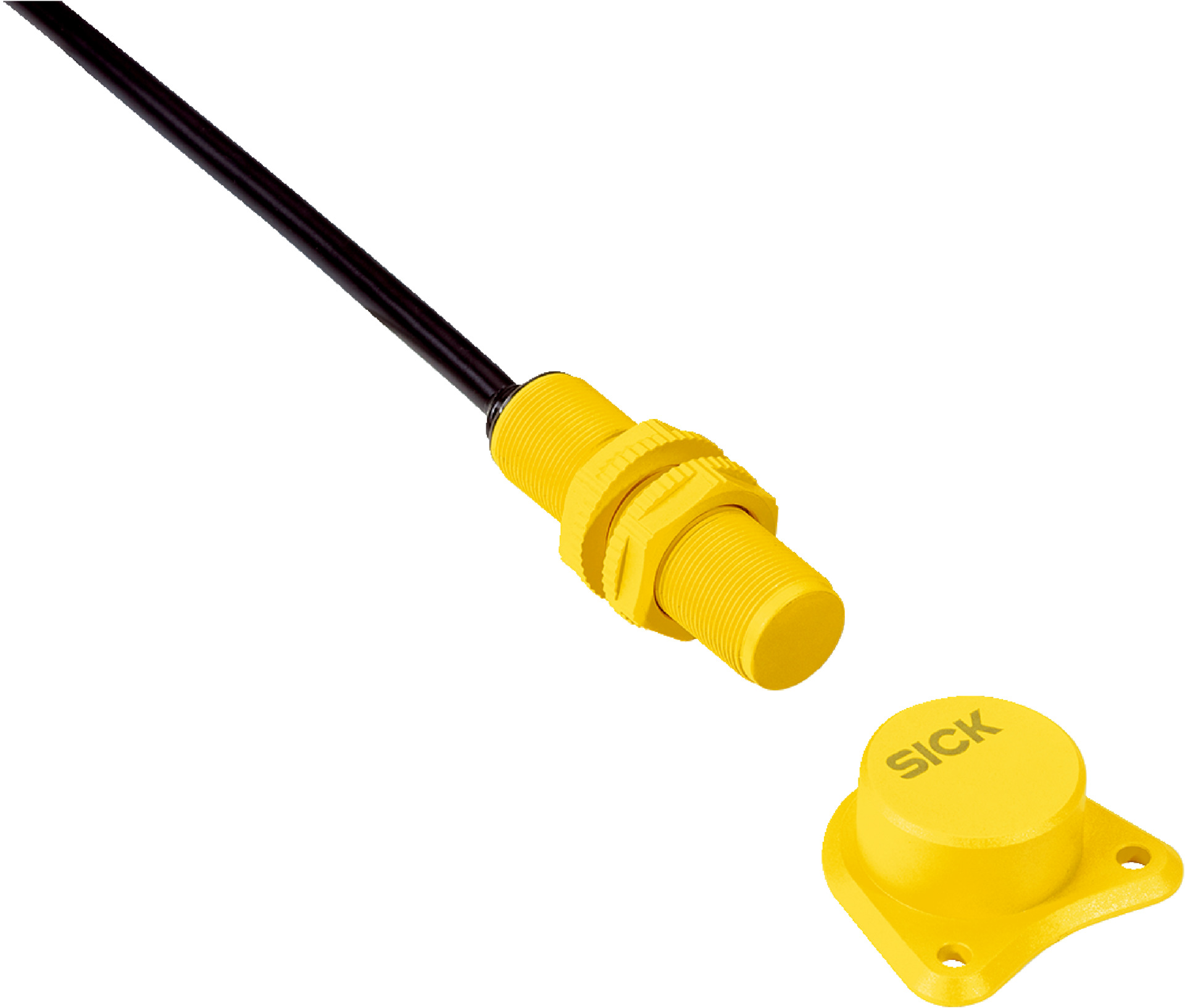

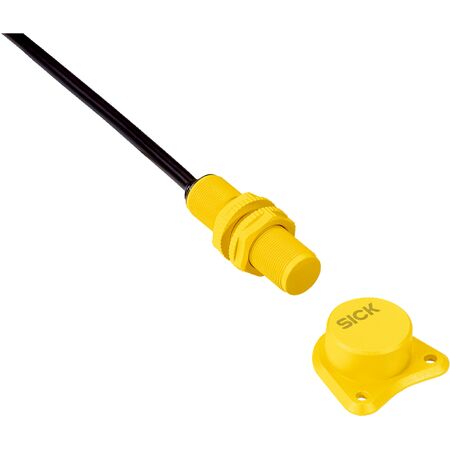

RFID Safety Sensor TR4-SBM03PB | SIL 3 Safety Level | IP67/IP69K Rated | 5 Actuation Directions | by SICK
The RFID Safety Sensor TR4-SBM03PB is designed for industrial safety applications, featuring a robust actuator system with two safe outputs and a universally coded actuator. With a safety integrity level of SIL 3 and IP67/IP69K rating, it ensures reliable performance in harsh environments, making it ideal for machine safety monitoring and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 25 mm
- Assured switch off distance (Sar): 35 mm
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Classification IEC/EN 60947-5-3: PDF-M
- Safe state on fault: At least one OSSD off
- Connection type: Cable, 3 m length, PVC material
- Cable diameter: 6.5 mm, Conductor cross section: 0.25 mm²
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (20.4 - 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Housing diameter: M18 (sensor) / M30 (actuator)
- Weight: 237 g
- Enclosure rating: IP67 (IEC 60529), IP69K (ISO 20653)
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 18mm x 60mm x 30mm
- Weight: 0.237 kg
Key Features
- RFID sensor with actuator system
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Universally coded actuator with 5 actuation directions
- Assured switch on distance of 25 mm and switch off distance of 35 mm
- Safety integrity level SIL 3 and Category 4 compliance
- LED status display for operational feedback
- Robust cylindrical design with Valox® DR48 housing
- Protection class III and IP67/IP69K rated for harsh environments
- Operating temperature range from -25 °C to +70 °C
- Cable connection with 3 m length and PVC insulation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption (≤ 50 mA) supports energy-efficient operation
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK TR4-SBM03PB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
