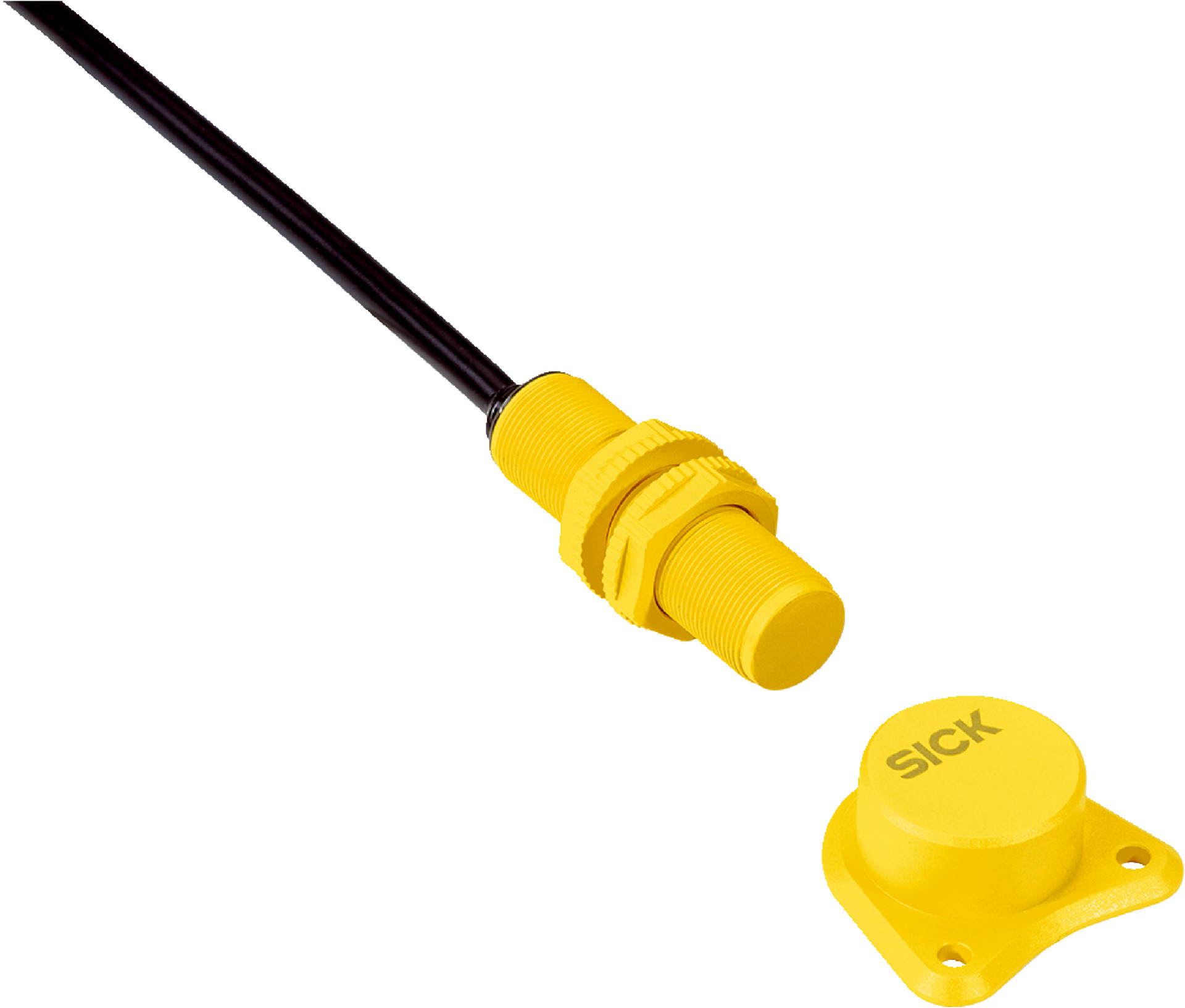

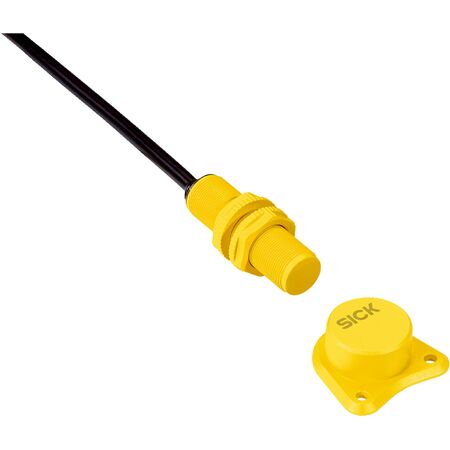

RFID Safety Sensor TR4-SBM10PB | SIL 3 & Category 4 Compliance | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor TR4-SBM10PB is designed for industrial safety monitoring and control, featuring a SIL 3 safety integrity level and Category 4 compliance. With 2 safe outputs, a 25 mm assured switch on distance, and an IP67/IP69K rated enclosure, it’s perfect for machine guarding and automation applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 25 mm
- Assured switch off distance (Sar): 35 mm
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one OSSD off
- Connection type: Cable, 10 m length, PVC material
- Supply voltage: 24 V DC (20.4 - 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Protection class: III (EN 50178)
- Classification cULus: Class 2
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Housing diameter: M18 / M30
- Housing material: Valox® DR48
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.654 kg
Key Features
- RFID sensor principle with 2 safe outputs
- Assured switch on distance of 25 mm and switch off distance of 35 mm
- Universally coded actuator with 5 actuation directions
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs)
- IP67 and IP69K rated enclosure for harsh environments
- LED status display for operational feedback
- Robust cylindrical design with Valox® DR48 housing
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring and control
- Machine guarding and automation
- Safety-related position detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR4-SBM10PB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
