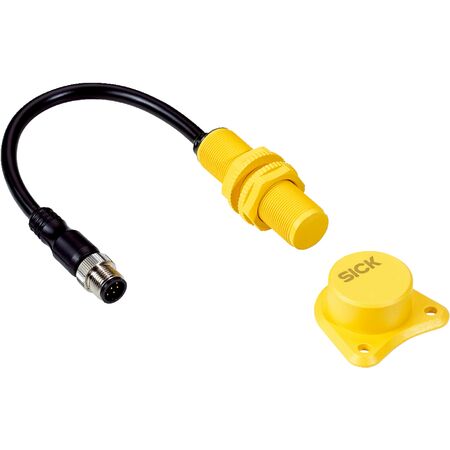

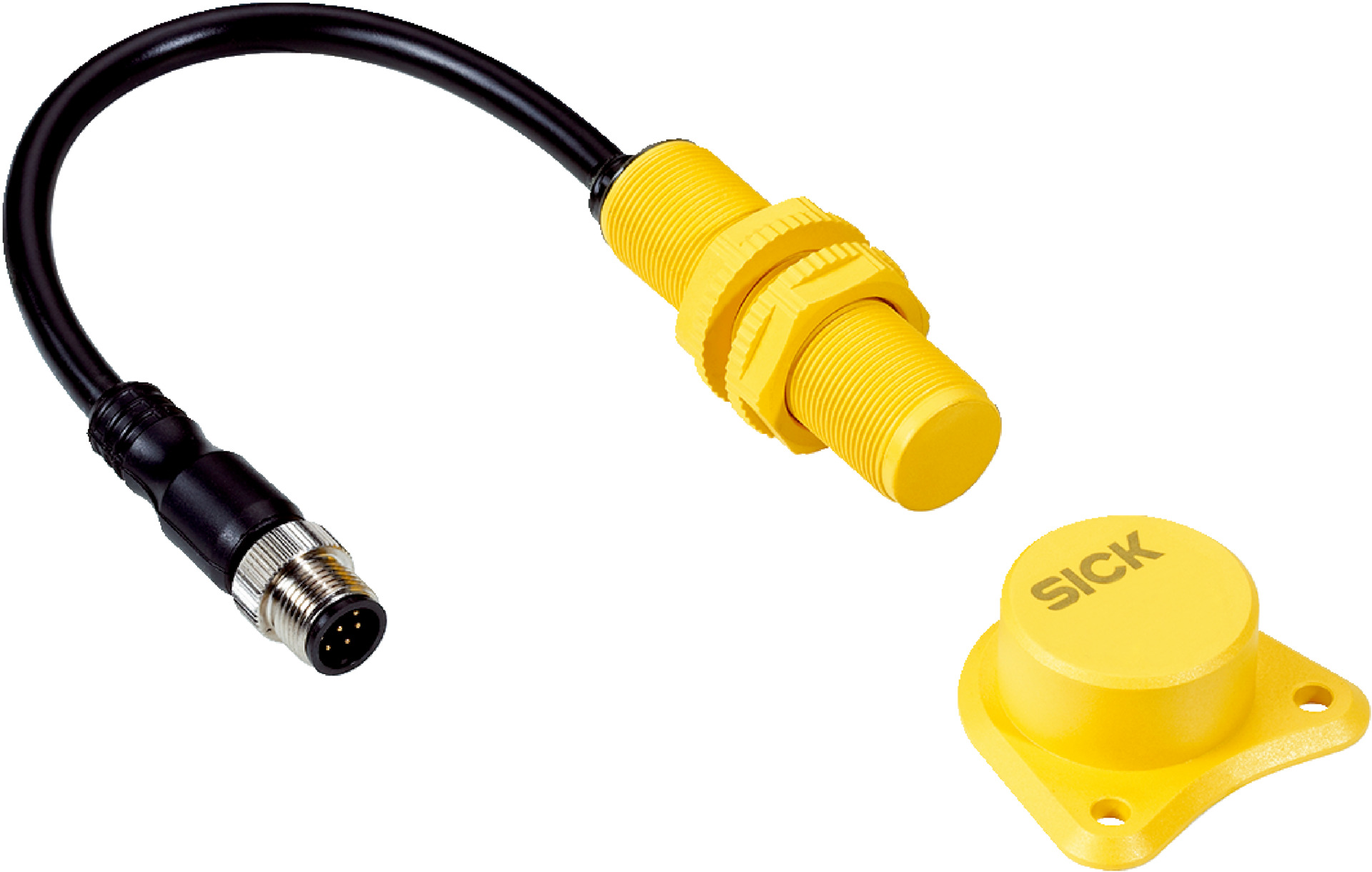

RFID Safety Sensor TR4-SBU01CB | SIL 3 Safety Level | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor TR4-SBU01CB is designed for industrial safety systems, featuring a SIL 3 safety integrity level and robust IP67/IP69K protection. With two safe outputs and a uniquely coded actuator, it ensures reliable machine safety monitoring and control, making it ideal for automation systems that demand high safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 25 mm
- Assured switch off distance (Sar): 35 mm
- Actuation directions: 5
- Coding: Uniquely coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Supply voltage: 24 V DC (20.4 V DC ... 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Housing material: Valox® DR48
- Protection class: III (EN 50178)
- Enclosure rating: IP67, IP69K
- Operating temperature: -25°C to +70°C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 30mm x 60mm x 18mm
- Weight: 0.1 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Assured switch on distance of 25 mm and switch off distance of 35 mm
- High safety integrity level SIL 3 and Category 4 compliance
- Safe series connection with Flexi Loop and T-connector options
- LED status display for operational feedback
- Robust cylindrical design with Valox® DR48 housing
- Protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards to ensure proper integration and operation.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 50 mA supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SBU01CB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
