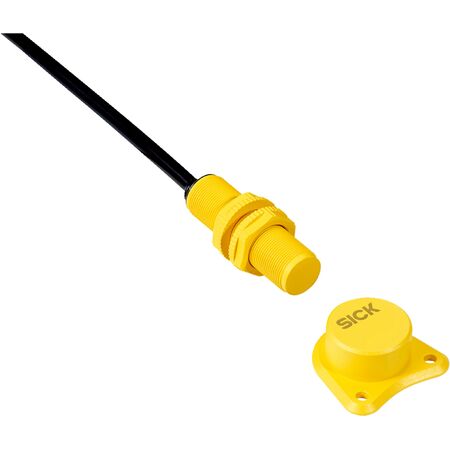

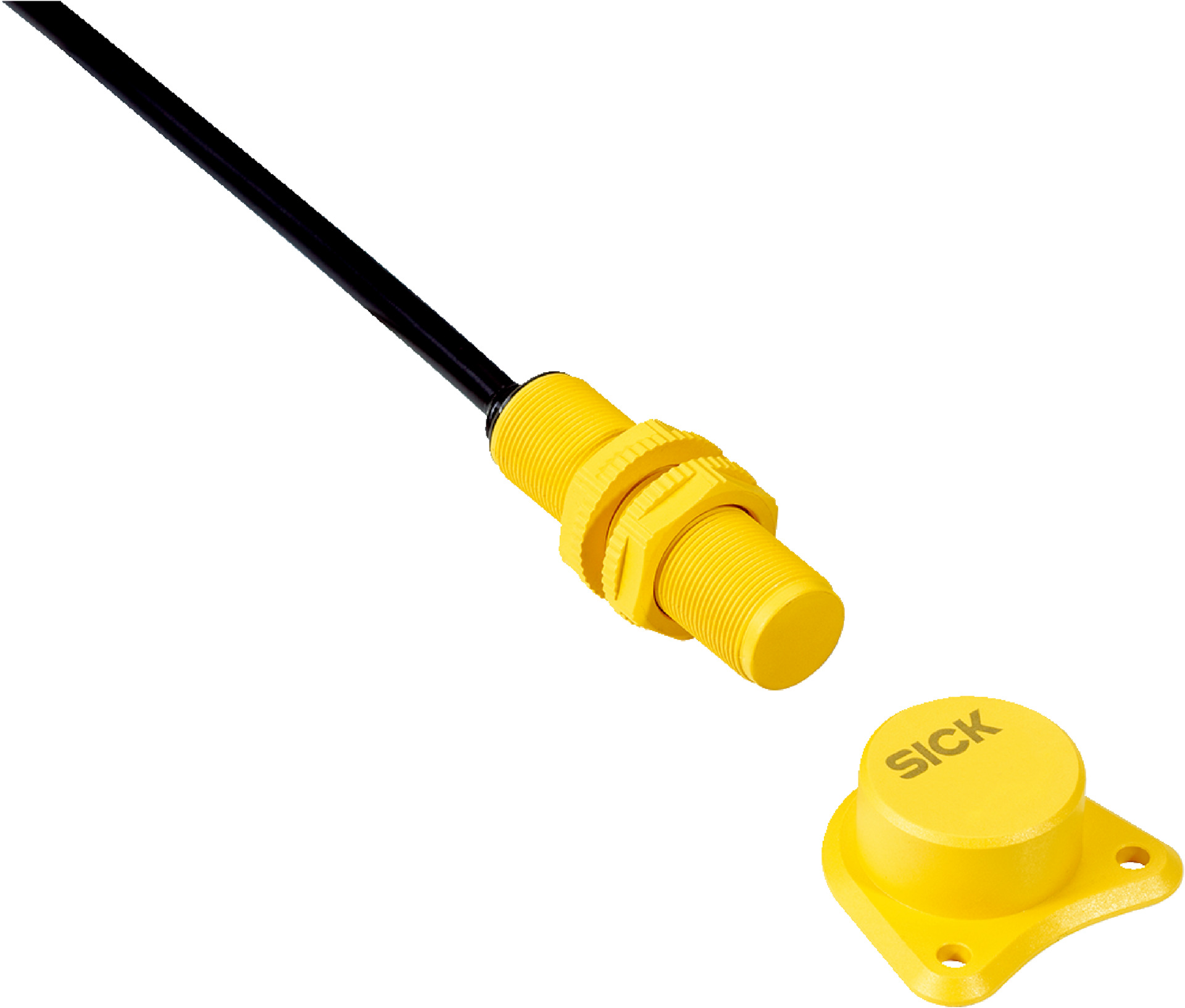

RFID Safety Sensor TR4-SBU10PB | SIL 3 Safety Level | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor TR4-SBU10PB is designed for industrial safety systems, featuring a SIL 3 safety integrity level and robust IP67/IP69K ratings for harsh environments. With two safe outputs and a uniquely coded actuator, it ensures reliable machine safety monitoring and control, making it ideal for automation systems with high safety requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 25 mm
- Assured switch off distance (Sar): 35 mm
- Actuation directions: 5
- Coding: Uniquely coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one OSSD off
- Connection type: Cable, 10 m length, PVC cable, copper conductor
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: >7x cable diameter
- Bend radius moving cable: >14x cable diameter
- IO-Link Safety: OFDT ≤ 100 ms
- Display elements: LEDs with status display
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (20.4 - 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Housing diameter: M18 / M30
- Housing material: Valox® DR48
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.654 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Assured switch on distance of 25 mm and switch off distance of 35 mm
- High safety integrity level SIL 3 and Category 4 compliance
- Robust cylindrical design with Valox® DR48 housing
- IP67 and IP69K rated for harsh environments
- LED status display for operational feedback
- Long cable length support up to 200 m
- Electrical life of 10 million switching cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TR4-SBU10PB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
