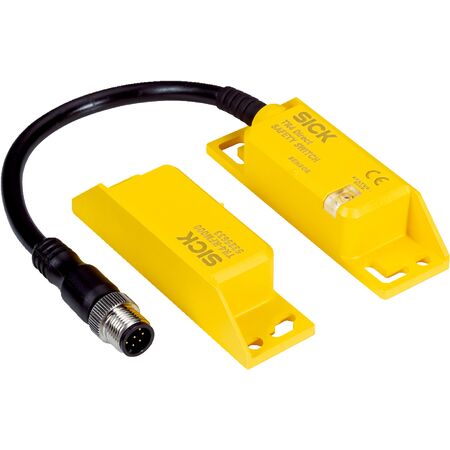

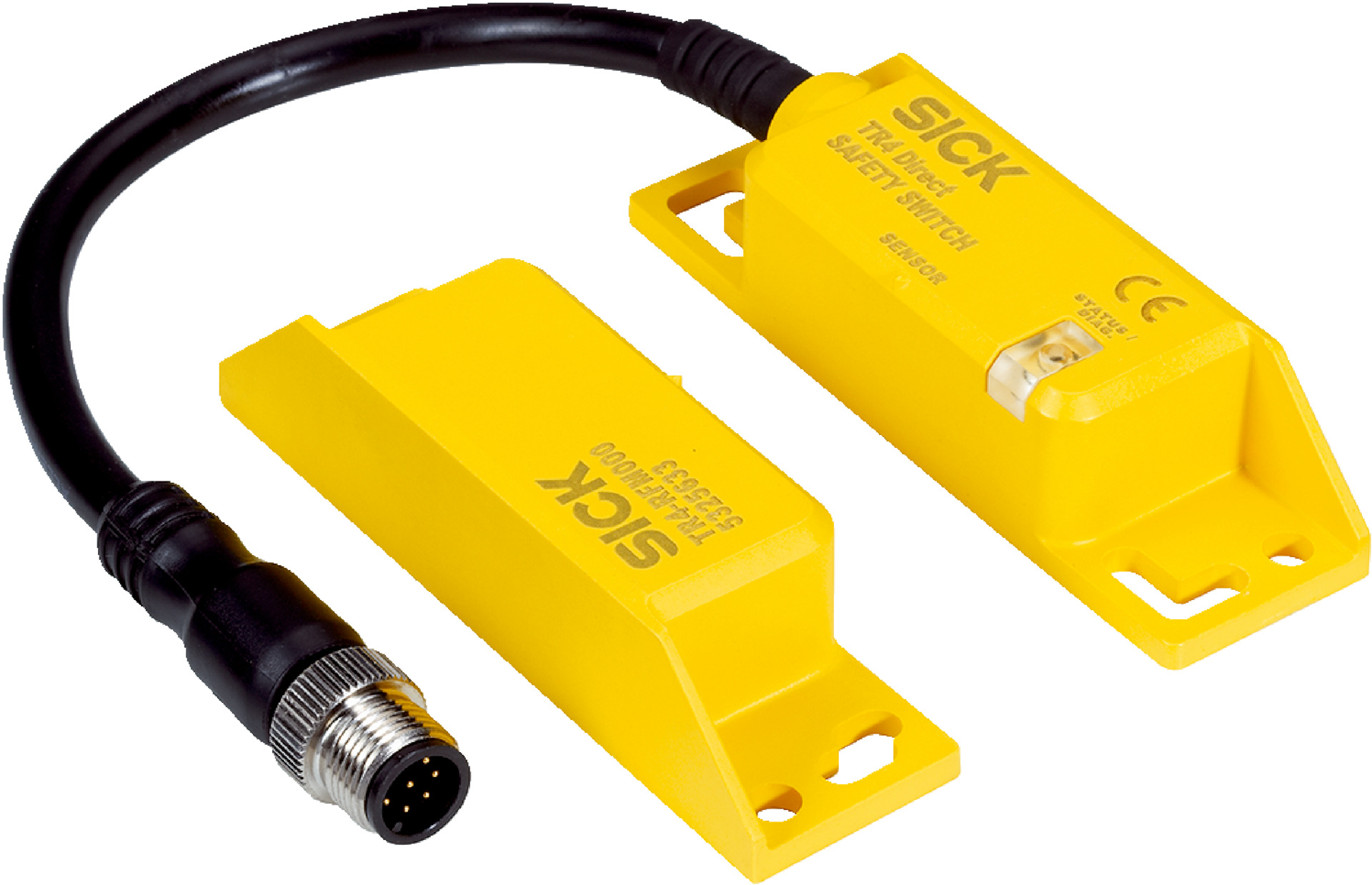

RFID Safety Sensor TR4-SEM01CB SIL 3 & Category 4 Compliance IP67 & IP69K Protection SICK
The RFID Safety Sensor TR4-SEM01CB is designed for industrial safety monitoring, featuring two safe outputs with assured switch on and off distances of 15 mm and 25
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Long connecting cable max: ≤ 200 m
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- IO-Link Safety OFDT: ≤ 100 ms
- Display elements: LEDs with status display
- Protection class: III (EN 50178)
- Classification cULus: Class 2
- Supply voltage: 24 V DC (20.4 V DC ... 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Design: Rectangular
- Housing material: Valox® DR48
- Enclosure rating: IP67 (IEC 60529), IP69K (ISO 20653)
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.112 kg
Key Features
- Sensor with actuator using RFID principle
- Two safe outputs with assured switch on distance of 15 mm and switch off distance of 25 mm
- Universally coded with boundary area indication
- Safety integrity level SIL 3 and Category 4 compliance
- Safe series connection with Flexi Loop and T-connector
- LED status display for operational feedback
- Robust rectangular design with Valox® DR48 housing
- Protection class IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor systems and electrical standards to ensure compliance and optimal safety.
Applications
- Industrial safety monitoring
- Machine safety systems
- Automation and control systems requiring RFID safety sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 50 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SEM01CB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
