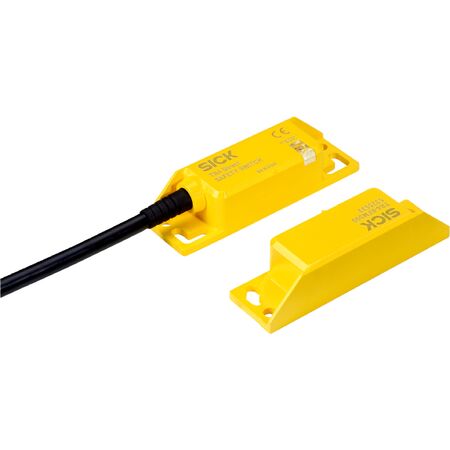

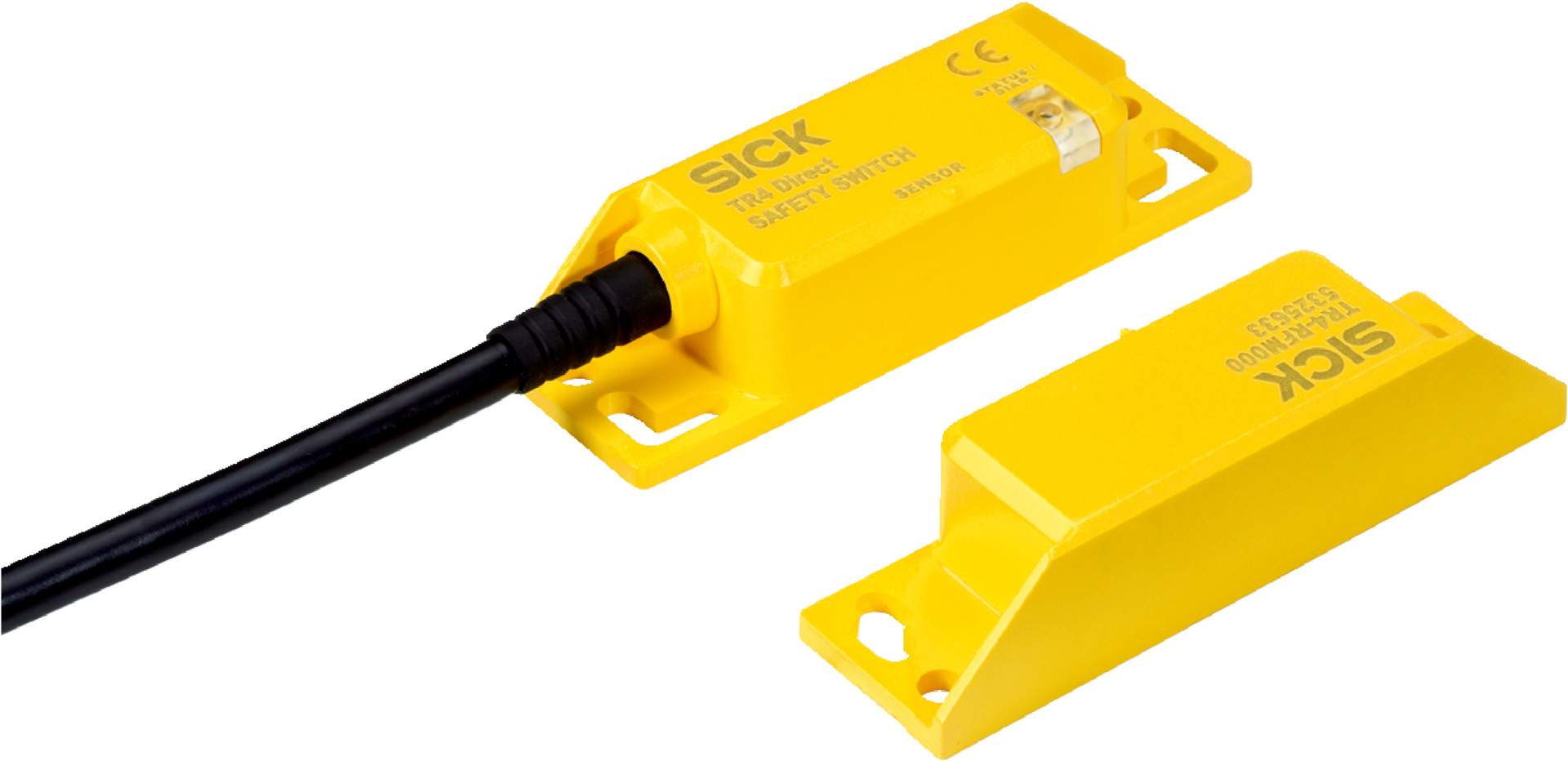

RFID Safety Sensor TR4-SEM10PB | SIL 3 & Category 4 Compliance | IP67/IP69K Rated | by SICK
The RFID Safety Sensor TR4-SEM10PB is designed for industrial safety systems, featuring two safe outputs and a robust design for reliable actuator sensing. With a high safety integrity level of SIL 3 and IP67/IP69K rating, it’s perfect for machine safety monitoring and automation applications, ensuring optimal performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance Sao: 15 mm
- Assured switch off distance Sar: 25 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Cable, 10 m length, PVC cable material, copper conductor
- Cable diameter: 6.5 mm, Conductor cross section: 0.25 mm²
- Bend radius fixed installation: >7x cable diameter, moving cable: >14x cable diameter
- IO-Link Safety with OFDT ≤ 100 ms
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Enclosure rating: IP67 (IEC 60529), IP69K (ISO 20653)
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.687 kg
Key Features
- RFID sensor with actuator system part
- Two safe outputs for enhanced safety
- Universally coded with low actuator coding level
- Boundary area indication included
- Safe series connection possible in control cabinet with diagnostics
- LED status display for operational feedback
- High safety integrity level SIL 3 and Category 4 compliance
- Robust rectangular design with Valox® DR48 housing
- Protection class III and IP67/IP69K rated for harsh environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring with safe outputs
- Automation systems needing reliable actuator sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
- Robust housing protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SEM10PB RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
