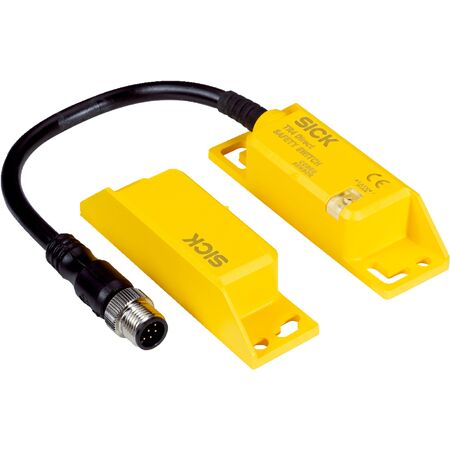

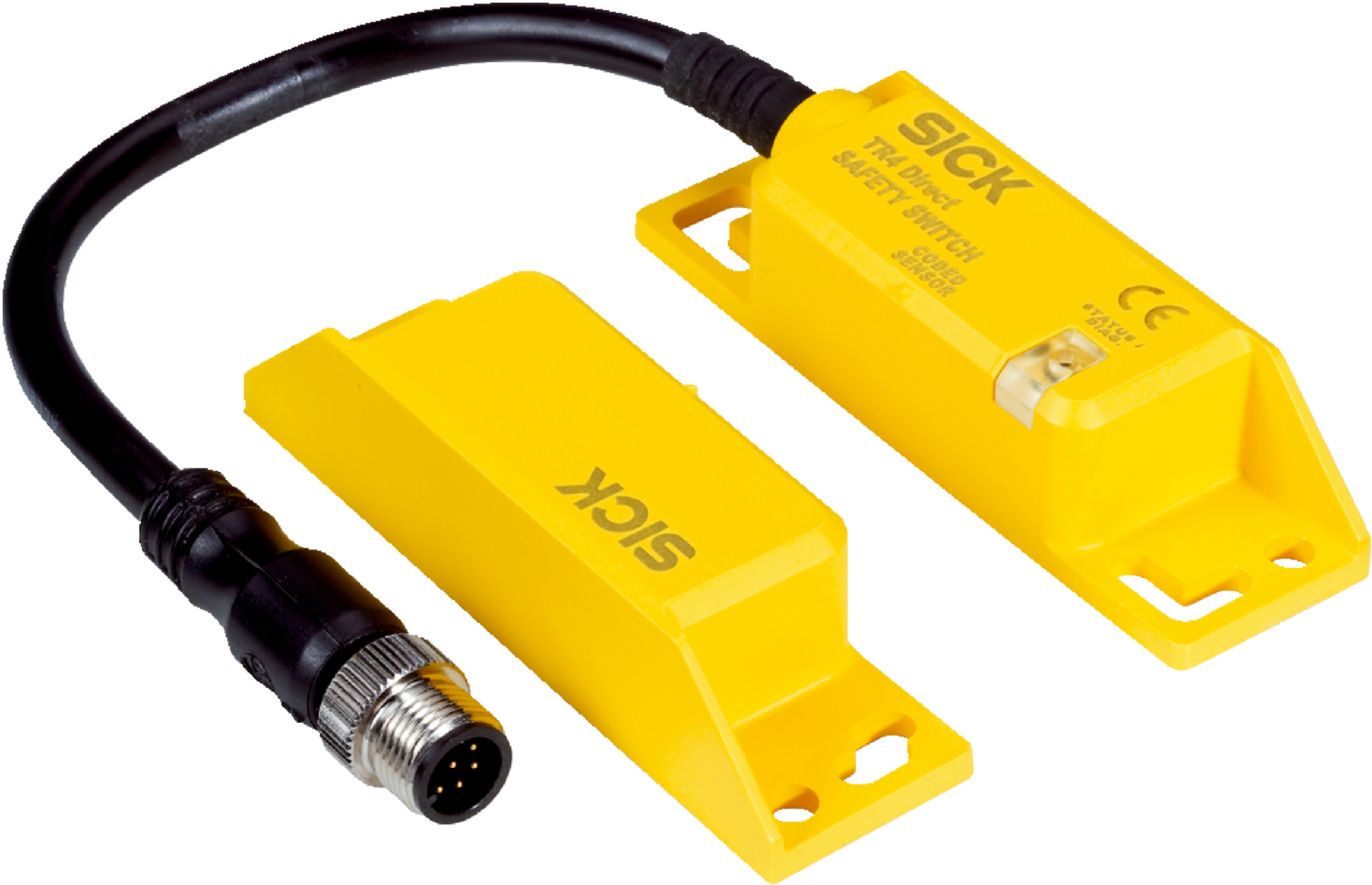

RFID Safety Sensor TR4-SEU01CB | SIL 3 & Category 4 Compliance | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor TR4-SEU01CB is designed for industrial safety monitoring, featuring a SIL 3 safety integrity level and Category 4 compliance. With two safe outputs and an assured switch-on distance of 15 mm, this sensor is perfect for machine safety systems and automation applications. Its robust IP67 and IP69K rated enclosure ensures reliable performance in harsh environments, while the LED status display provides operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one OSSD off
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Long connecting cable max: ≤ 200 m
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- IO-Link Safety OFDT: ≤ 100 ms
- Display elements: LEDs with status display
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (20.4 V DC ... 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Design: Rectangular
- Housing material: Valox® DR48
- Enclosure rating: IP67 (IEC 60529), IP69K (ISO 20653)
- Operating temperature: –25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.112 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- High safety integrity level SIL 3 and Category 4 compliance
- Boundary area indication and high actuator coding level
- IP67 and IP69K rated enclosure for harsh environments
- LED status display for operational feedback
- Safe series connection capability with Flexi Loop and T-connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine safety systems
- Automation and control systems requiring RFID safety sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and high reliability reduce waste and replacement frequency
- Low power consumption (≤ 50 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SEU01CB RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
