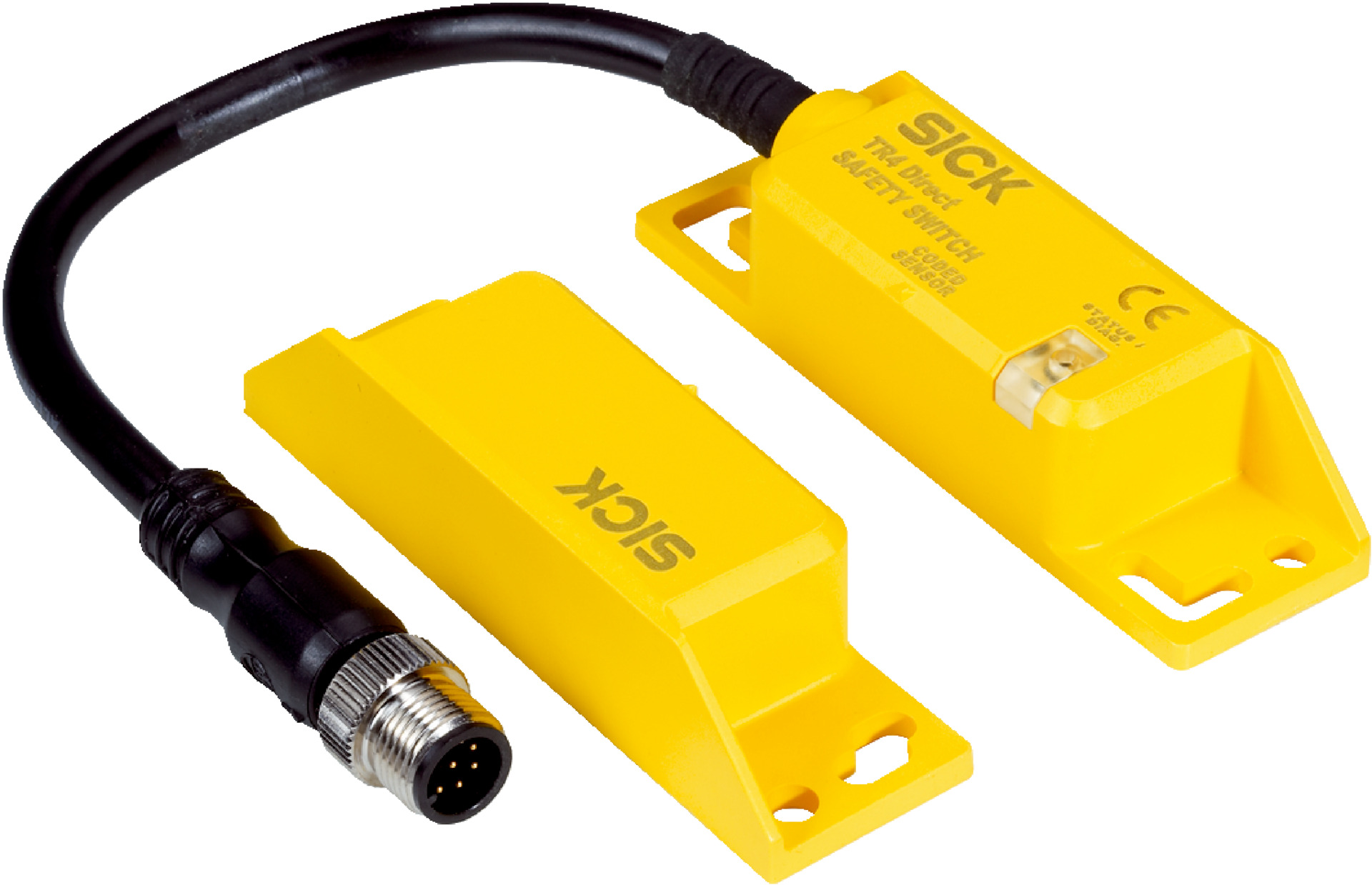

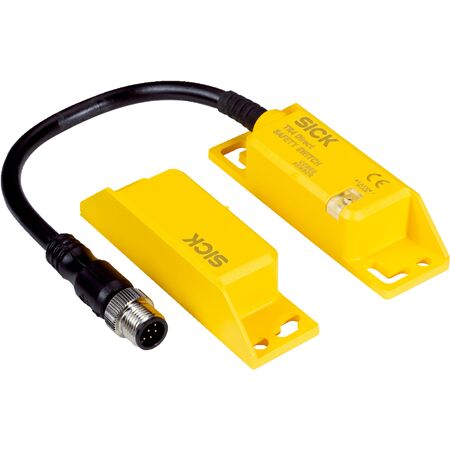

RFID Safety Sensor TR4-SEU02CB | SIL 3 Safety Level | IP67/IP69K Rated | by SICK
The RFID Safety Sensor TR4-SEU02CB is designed for industrial safety applications, featuring a high safety integrity level of SIL 3 and robust IP67/IP69K protection. With two safe outputs and a uniquely coded actuator, it ensures reliable performance in harsh environments, making it ideal for machine safety monitoring and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- Boundary area indication: Yes
- Coding: Uniquely coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Classification IEC/EN 60947-5-3: PDF-M
- Safe state on fault: At least one OSSD off
- Safe series connection: With Flexi Loop (with diagnostics)
- Connection type: Cable with plug M12, 5-pin
- Cable length: 0.2 m
- Max long connecting cable: ≤ 200 m
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 7 x cable diameter
- Bend radius moving cable: > 14 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- IO-Link Safety OFDT: ≤ 100 ms
- Display elements: LEDs with status display
- Protection class: III (EN 50178)
- Classification cULus: Class 2
- Supply voltage: 24 V DC (20.4 V DC ... 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Design: Rectangular
- Housing material: Valox® DR48
- Enclosure rating: IP67 (IEC 60529), IP69K (ISO 20653)
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.112 kg
Key Features
- RFID sensor with actuator system
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- High safety integrity level SIL 3 (IEC 61508)
- Category 4 safety (EN ISO 13849) with Performance Level e
- Uniquely coded actuator with high coding level
- Safe series connection with Flexi Loop and diagnostics
- LED status display for operational feedback
- Robust rectangular design with Valox® DR48 housing
- Protection class III and IP67/IP69K rated for harsh environments
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SEU02CB RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high integrity safety sensors.
